Specification
| Name | welding mask |
| model | G-1 |
| weight | 500g |
| view size | 100x80mm |
| material | PP |
| color | black |

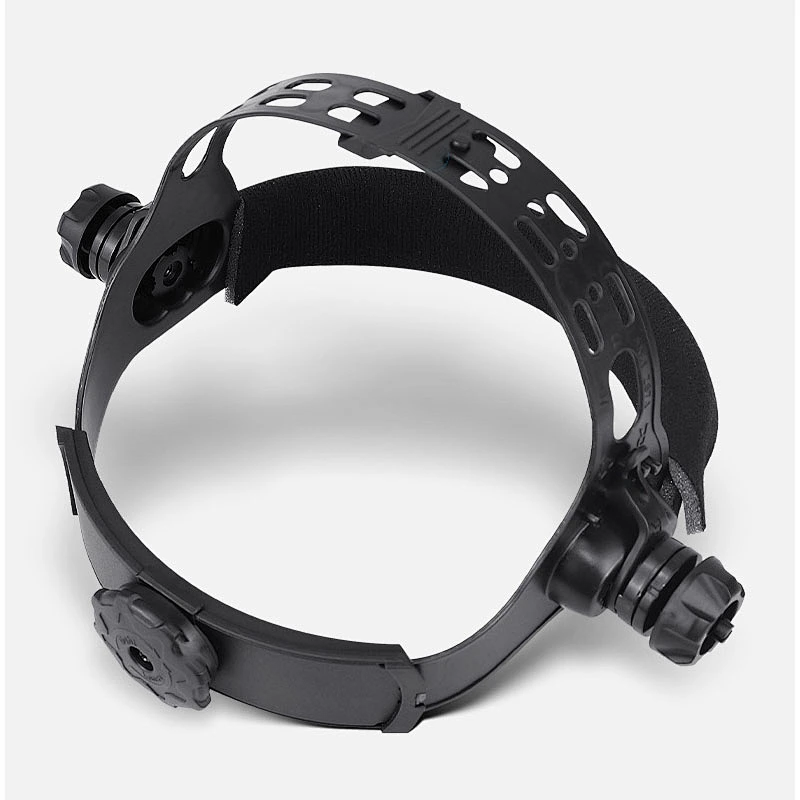

| headgear | Adjustable size, suitable for any head shape |
| use | Welding work, protect eyes and face |
Product Description

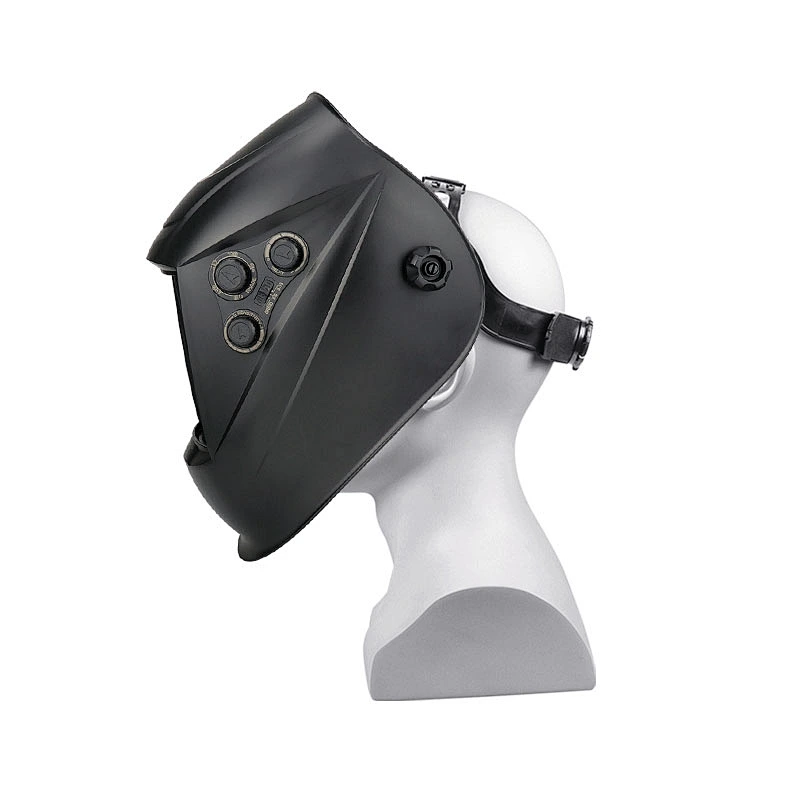

Welding protective face shield welder mask welding helmets
1.PP material is strong enough to impact resistant.
2.Anti-UV and IR lenses adopted can protect user's eyes soundly
3.Adjustable design to fit everyone's requirements.
4.OEM and ODM
5.Top quality and continuous wear.
6.Color can change according your demand.
7.Welding helmets provides excellent electrical insulation
8.Adapt for simple welding use.

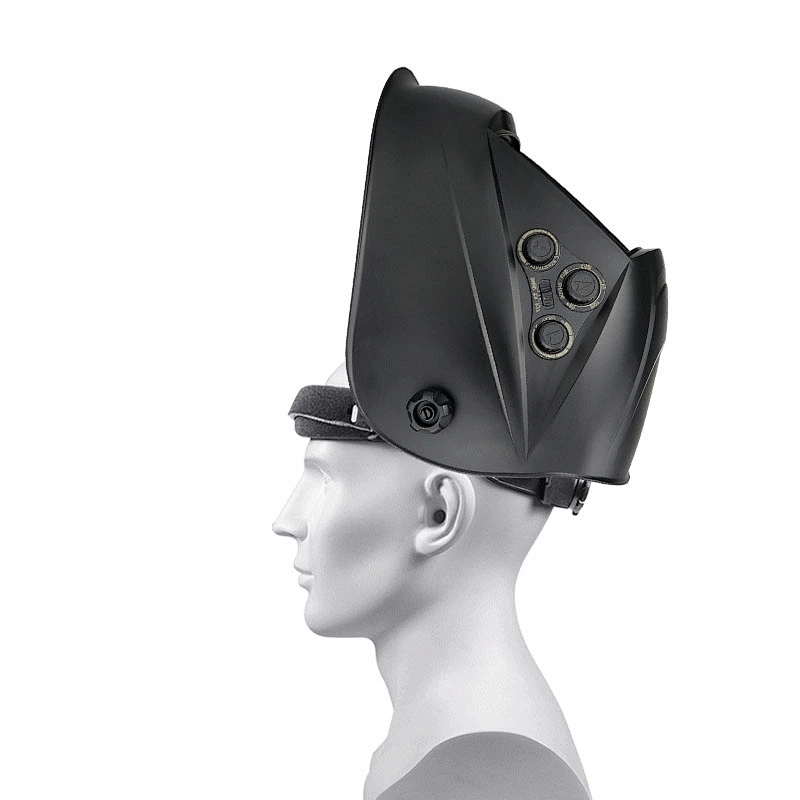

9.Flip up front welding helmet design, easy to change the glass.
• Battery powered with solar-assist for long life(up to 5,000 hrs.) with changeable batteries required.
• Features auto-off circuitry at 15-20 min.And low battery indicator.
• Four independent arc sensors.
• Filter darkening reaction is 1/2,5000 sec.
• Ideal for MMA,MIG, TIG, PAC,PAW, CAC-A, OFW,OC.

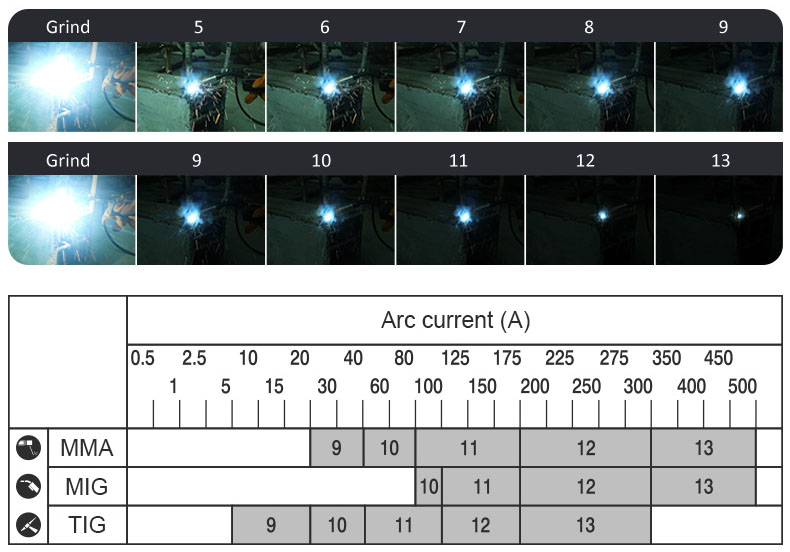

• Variable shade 5-9/9-13,variable sensitivity and delay controls.
• Light weight, well-balanced and advanced desgin fully adjustable headgear.
• Includes replacement cover lenses.

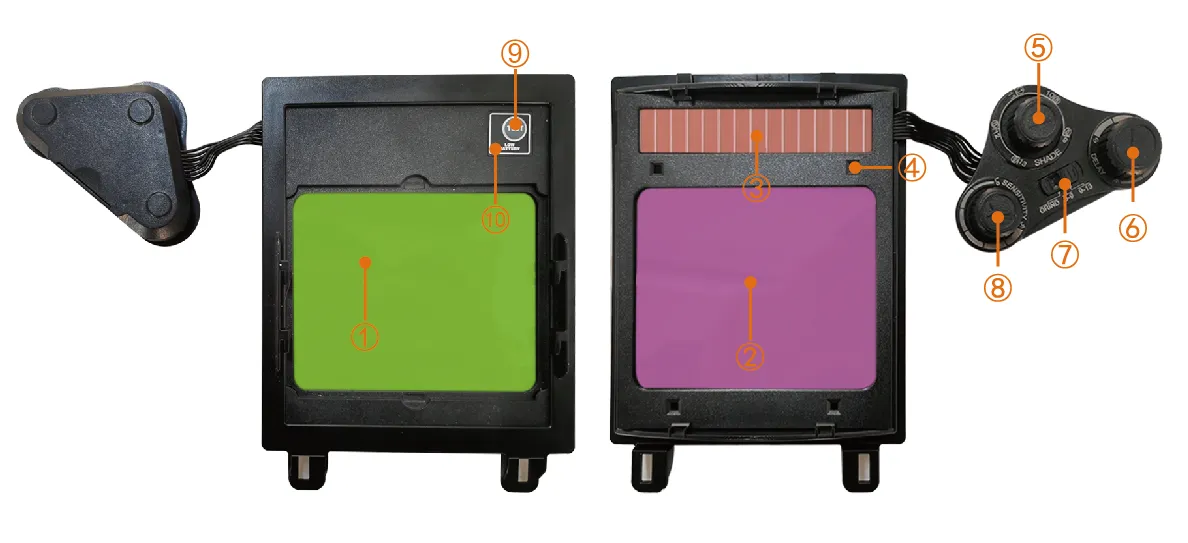

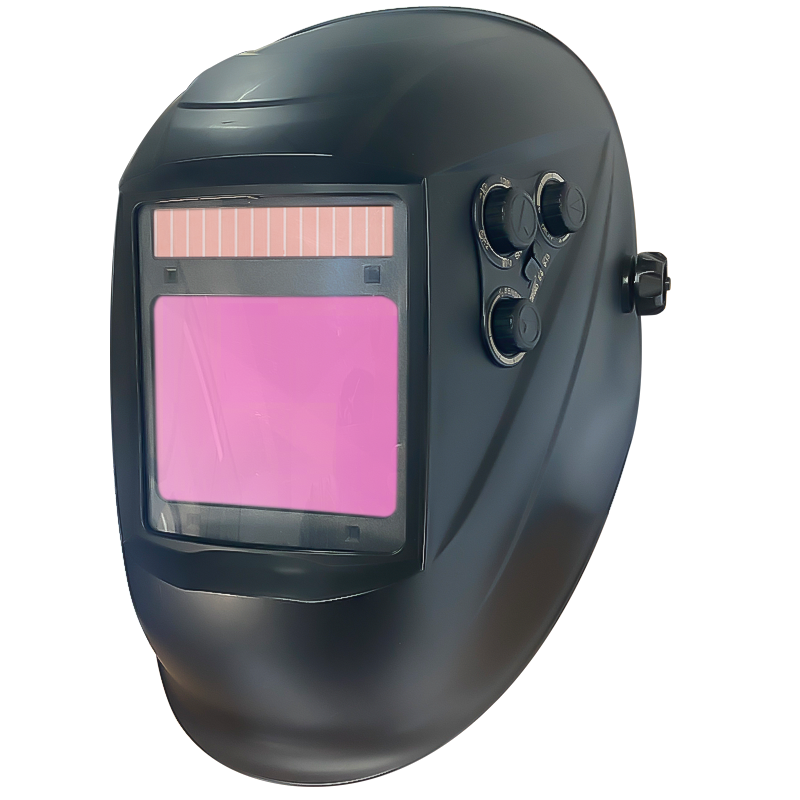

Auto-Darken-Filter
| 1.LCD | 2.UV/IR Filter | 3.Solar cell | 4.Sensor | 5.Shade |
| 6.Delay | 7.Grind | 8.Sensitivity | 9.Test | 10.Low battery |
| Parameters | ADF-910N |
| Optical Class | 1/1/1/2 |
| Viewing Area | 100x80mm |
| Cartridge Size | 114x133x10mm |
| Arc Sensor | 4 |
| Light State | DIN 4 |
| Dark State | Variable shade,5-8.5/9~13.5 |
| Shade Control | Internal,Variable |
| Power On/Off | Fully Automatic |
| Sensitivity Control | Low-High, by infinitely dial knob |
| UV/IR Protection | DIN 16 |
| Power Supply | Solar cell. Battery change required 1xCR2450 lithium battery |
| Switching Time | 1/25000S,from Light to Dark |
| Dark to Light | 0.1-2.0S by infinitely dial knob |
| Low Amperage TIG | 5amps(DC),5amps(AC), |
| Grinding Function | YES |
| Low Volume Alarm | YES |
| ADF self-check | YES |
| Operating Tep | -5℃~+55℃ |
| Storing Tep | -20℃~+70℃ |
| Warranty | 1 Year |
| Weight | 530g |
| Packing Size | 34x23x26cm |
Packing & Delivery
4pcs welding helmet in one carton
GW/NW: 5kgs/2kgs
Measure: 54*50*32cm
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
