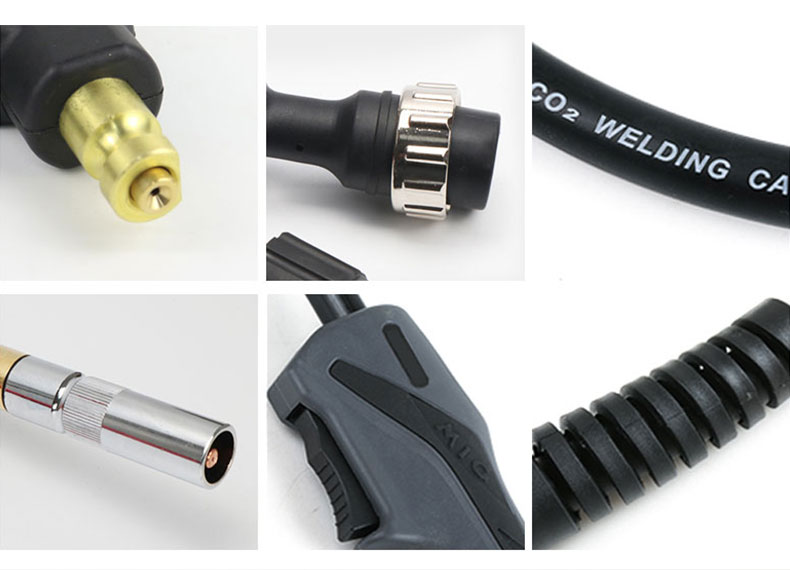

Specification

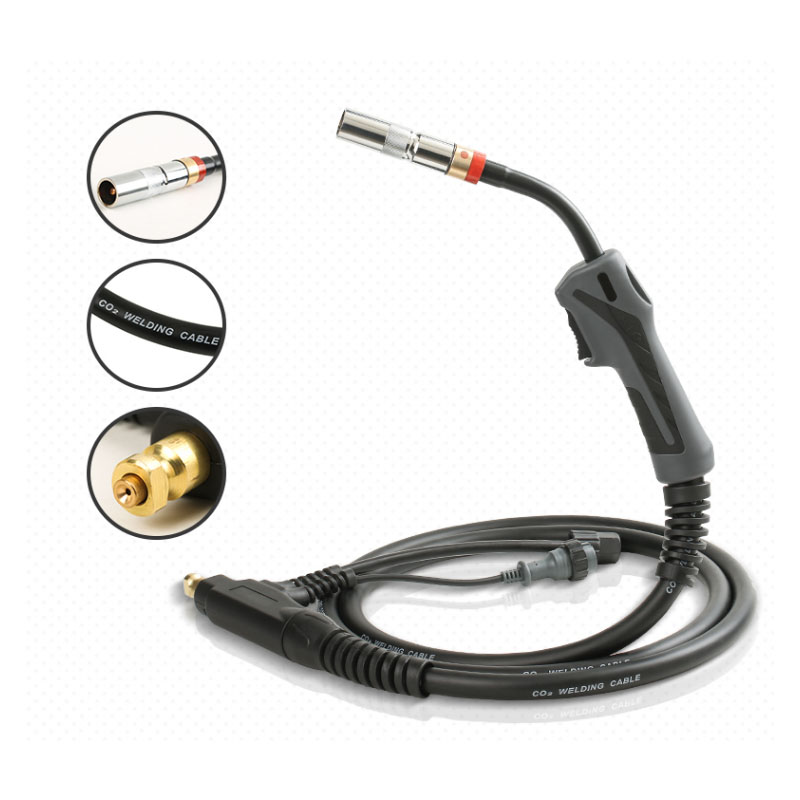

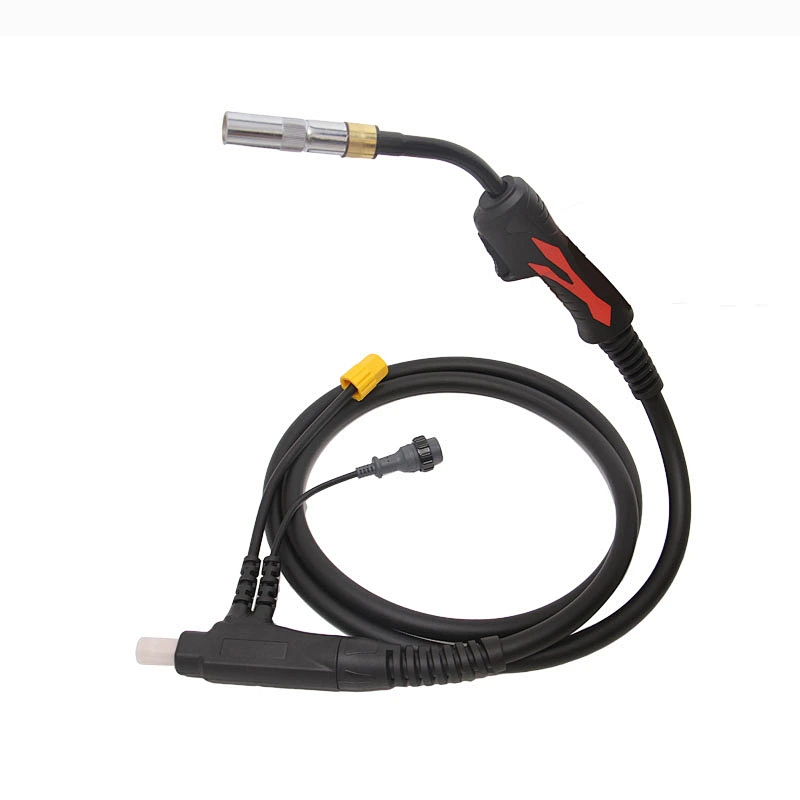

| Item | 500A CO2 Panasonic torch mig series air cooled welding gun |
| Rating | 500A CO2/ 450A Mixed Gas, Duty Cycle 60% |
| Wire Diameter | 1.2-1.6mm |
| Welding Torch Cable | 3m/4m/5m etc |
| Rear Connector | onnector Panasonic type |
| Packing | 1set/box neutral packing, 5sets/Carton Box |

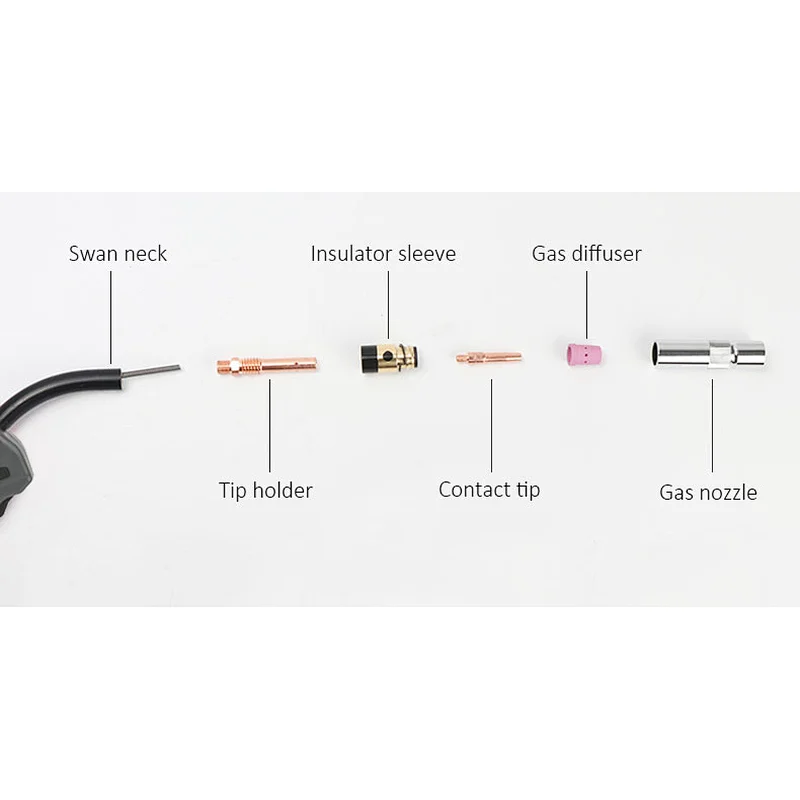

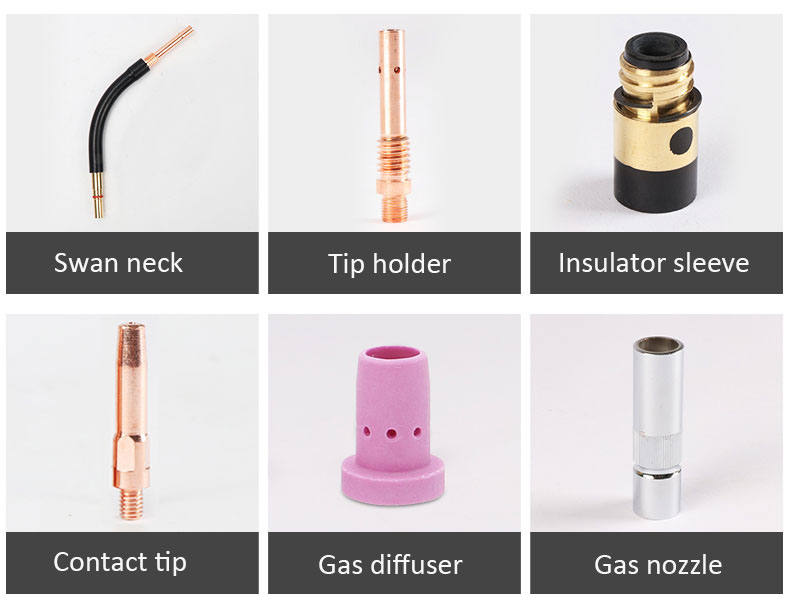

Product Description
Specification

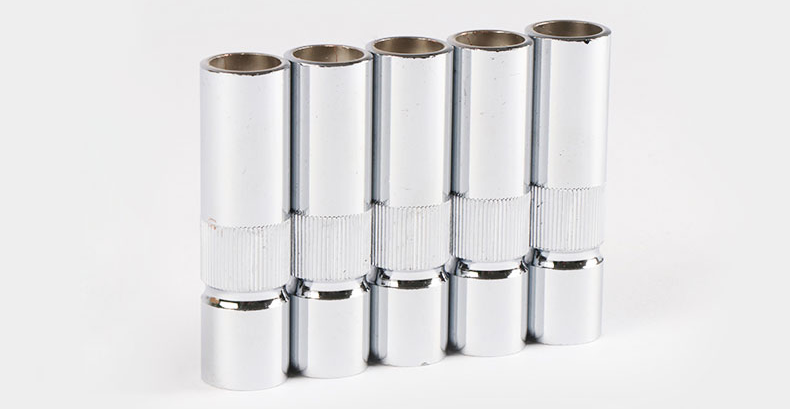

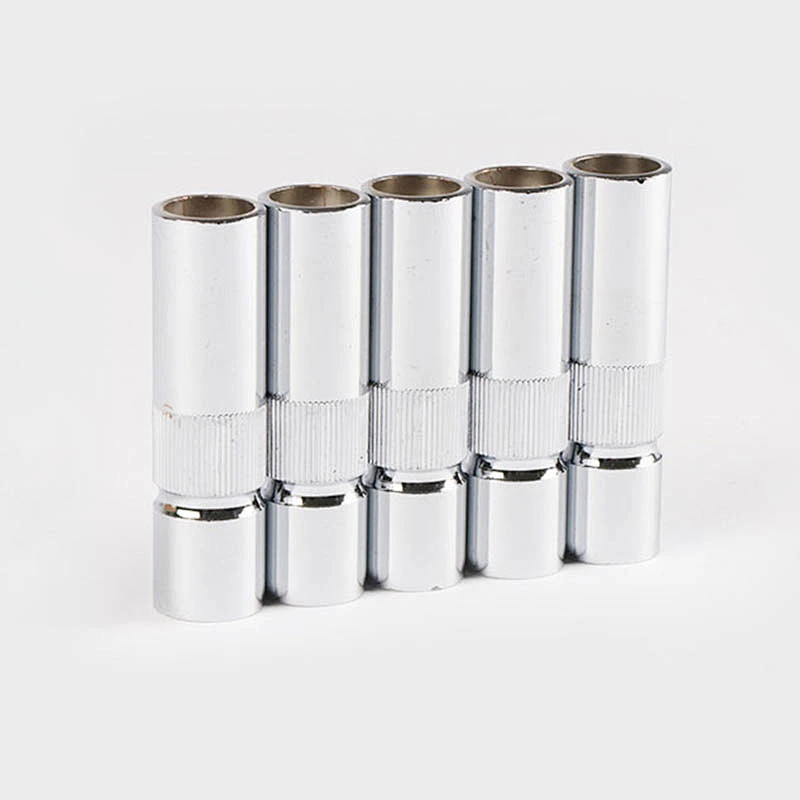

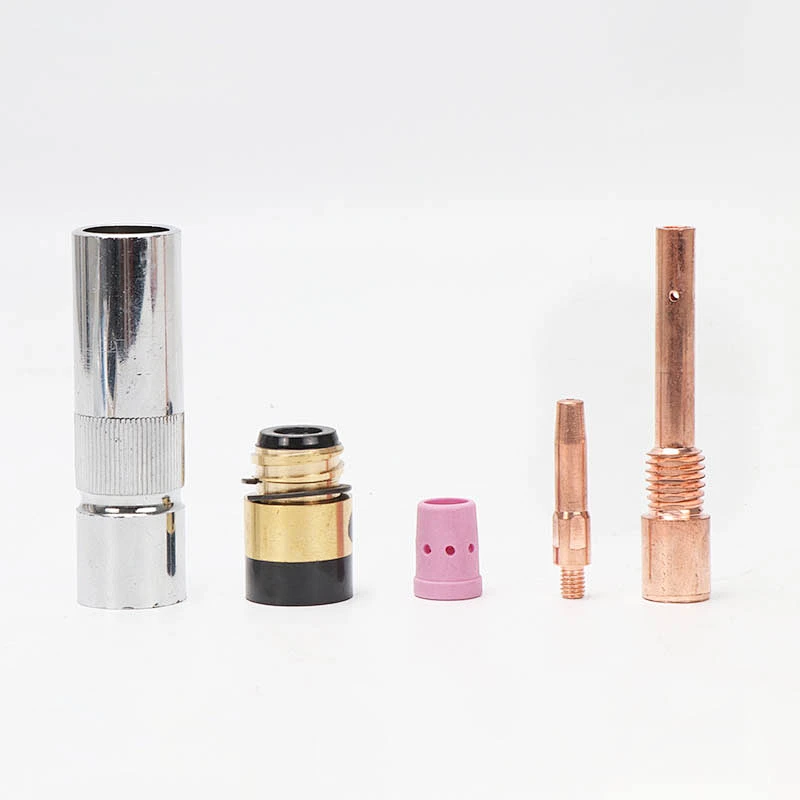

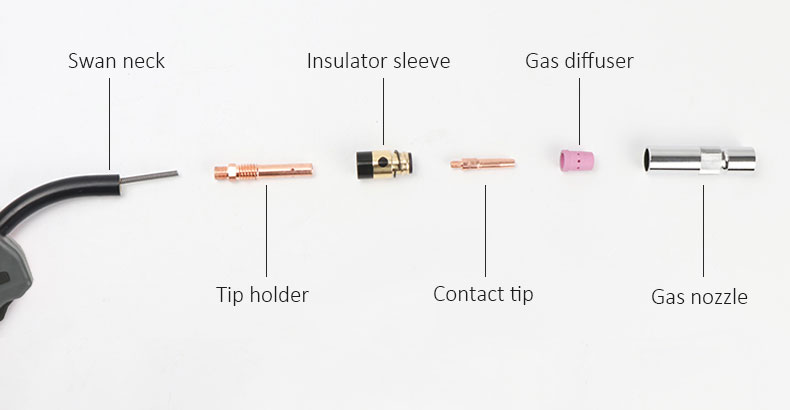

 | Product name | Welding Gas nozzle |
| Material | Copper | |
| Thickness | 2.5mm/3.0mm | |
| Model | Panasonic 500A | |
| Length | 84mm |

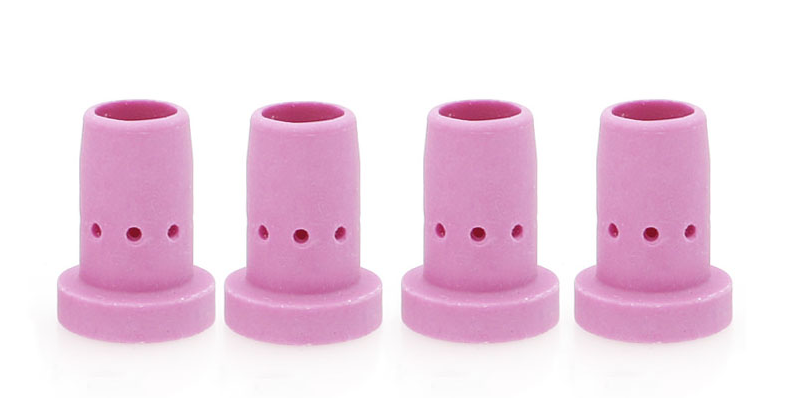

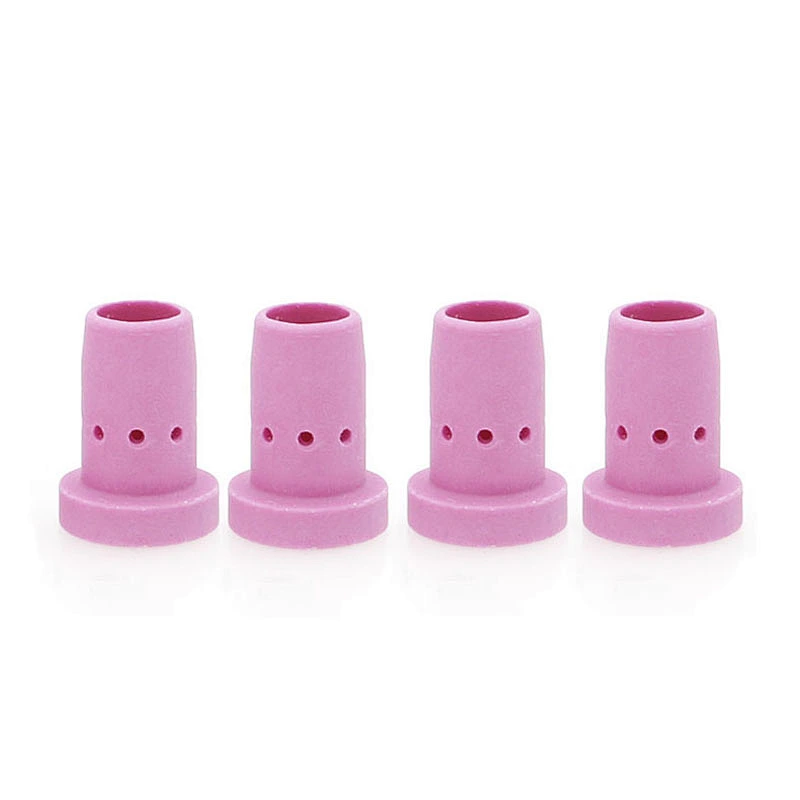

 | Product name | Welding Gas diffuser |
| Material | Ceramic | |
| Model | Panasonic 500A | |
| Length | 26mm | |

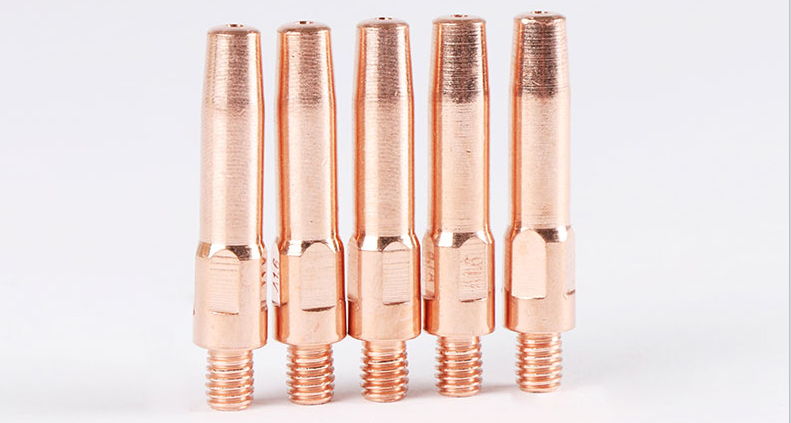

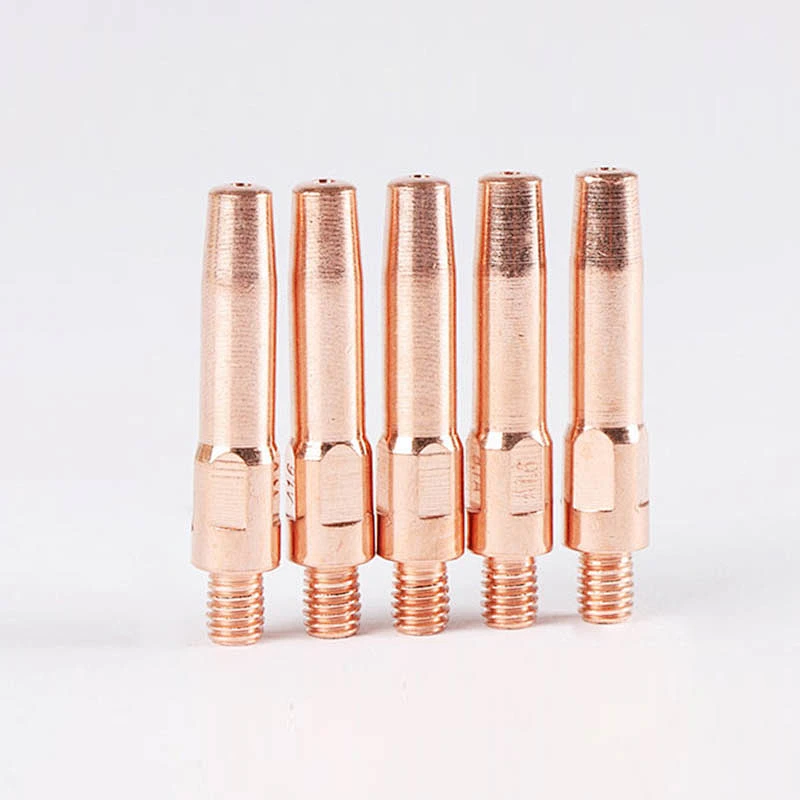

 | Product name | Welding Contact tip |
| Material | Copper | |
| Bore diameter | 0.8/1.0/1.2/1.4/1.6 | |
| Model | Panasonic 500A | |
| Thread | M6*40/M6*45 | |
| Grade | 6.5/8.8 |

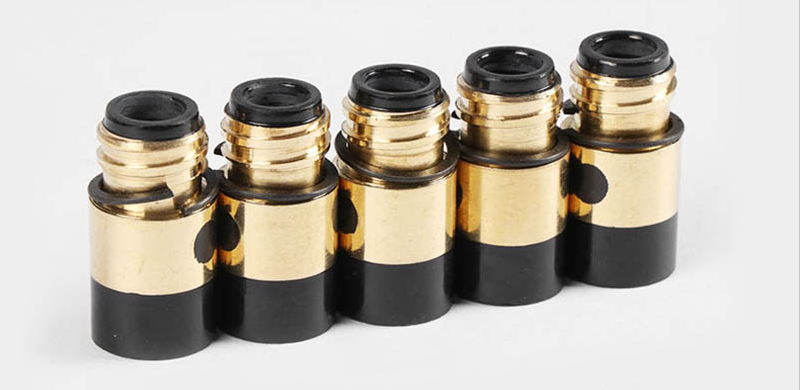

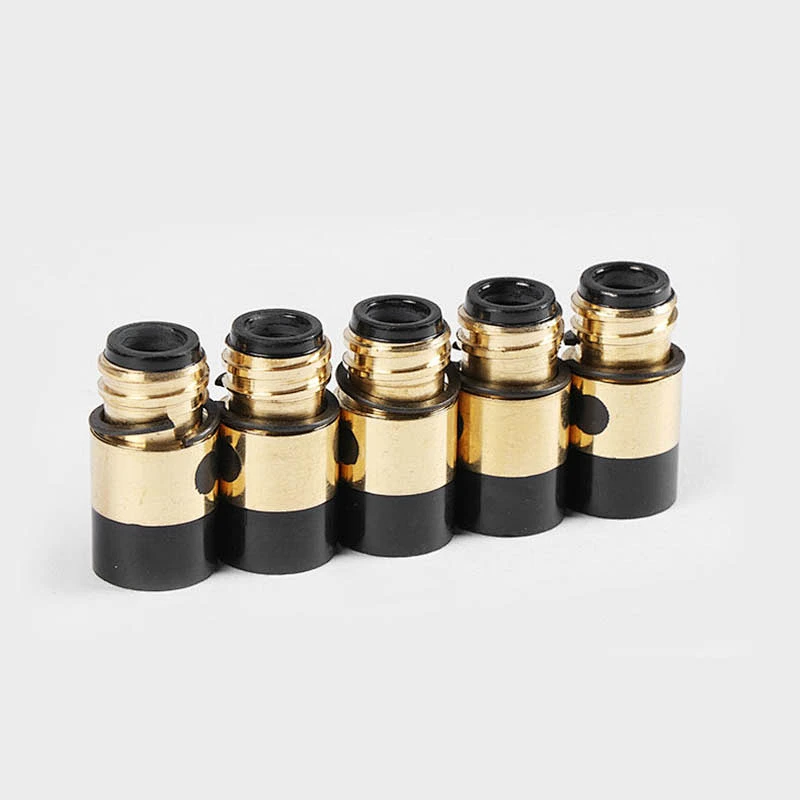

 | Product name | Welding Insulator sleeve |
| Material | Bakelite + brass | |
| Model | Panasonic 500A | |
| Length | 38mm; Φ 25mm | |
| Grade | Copper core/Bakelite core |

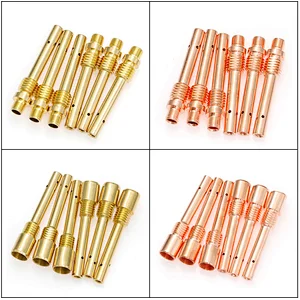

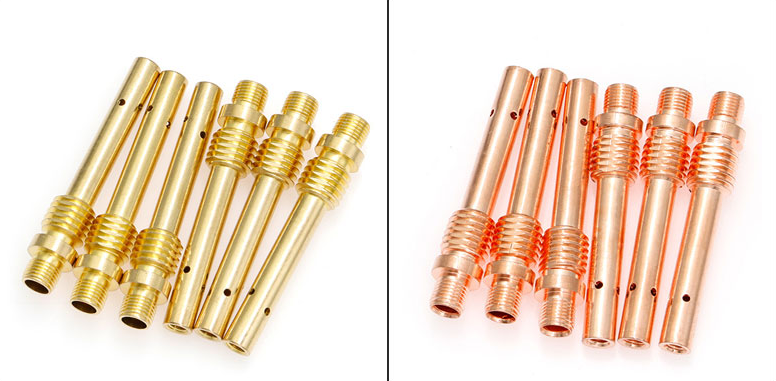

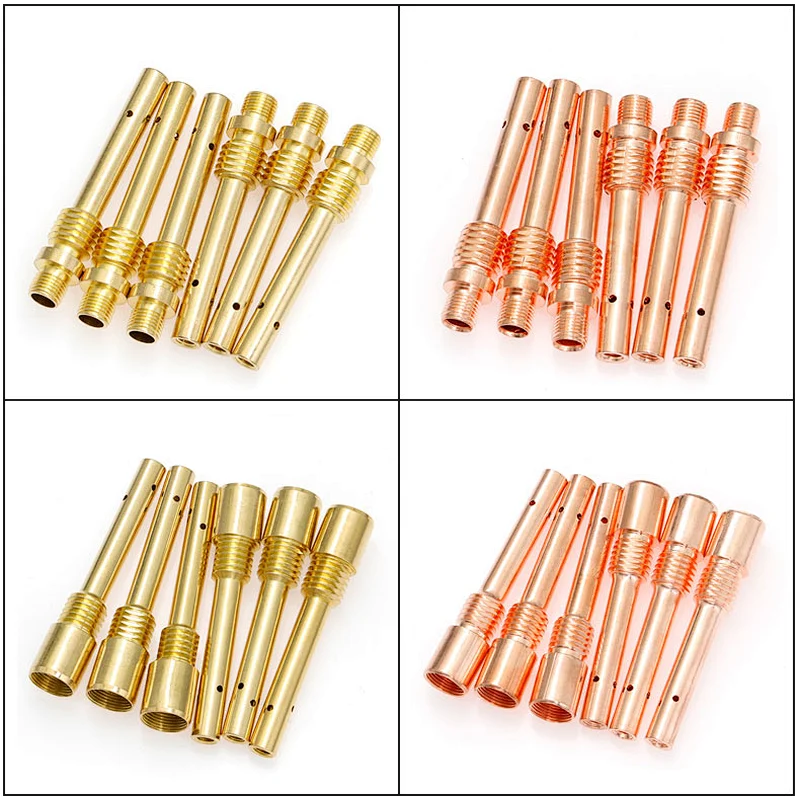

 | Product name | Welding Tip holder |
| Material | Brass/Copper | |
| Thread | M10*M6; External thread | |
| Model | Panasonic 500A | |
| Length | 75mm |

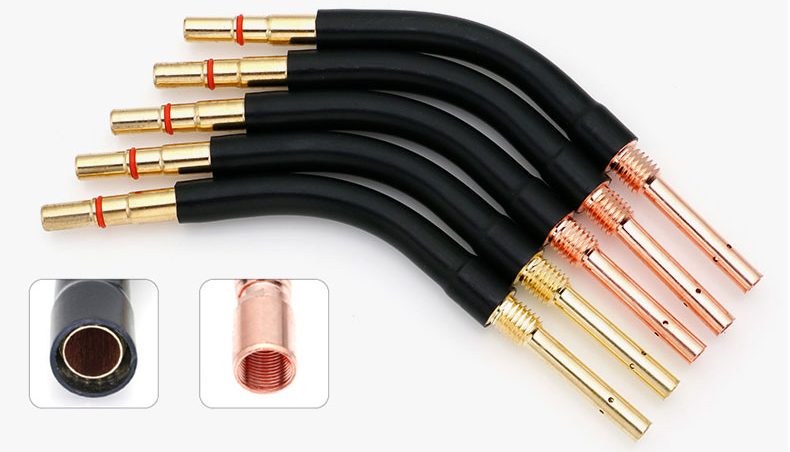

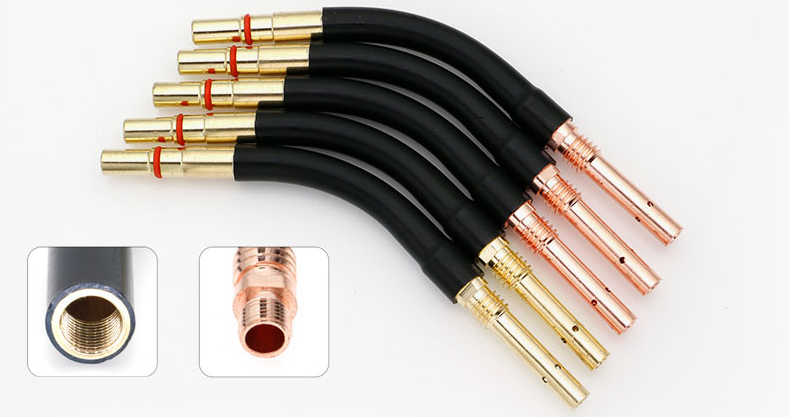

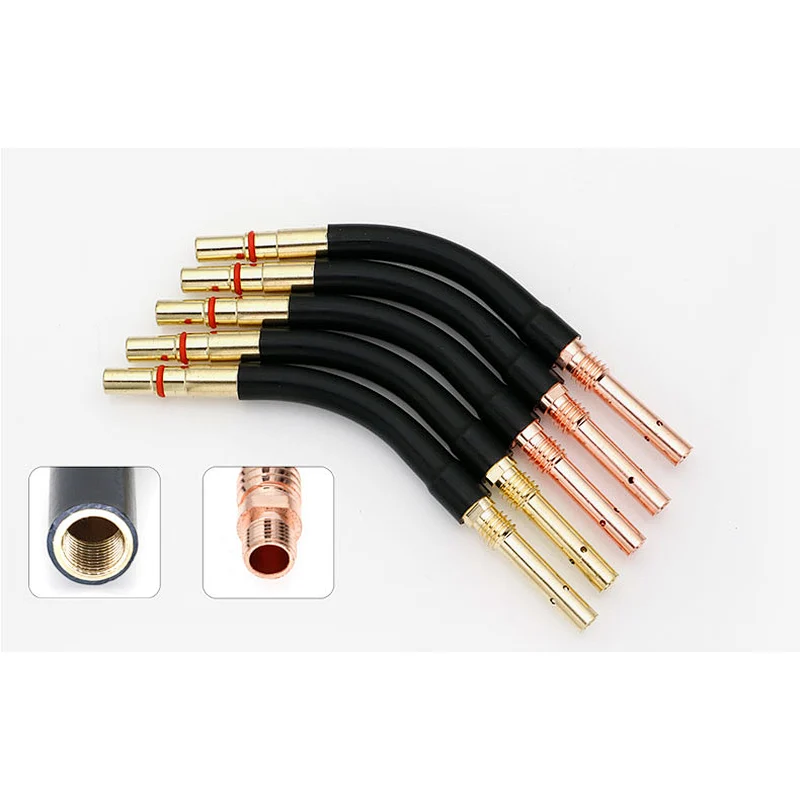

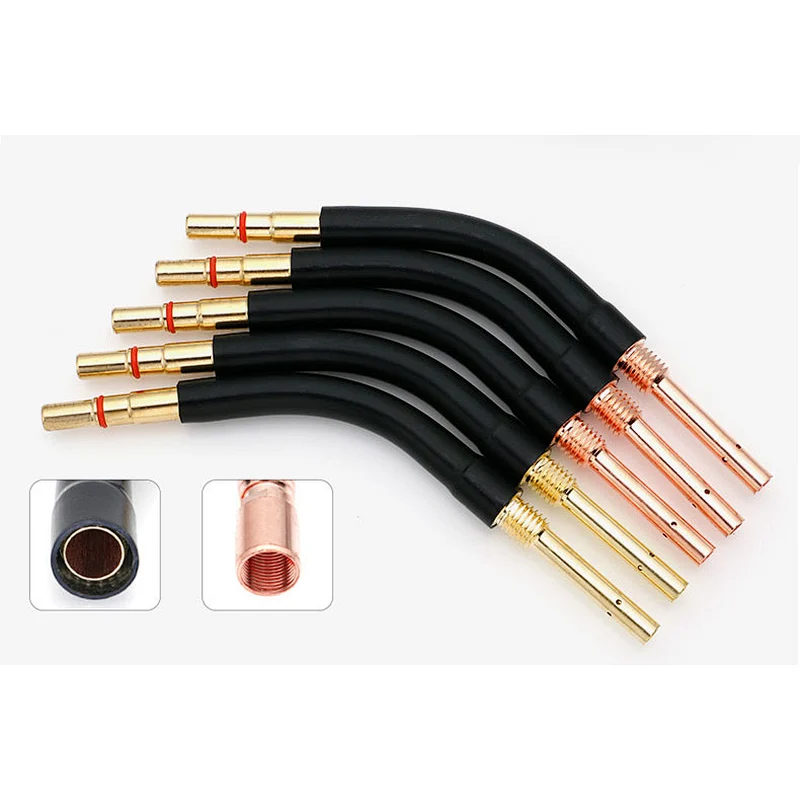

 | Product name | Welding Swan neck |
| Material | Brass | |
| Thread | Internal thread | |
| Model | Panasonic 500A | |
| Length | 225mm |

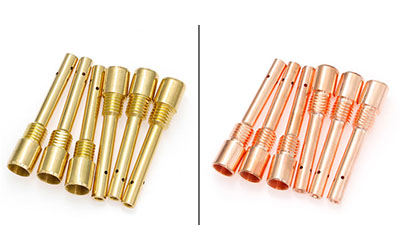

 | Product name | Welding Tip holder |
| Material | Brass/Copper | |
| Thread | M10*M6; Internal thread | |
| Model | Panasonic 500A | |
| Length | 84mm |
 | Product name | Welding Swan neck |
| Material | Brass | |
| Thread | External thread | |
| Model | Panasonic 500A | |
| Length | 225mm |

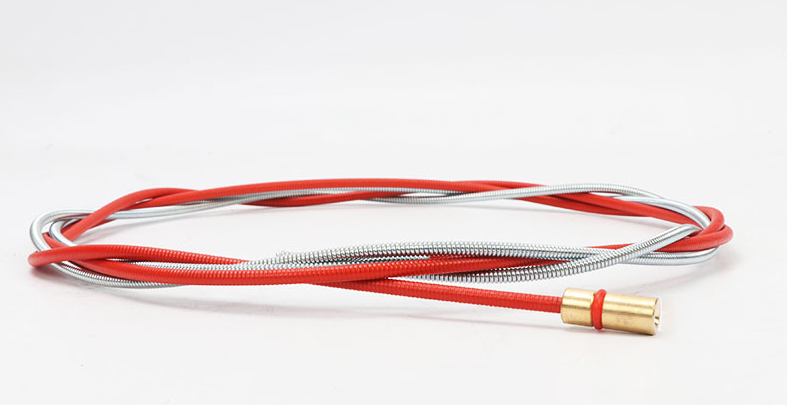

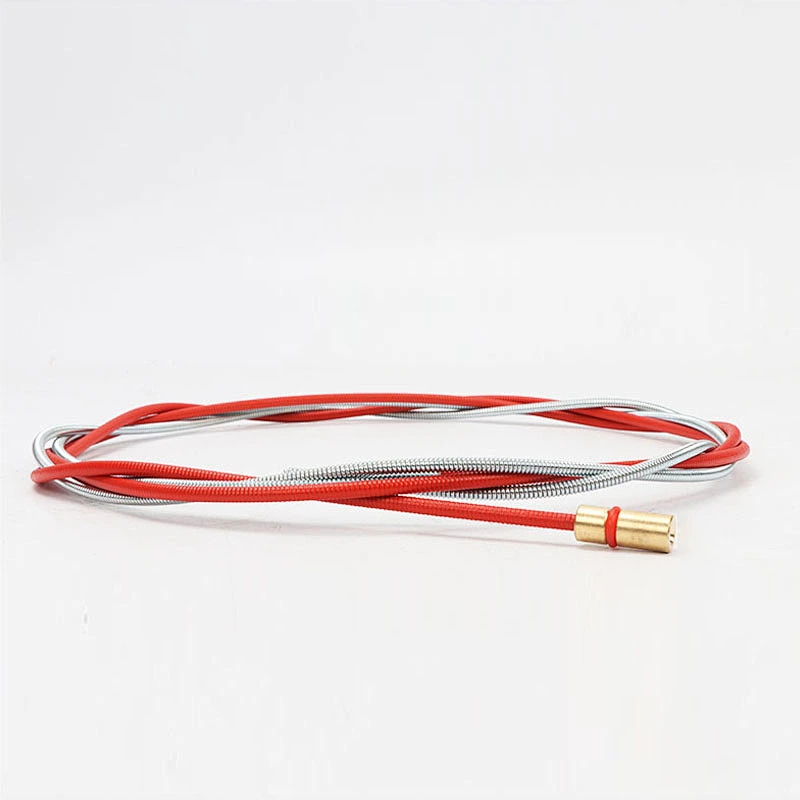

 | Product name | Torch Welding Liner |
| Material | Steel liner | |
| Liner diameter | 2.0mm | |
| Model | Panasonic 500A | |
| Length | 2m/3m/4m etc |
