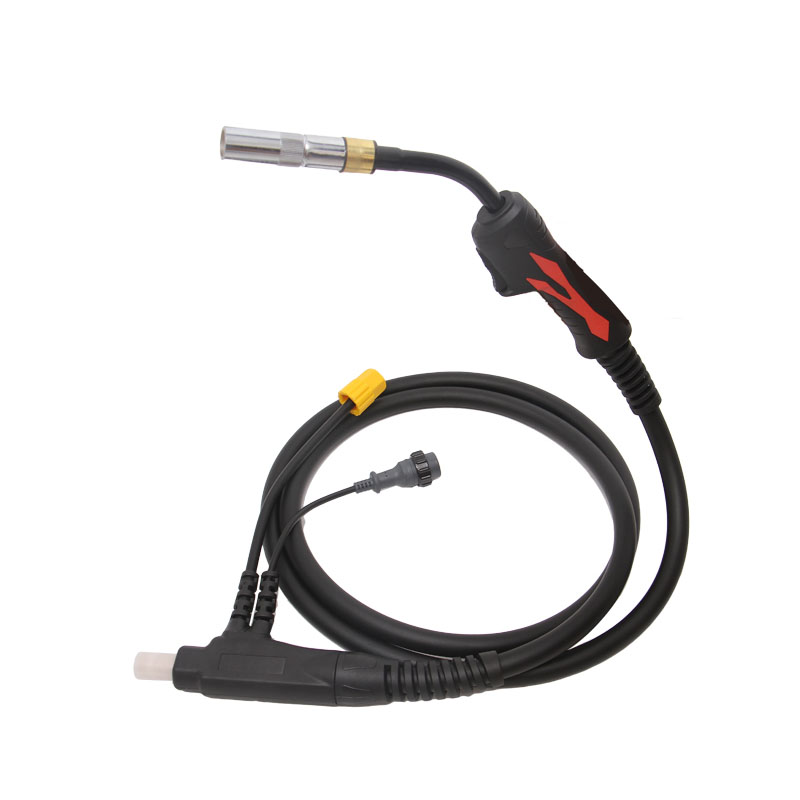

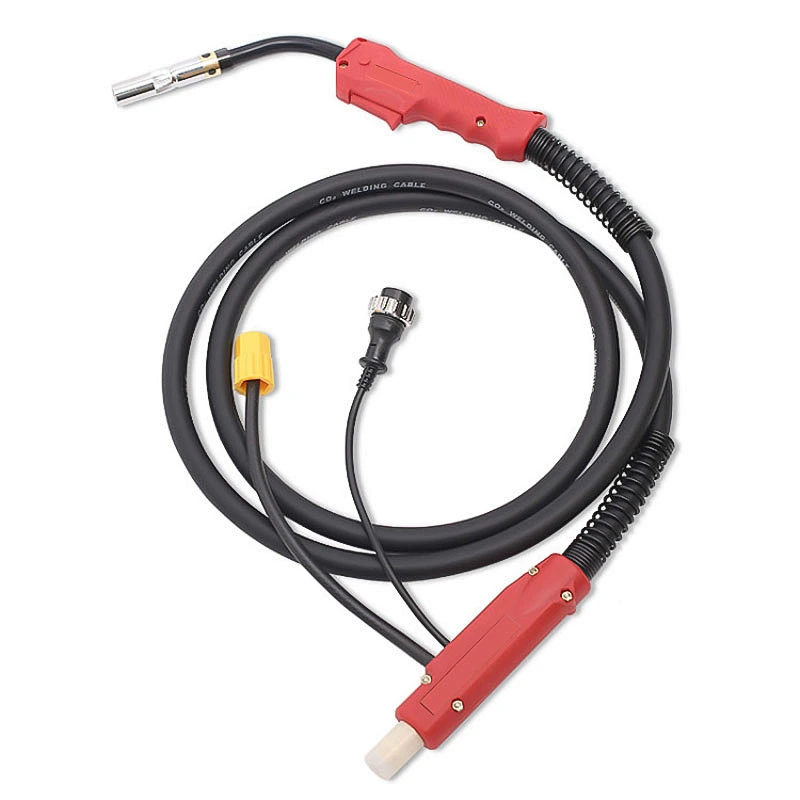

350A CO2 Panasonic torch mig series air cooled welding gun
Rating
350A CO2/ 320A Mixed Gas, Duty Cycle 60%
Wire Diameter
1.0-1.4mm
Welding Torch Cable
3m/4m/5m etc
Rear Connector
onnector Panasonic type
Packing
1set/box neutral packing, 5sets/Carton Box

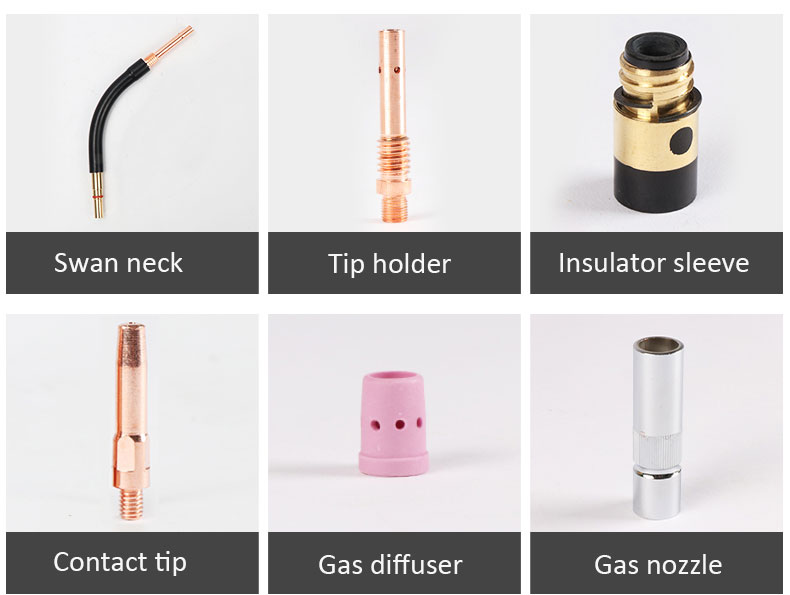

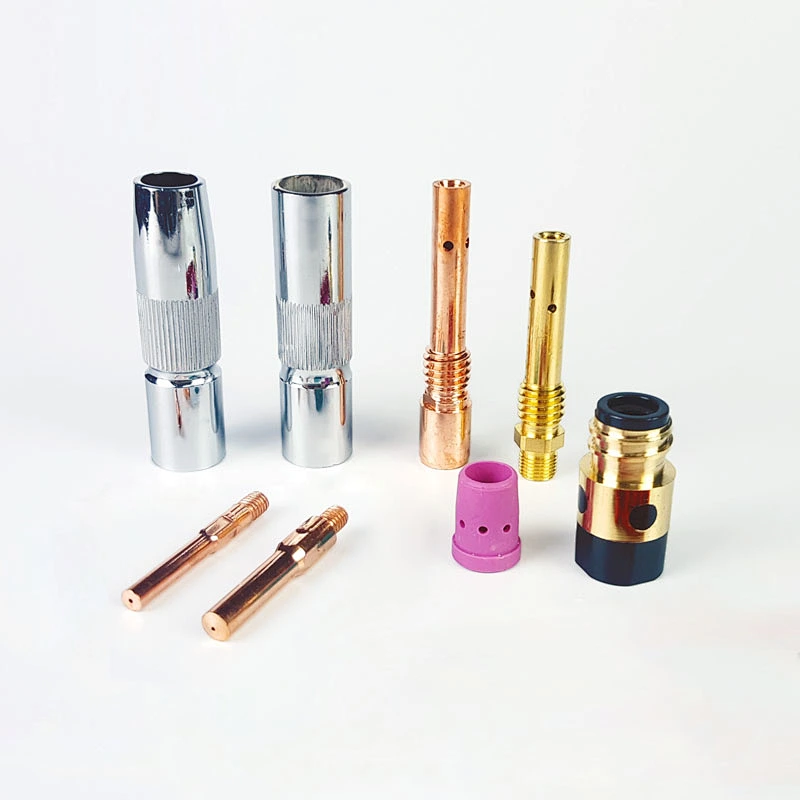

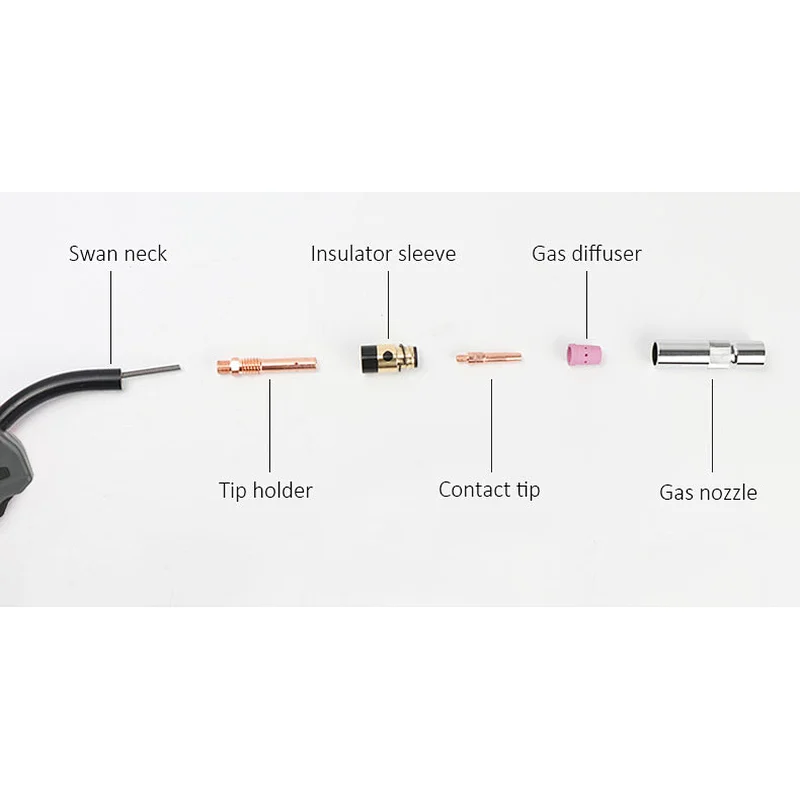

Product Description
Specification
Product name
Welding Gas nozzle
Material
Copper
Thickness
2.0mm/2.5mm
Model
Panasonic 350A
Length
73mm
Product name

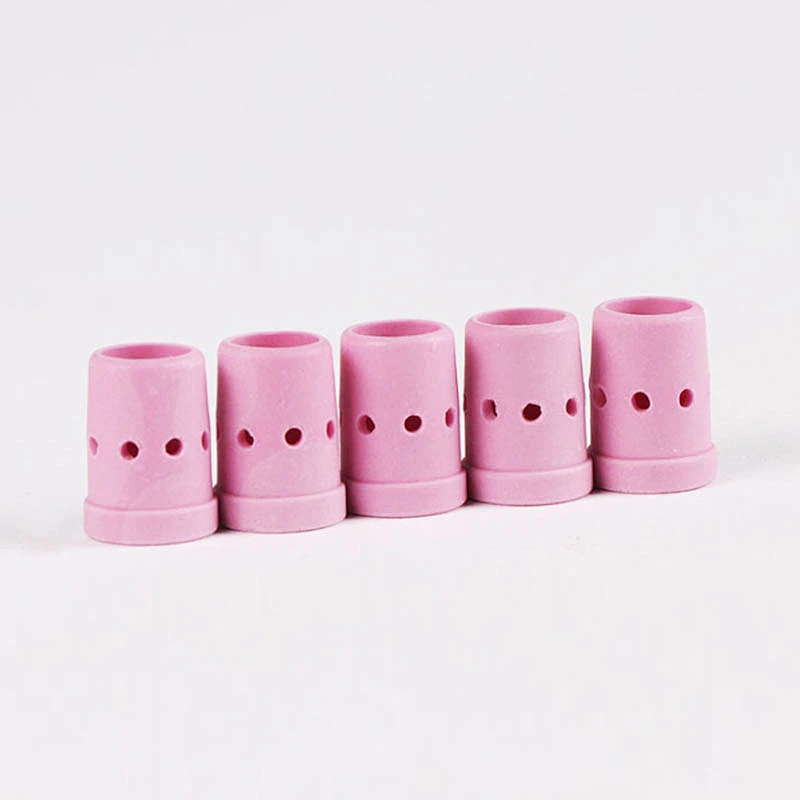

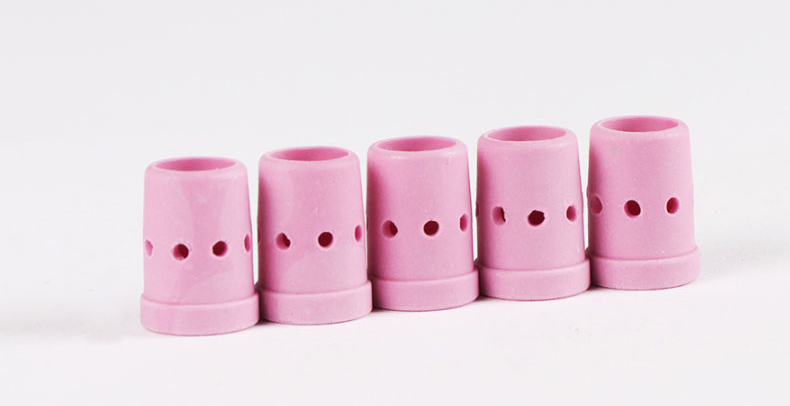

Welding Gas diffuser
Material
Ceramic
Model
Panasonic 350A
Length
21mm
Product name

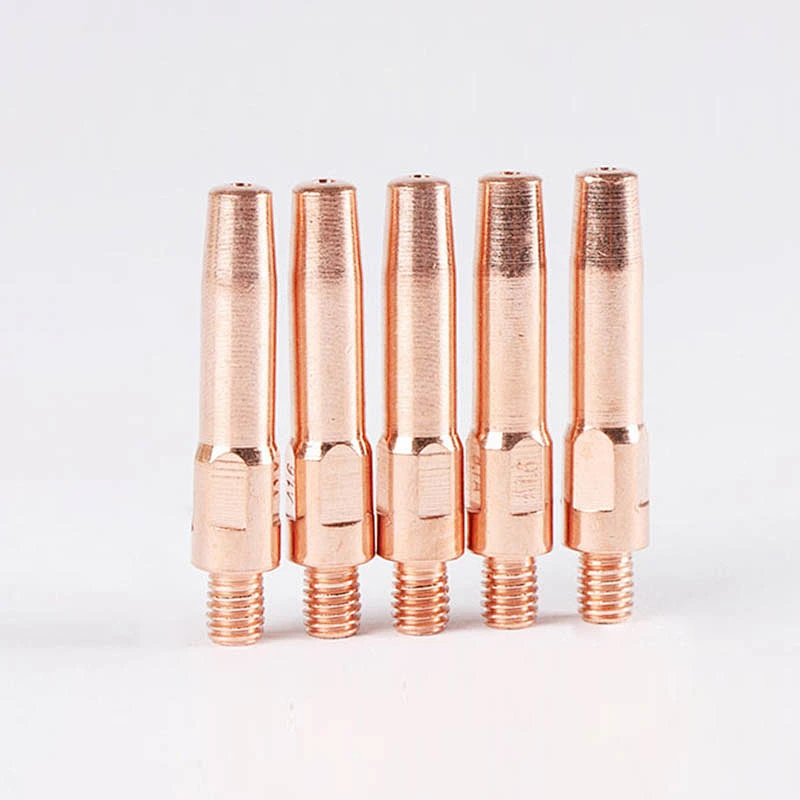

Welding Contact tip
Material
Copper
Bore diameter
0.8/1.0/1.2/1.4/1.6
Model
Panasonic 350A
Thread
M6*40/M6*45
Grade
6.5/8.8
Product name

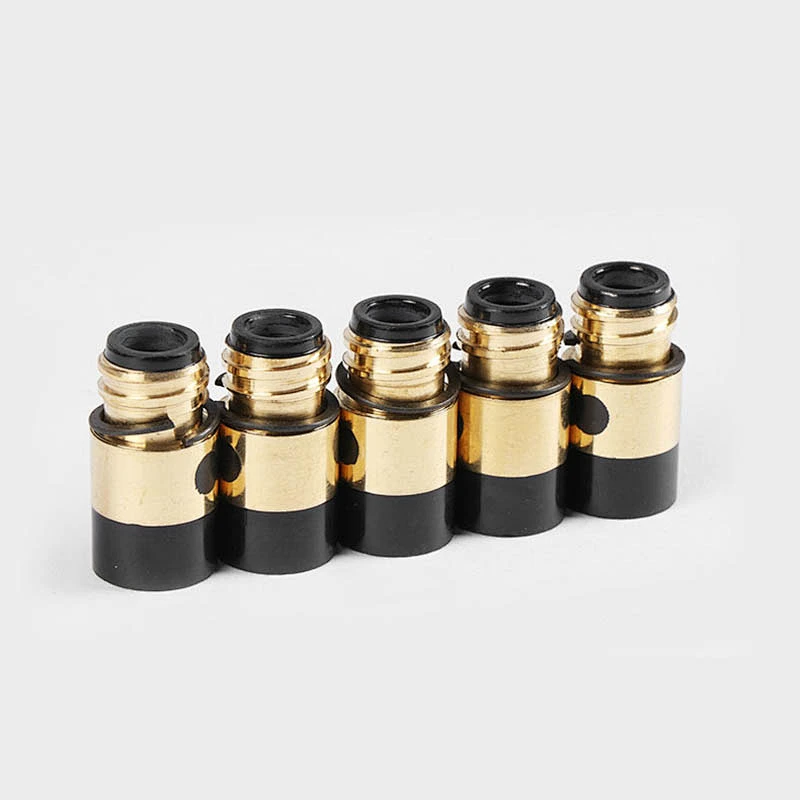

Welding Insulator sleeve
Material
Bakelite + brass
Model
Panasonic 350A
Length
38mm; Φ 20mm
Grade
Product name

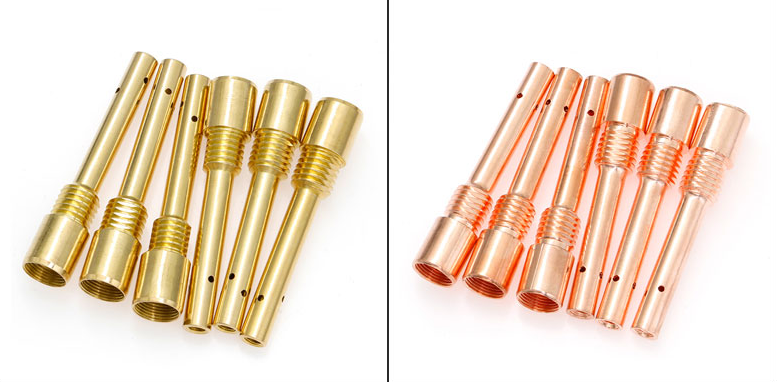

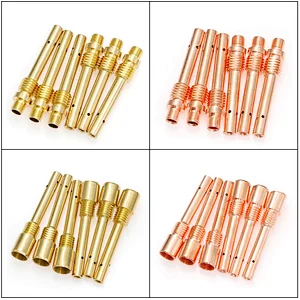

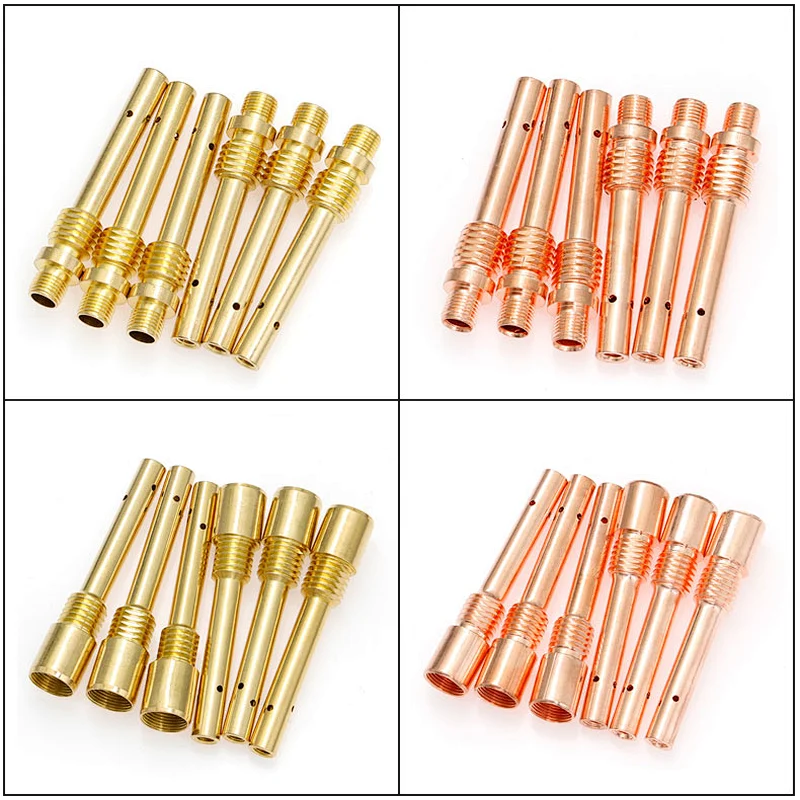

Welding Tip holder
Material
Brass/Copper
Thread
M10*M6; External thread
Model
Panasonic 350A
Length
64mm
Product name

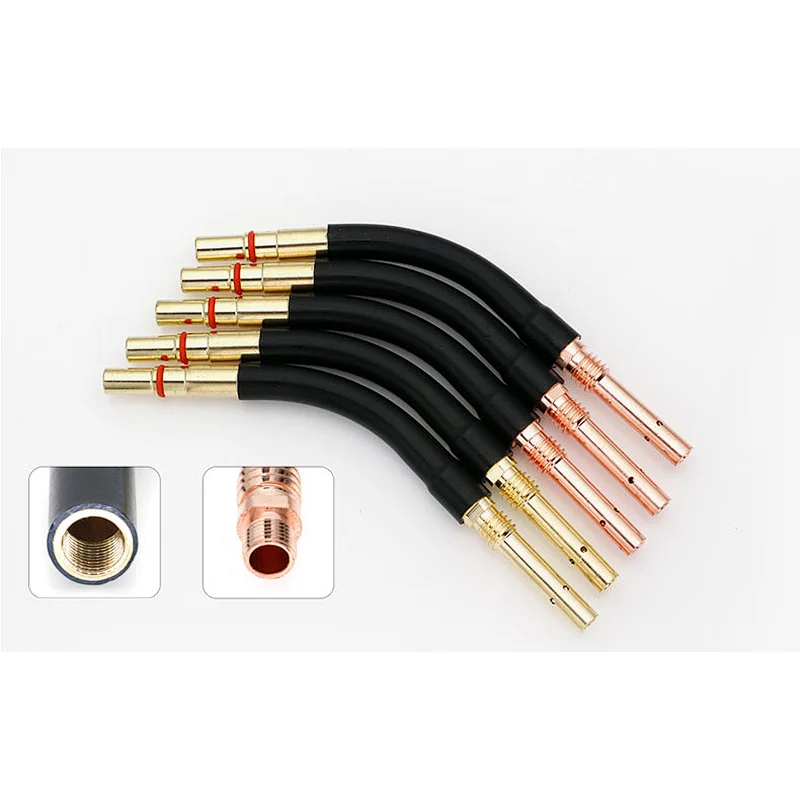

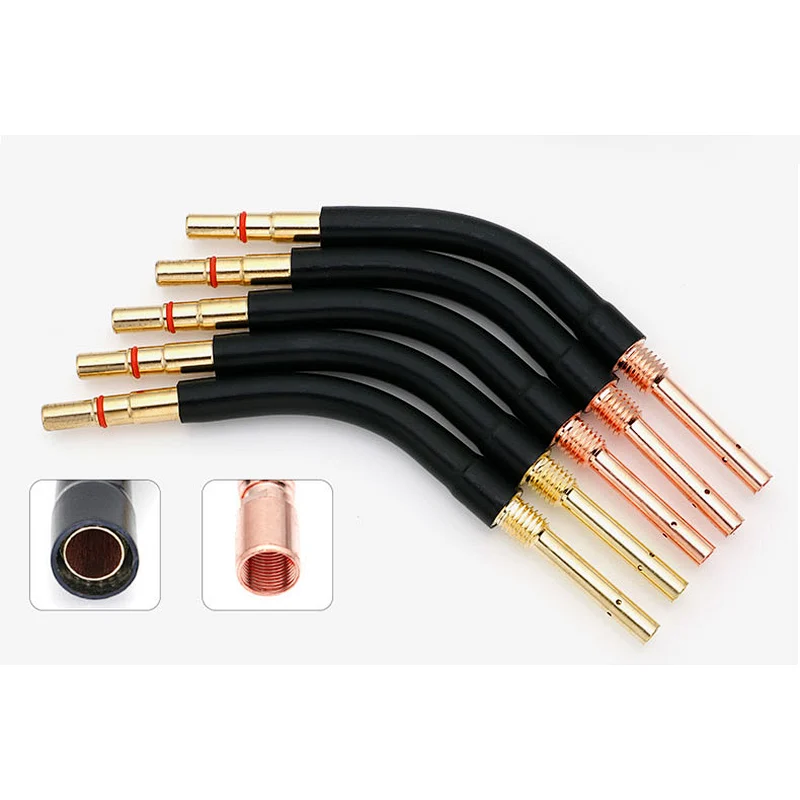

Welding Swan neck
Material
Brass
Thread
Internal thread
Model
Panasonic 350A
Length
190mm
Product name
Welding Tip holder
Material
Brass/Copper
Thread
M10*M6; Internal thread
Model
Panasonic 350A
Length
72mm
Product name
Welding Swan neck
Material
Brass
Thread
External thread
Model
Panasonic 500A
Length
185mm
Product name

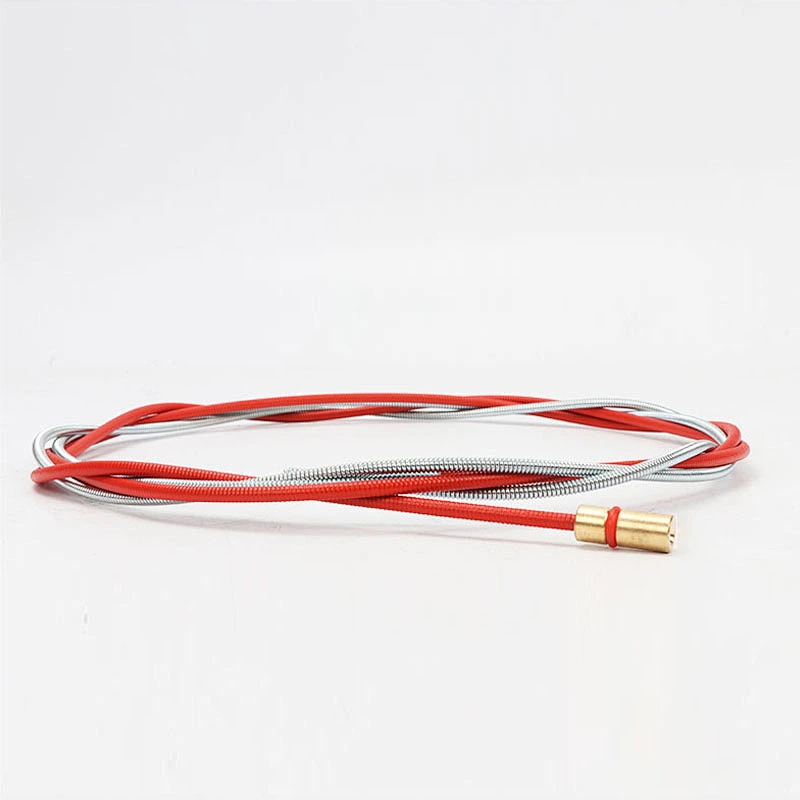

Torch Welding Liner
Material
Steel liner
Liner diameter
2.0mm
Model
Panasonic 500A
Length
2m/3m/4m etc
Optimum torch cooling - high endurance
Ergomically designed handle system- optimum handling in every position
Light and highly flexible cable assembly, makes low-fatigue possible
Robust construction for durability and extended torch life
