Model NO.: TIG315P(Code.202190)
Delivery: FOB/EXW/FCA
Minimum order quantity: 1 piece
Supply Ability: 2000 piece / Day
Country of Origin: China
Stock Time: 5-15 Days

Digital Control PRECISE WELDING-- HF start hand torch control and precise foot pedal welding heat control with the digital control welding parameters setting.
Suitable for precise welding stainless steel, mild steel, aluminum, and other metal materials.
Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish.
Adopt inverter IGBT module technology.
Automatic Compensation For Voltage Fluctuation, Over-voltage protection, Under Voltage Protection, Over Current Protection, Over Load Protection.

Quantity:

Video Description

Specification

TIG315P TECHNICAL SPECIFICATION
Input voltage	3-phase AC380V	Pulse width ratio	20%-80%
Rated output current	315A	Down slope time	0.1-5.0S
Rated output voltage	22.0V	Crater arc current	10-315A
Rated input power	12.0KW	Post flow time	5s-10s
No-load voltage	65V	Cleaning width	25%-75%
Display Current range	10-315A	AC frequency	50-150HZ
Start arc current	10-315A	Duty cycle	280A@40%@40°C
Up-Slope time	0.1-5S	Efficiency	83%
Pulse current	10-315A	Protection	IP21S

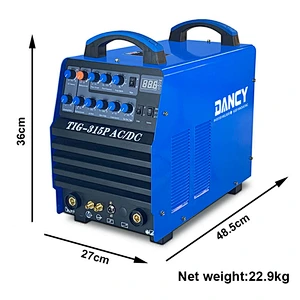

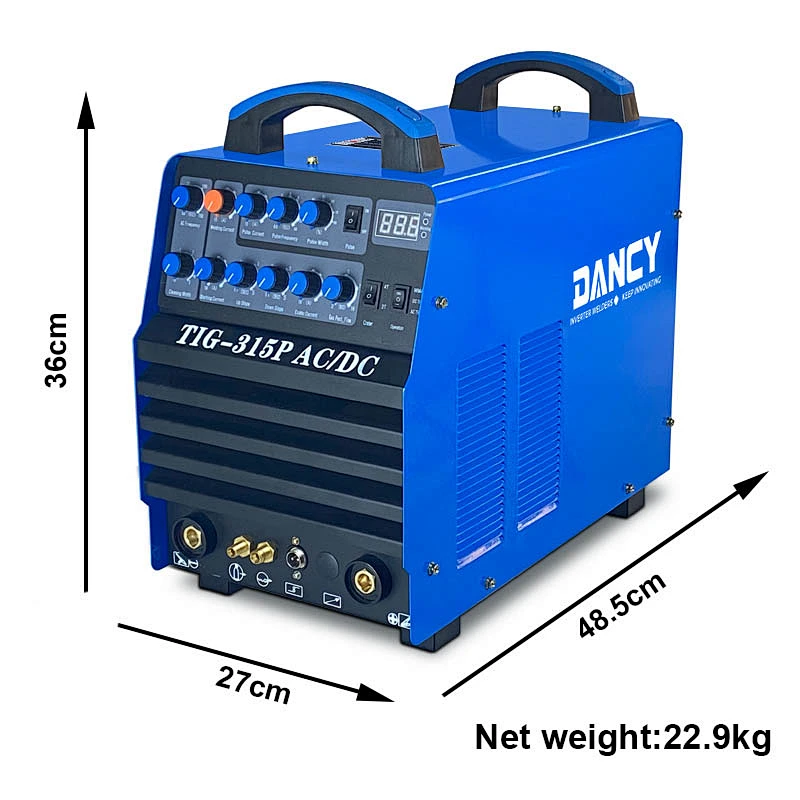

Welding Current	10-315A	Machine net size	470X260X440MM
Pulse frequency	0.5-100HZ	Machine Gross Weight	26.0KGS

Product Description

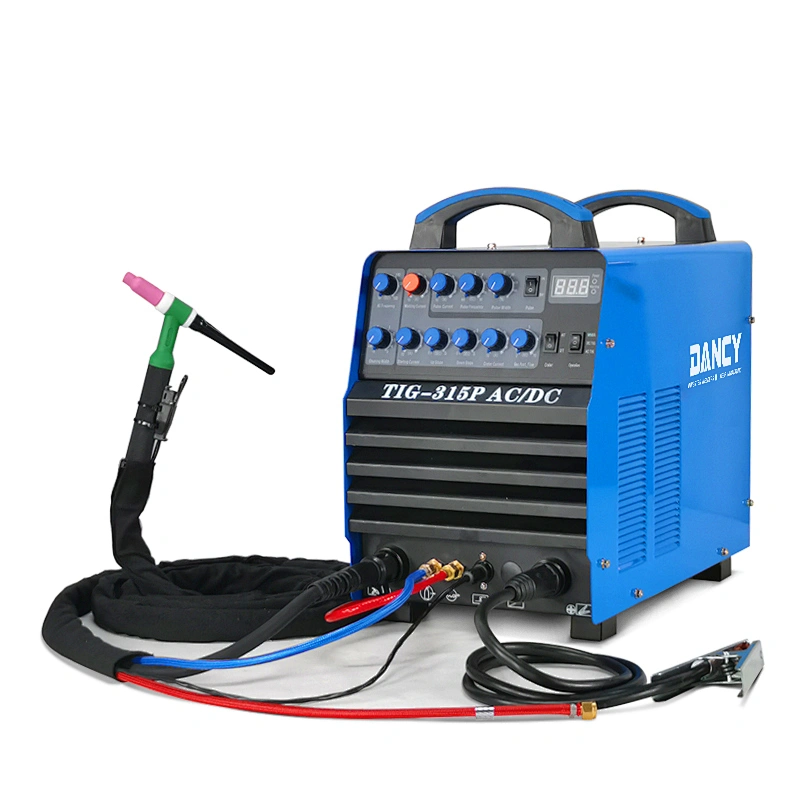

TIG AC DC PULSE WELIDNG MACHINE TIG315P ,excellent for aluminum welding

1. This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA / Suitable For Aluminum and
Stainless Steel Welding / Suitable for 6013,7018,6010 Electrode
2. Inverter IGBT module technology.

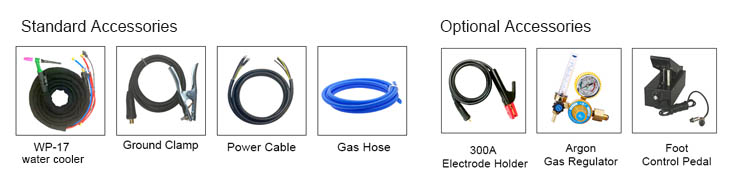

3. Remote Control for Trigger / Foot-pedal optional.
4. Compact size , machine only net weight 23.00KGS,very easy to remove.
5. Great performance for aluminum welding.Please check the video
6. Foot pedal is available.

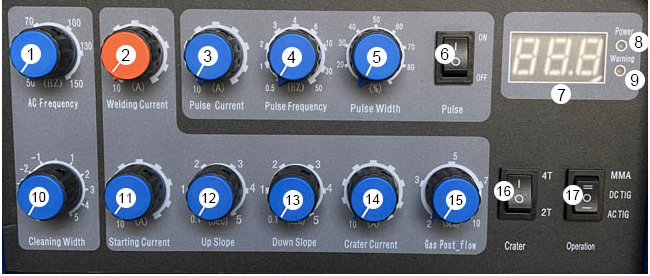

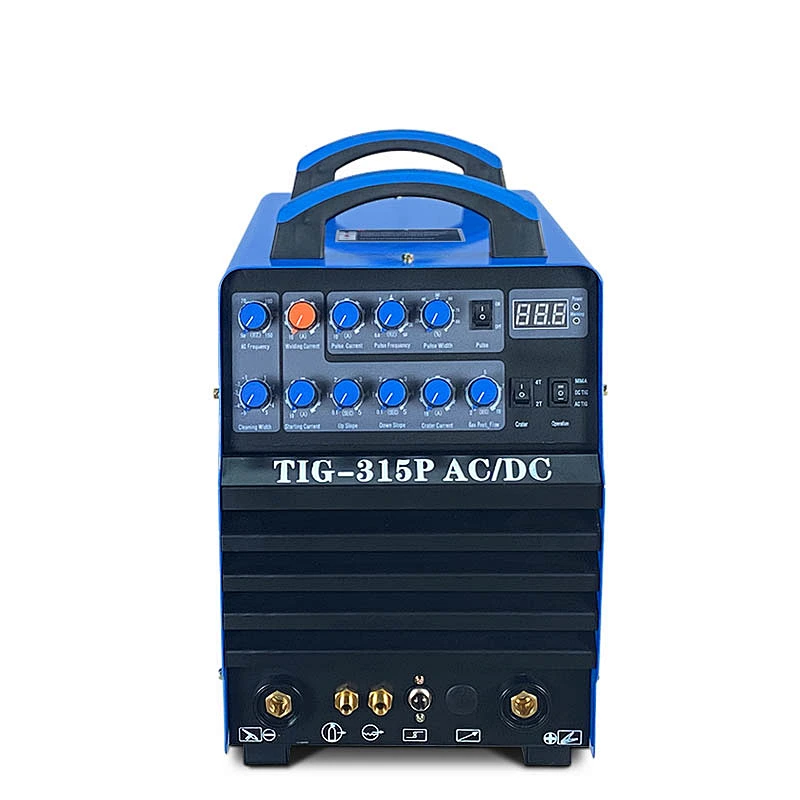

Details Images

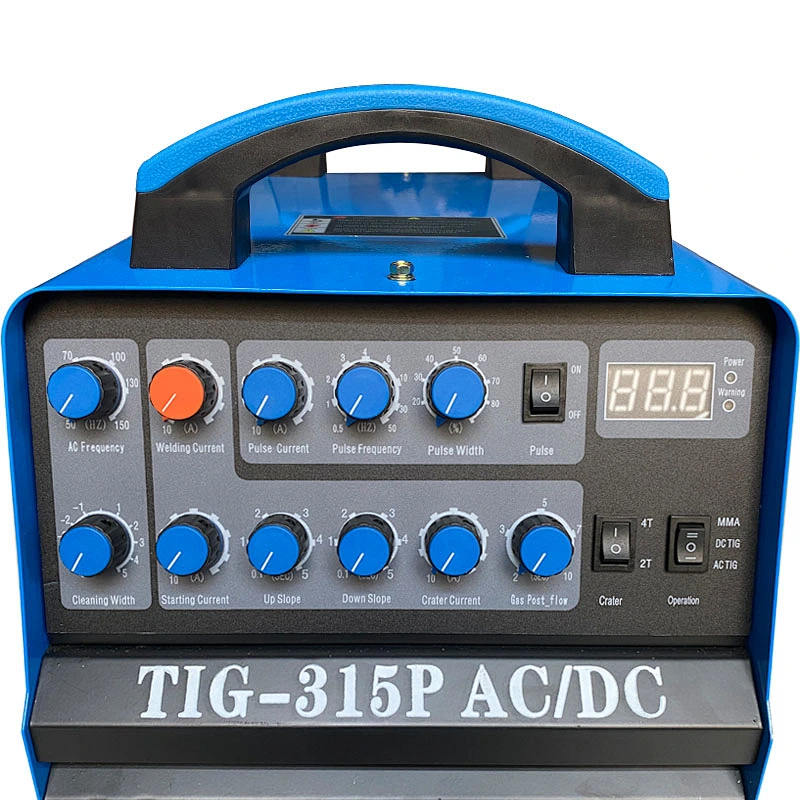

1.Ac Frequency	2.Welding Current	3.Pulse Current	4.Pulse Frequency	5.Pulse Width
6.Pulse switch	7.Display	8. Power indicator	9.Warning indicator	10.Clean width
11.Starting current	12.Up Slope	13.Down Slope	14.Crater Current	15.Gas post
16.2T/4T	17.AC DC TIG/MMA

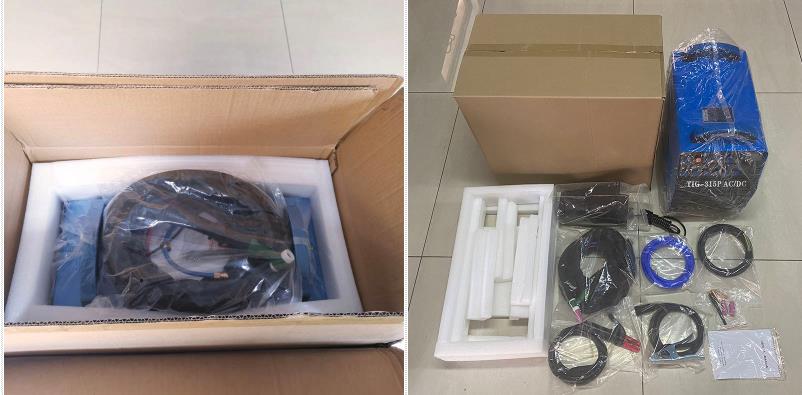

Packing & Delivery

Selling Units: Single item
Selling package size: 66X37X57 cm
Selling gross weight: 31.500 kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certification：CE
Usage：TIG DC,TIG AC ,PULSE and MMA welding
Dimensions： 66X36X56.5CM
Power(W)：12000
Rated Current：380v, Three phase
Input Voltage：380V, Three phase
Model Number：TIG315P
Brand Name：DANCY
Place of Origin：ZheJiang, China
Condition：New

This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA .
Suitable For Aluminum and Stainless Steel Welding .
Suitable for 6013,7018,6010 Electrode.

Remote Control for Trigger / Foot-pedal optional.
Great performance for aluminum welding.Please check the video
Foot pedal is available.
