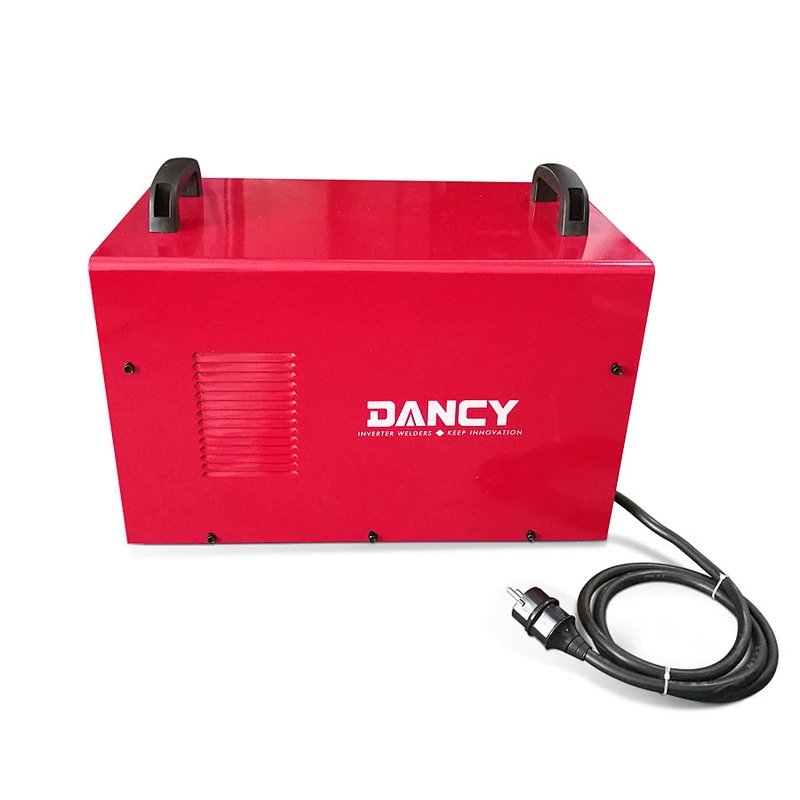

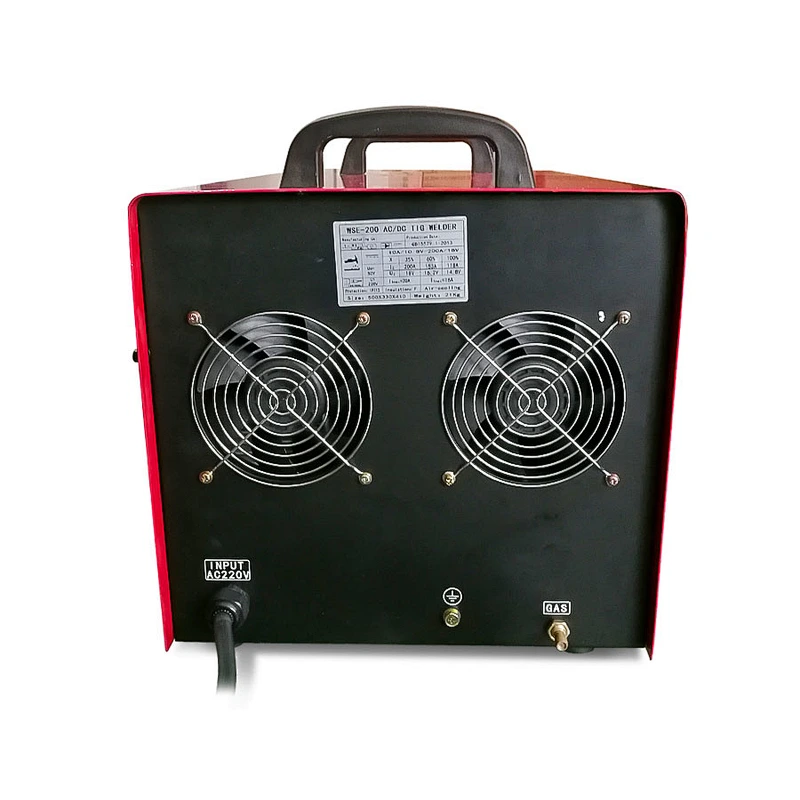

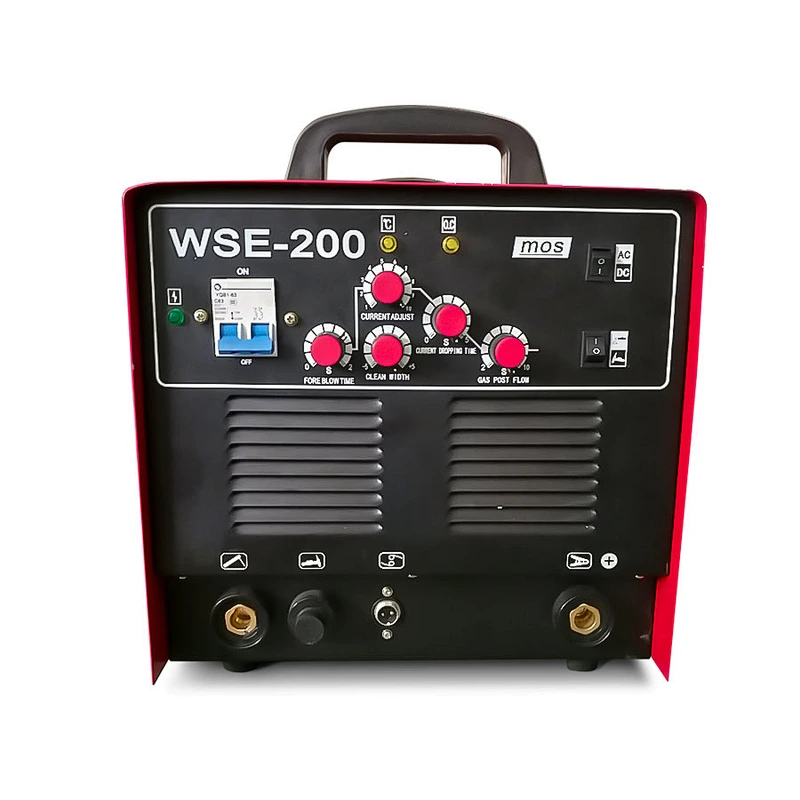

Mosfet WSE200 AC/DC Square Wave TIG Welding machine good for aluminum welding

Mosfet WSE200 AC/DC Square Wave TIG Welding machine good for aluminum welding

Model NO.: WSE200(Code.202193)
Delivery: FOB/EXW/FCA
Minimum order quantity: 50 pieces
Supply Ability: 2000 pieces / Day
Country of Origin: China
Stock Time: 3-15 Days

TIG AC DC Mosfet Inverter 200amp welder with TIG and MMA function, portable size.
It's good on DC welding for stainless stell, alloy steel, carbon steel, copper and other color metal, AC welding for aliminium.

Quantity:

Specification

Technical specifications
Model	WSE200 AC/DC
Input Power Voltage	AC.(single Phase)220V±15%
Rated Frequency	50/60Hz
Rated input power capacity	4.5KVA
No-load voltage	56V
Rated current range	20-200A
Rated output voltage	18V
Duty cycle	60%
Arc-starting	HF
Efficiency	85%
Power factor	0.93
Insulation class	F
Weight	29kg
Overall dimension	540345450mm
Protection class	IP21
Pre-flow	0-2S
Clean width	20-80%
Down-slope time	0-5S
Pastflow time	2-10S
Max welding thichness with AC	3mm

Product Description

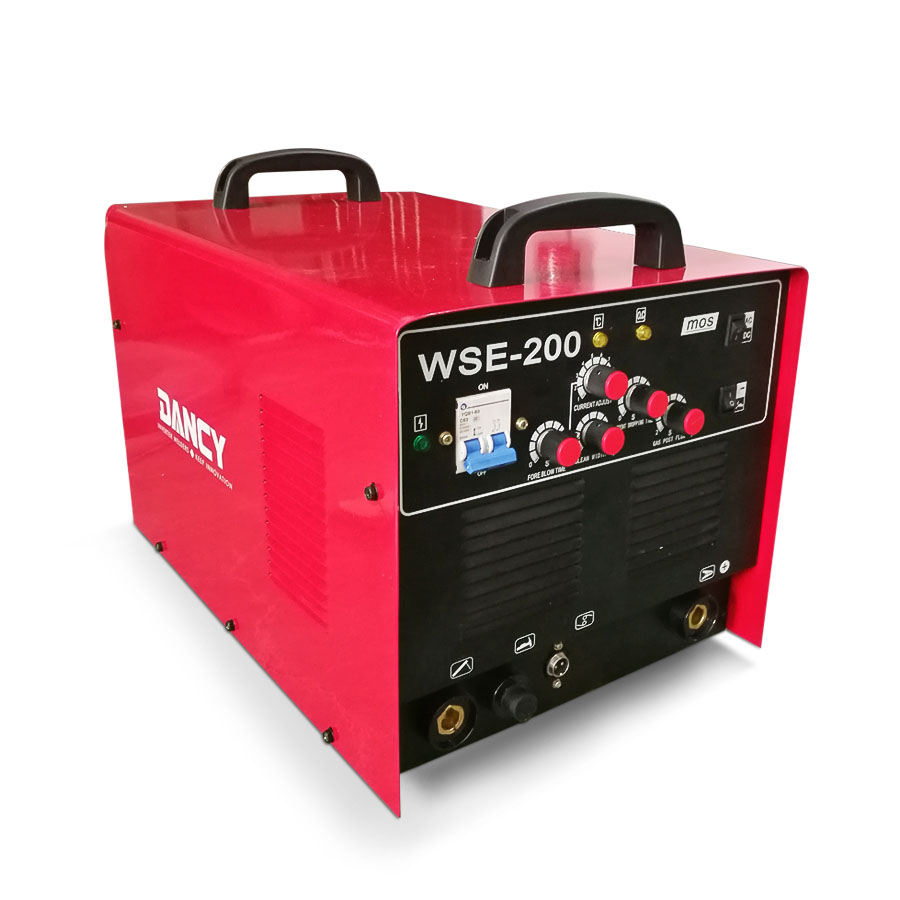

Mosfet WSE200 AC/DC Square Wave TIG Welding

1.Stable arc, easy to fill in the wire.
2.Pedal control for current.
3.Compact, low noise.
4.DC welding for stainless stell, alloy steel, carbon steel, copper and other color metal, AC welding for aliminium
5. High speed dual inverter to control the current waveform, very high arc stability, high quality square wave, decreases the welding cost and increases the welding quality.
6. The multipurpose welding machines in the series can be operated for DC TIG, AC TIG, pulse TIG welding processes.
7. Inverter high frequency, high efficiency, low noise.
8. High frequency and high voltage arc initiating, high success rate.
9. With the perfect protect functions in over voltage, low voltage, over heat, over current, over load, can ensure safety and reliability.
10. Be able to weld mild steel, stainless steel, copper and titanium metal etc. by DC TIG, also be able to weld aluminum and aluminum-alloy by AC TIG.

Packing & Delivery

Selling Units: Single item
Selling package size: 57X40X42 cm
Selling gross weight: 23.400 kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certification：CE
Usage：TIG and MMA welding
Dimensions：540*345*450mm
Power(W)：4.5KW
Rated Current：20-200A
Input Voltage：220V±15%
Model Number：WSE200(MOSFET)
Brand Name：DANCY
Place of Origin：Zhejiang, China
Condition：New

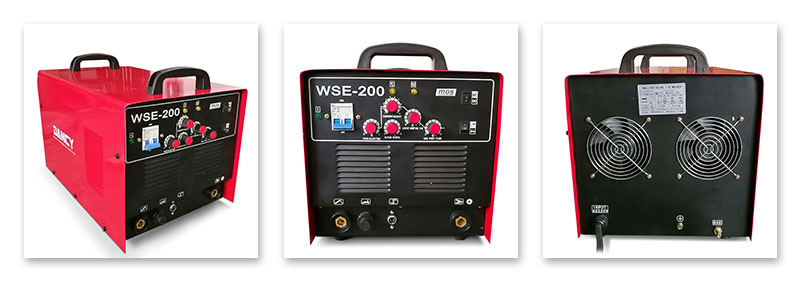

This AC/DC Inverter TIG Stick welder, its input voltage is 220V and max output current is 200 amp. With easy setting approach between TIG and MMA. And it's good on carbon steel welding, also for stainless steel and aluminum welding. It is a portable TIG welder that provides AC/DC stick and AC/DC TIG welding capability. Using mosfet tech, which gives more stable arc and high frrequency to ensure a ber welding performance. It is ideal for welding tasks where portability and performance are required.
