Specification
TIG250P TECHNICAL SPECIFICATION | |||
Input voltage | Single-phase AC220V | Pulse width ratio | 0.2-0.8 |
Rated output current | 250A | Down slope time | 0.1-5.0S |
Rated output voltage | 18.8V | Crater arc current | 10-250A |
Rated input power | 8.5KW | Post flow time | 5s-25s |
No-load voltage | 56V | Clean width | 25%-75% |
Display Current range | 10-250A | AC frequency | 50-100HZ |
Start arc current | 10-250A | Duty cycle | 220A@40% |
Up-Slope time | 0.1-5S | Efficiency | 83% |
Pulse current | 10-250A | Protection | IP21S |
Welding Current | 10-250A | Machine size | 470X260X440MM |
Pulse frequency | 0.5-100HZ | Machine Gross Weight | 26.5KGS |
Product Description

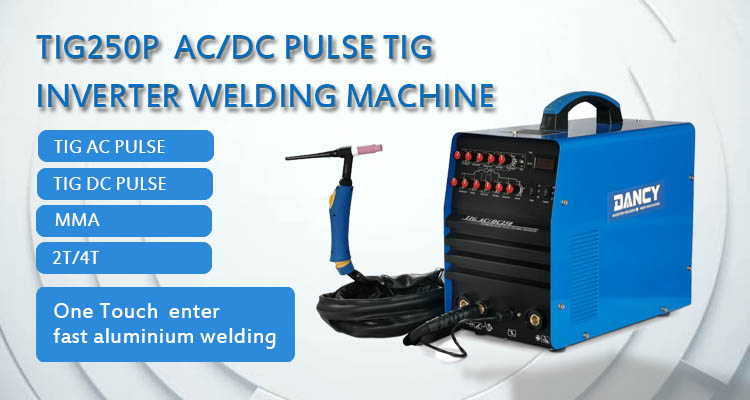

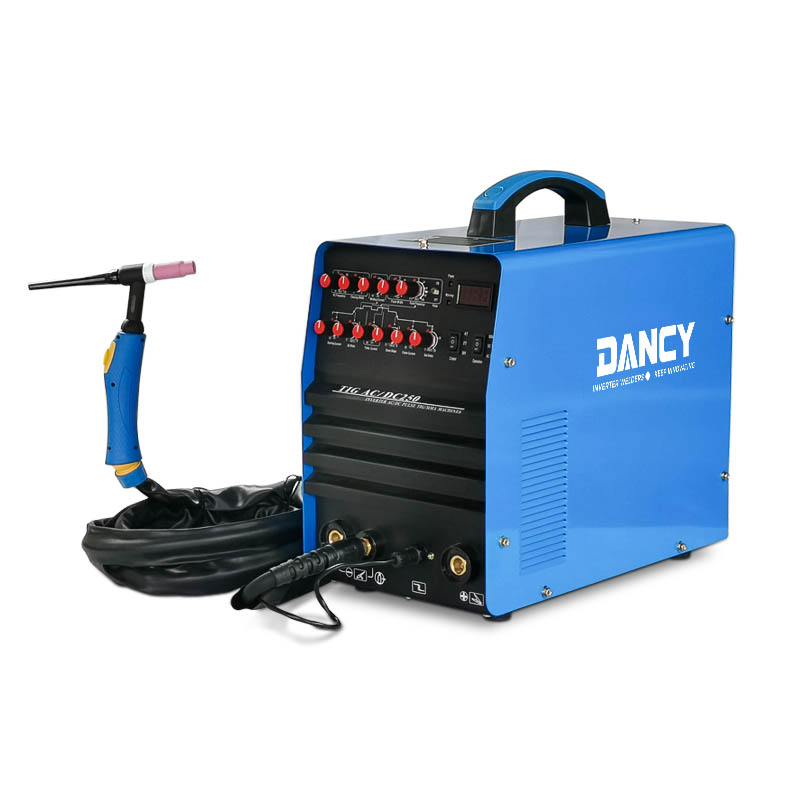

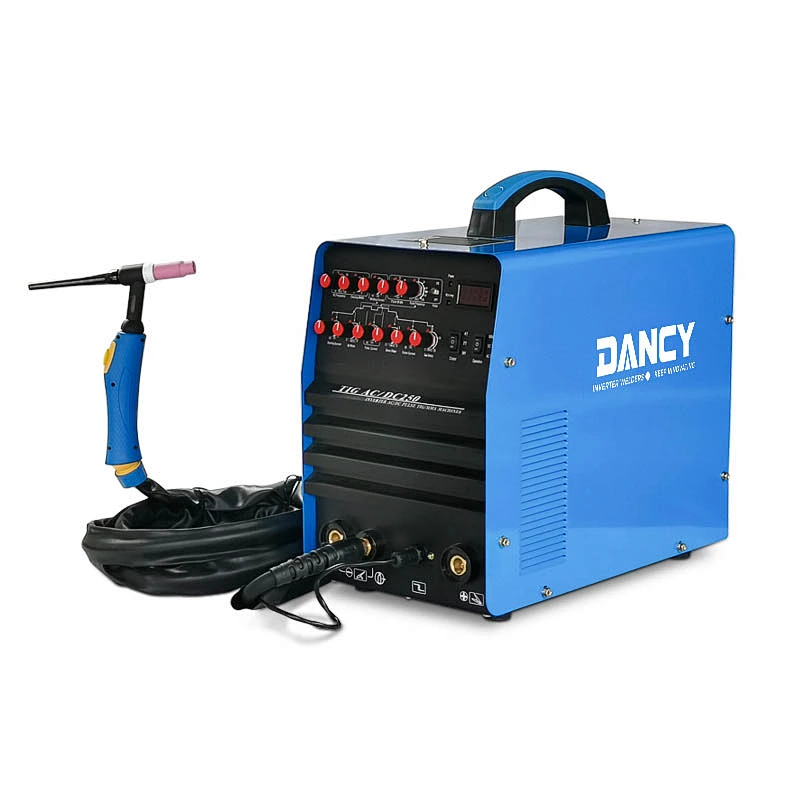

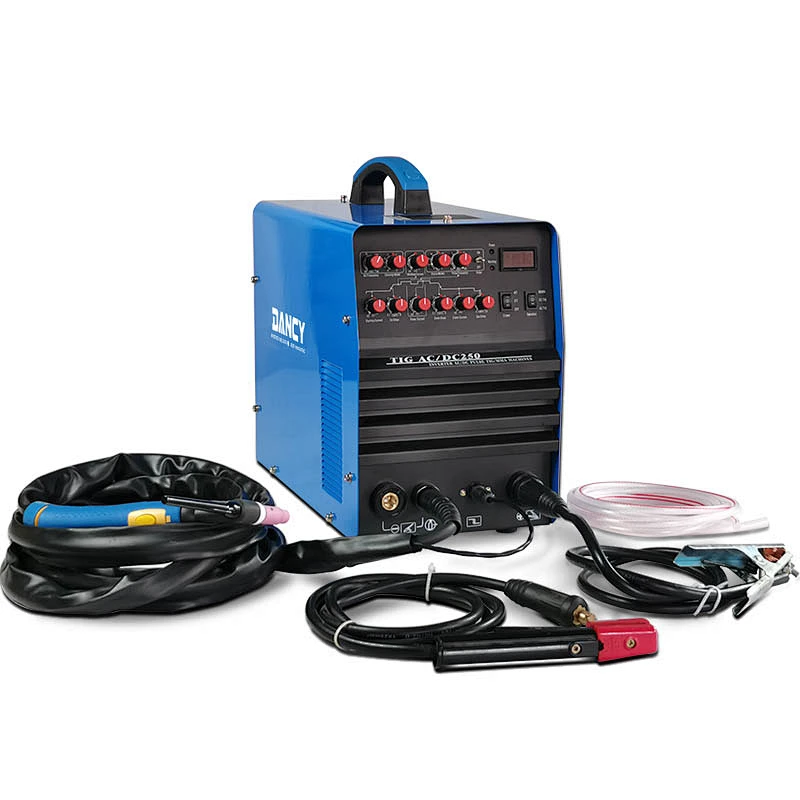

TIG AC DC PULSE WELIDNG MACHINE TIG250P maquina solda aluminio ,excellent for aluminum welding
1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA.
Suitable For Aluminum and Stainless Steel,carbon steel and copper
Suitable for 6010 7018 Electrode
2.Updated inverter IGBT module technology.
3. With big advantage of easy operation design of aluminum welding.

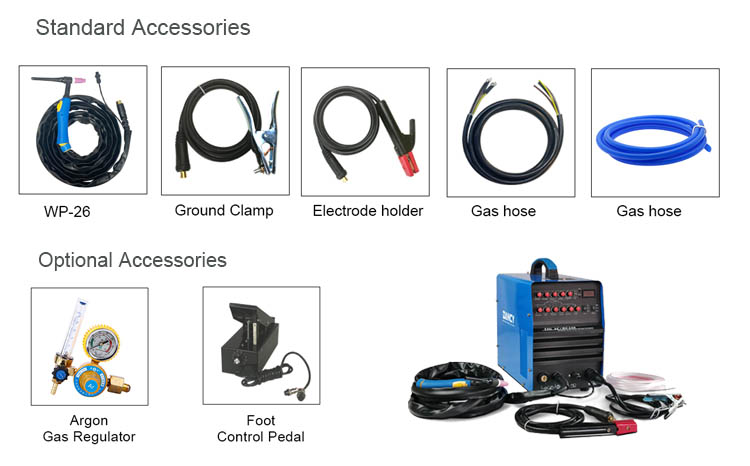

4. Remote Control for Trigger / Foot-pedal optional.

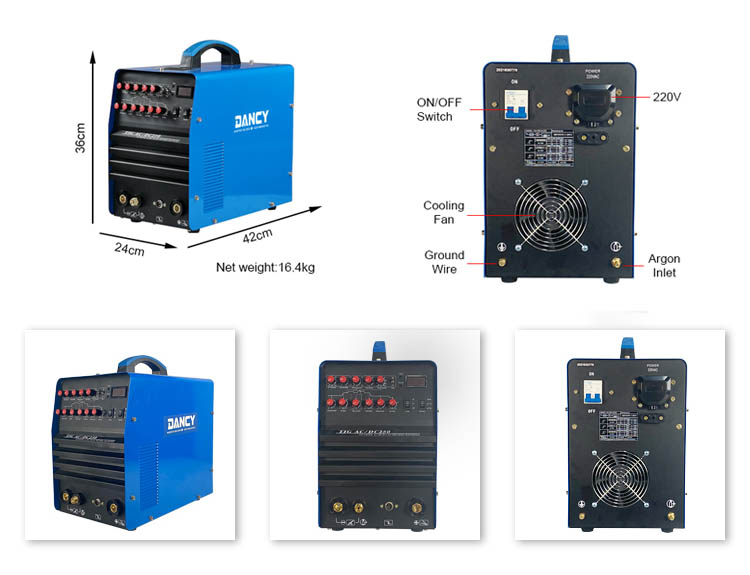

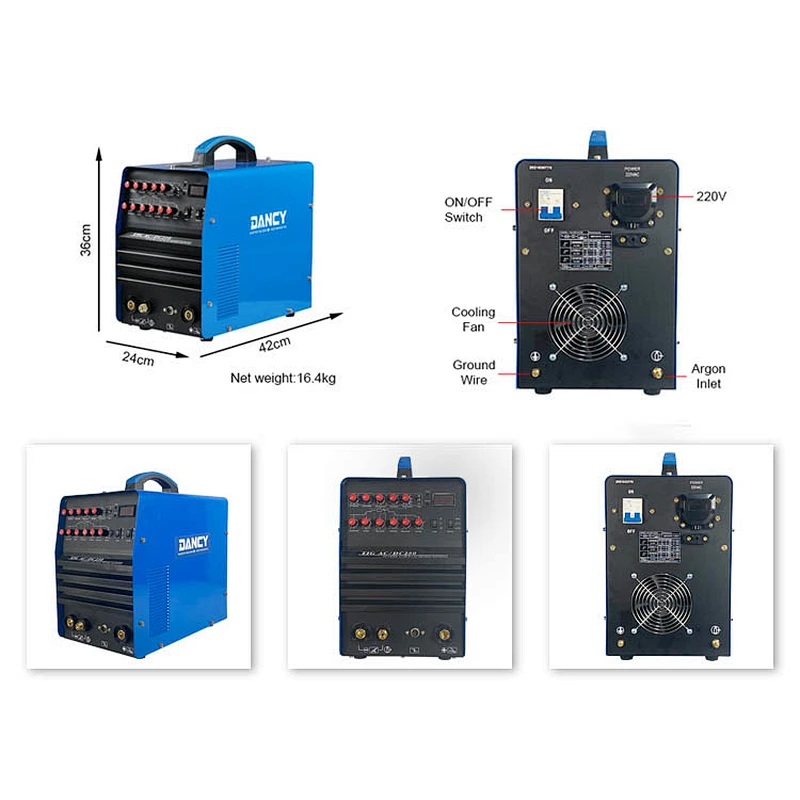

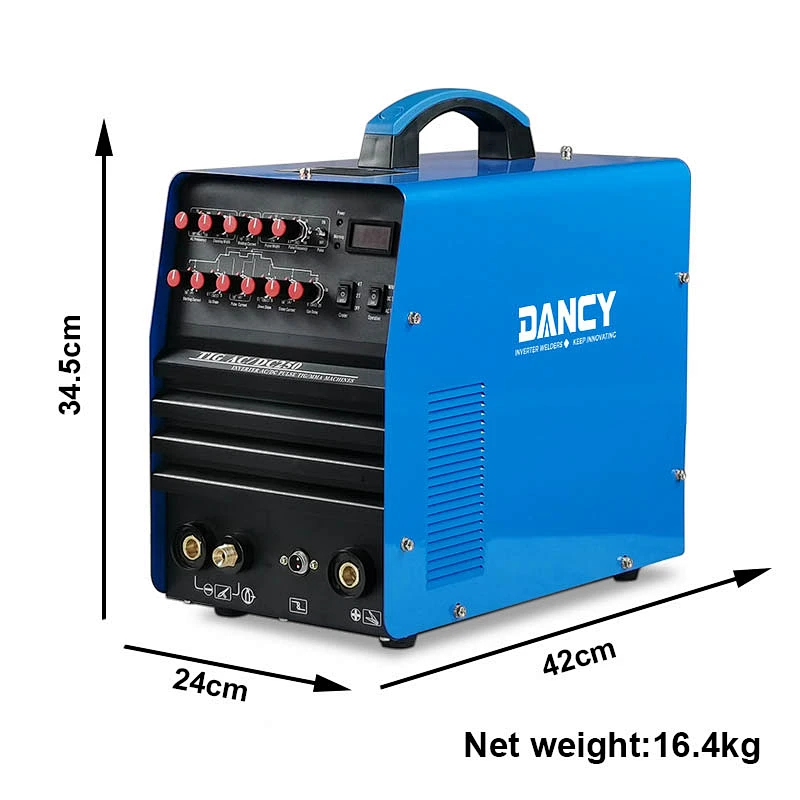

5. Compact size only 47X26X44CM, machine only net weight only 16.0KGS,very easy to remove.
6.Great performance for aluminum welding.Please check the video
7.Foot pedal is at option.
Details Images

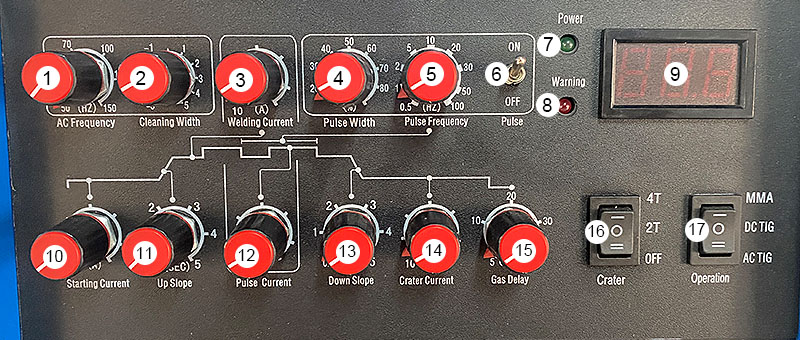

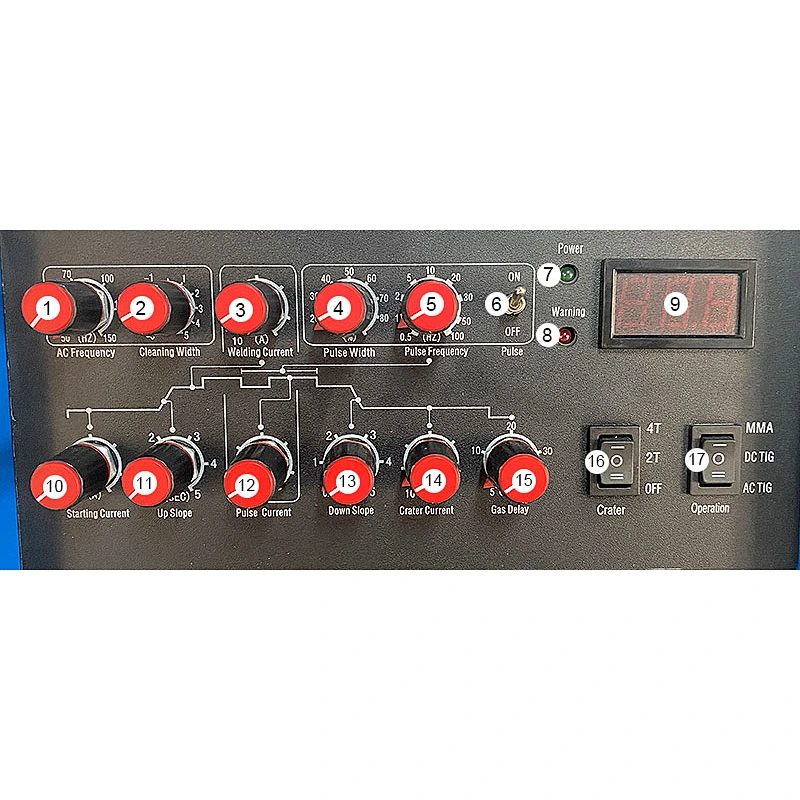

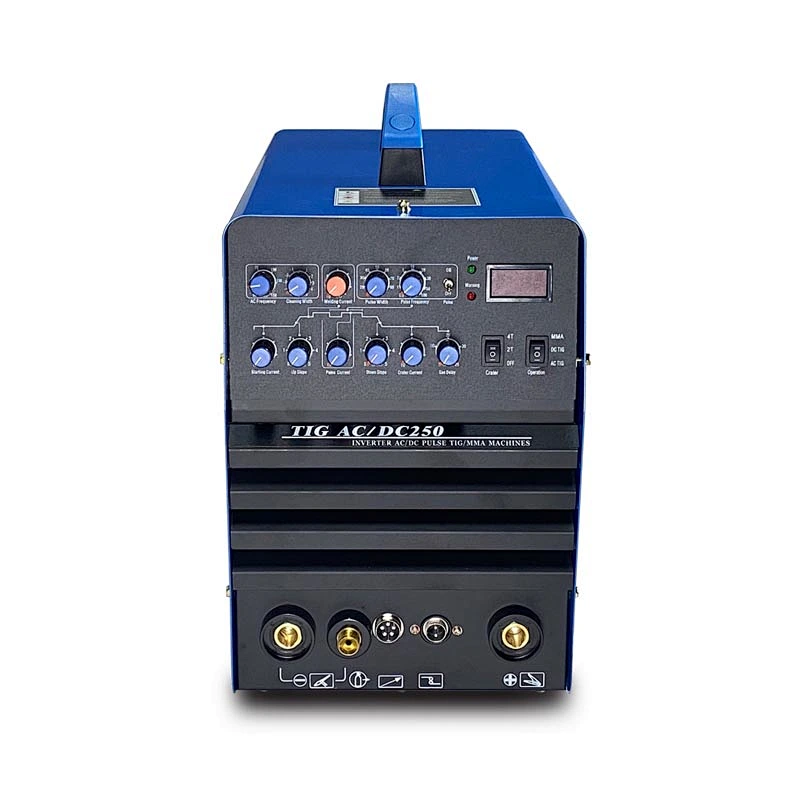

1.AC frequency | 2.Clean width | 3.Welding current | 4.Pulse width | 5.Pulse frequency |
6.Pulse switch | 7.Power indicator | 8.Warning indicator | 9.Digital Display | 10.Starting current |
11.Up slope | 12.Pulse current | 13.Down slope | 14.Crator Current | 15.GaS Delay |
16.2T/4T | 17.AC/DC TIG/MMA |

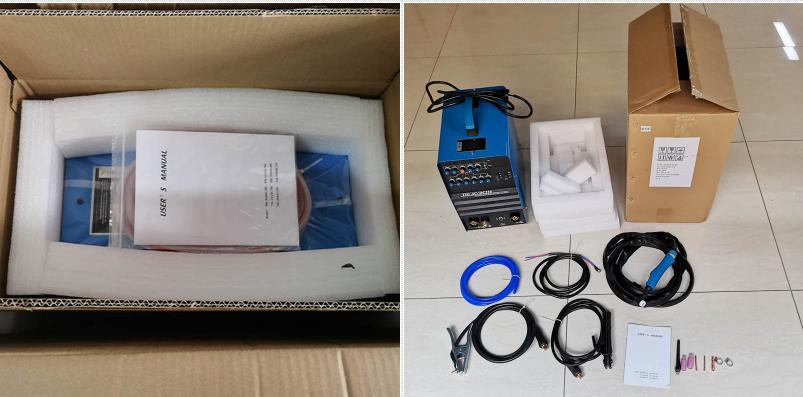

Packing & Delivery
Selling Units: Single item
Selling package size: 54X33X50 cm
Selling gross weight: 26.000 kg
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
