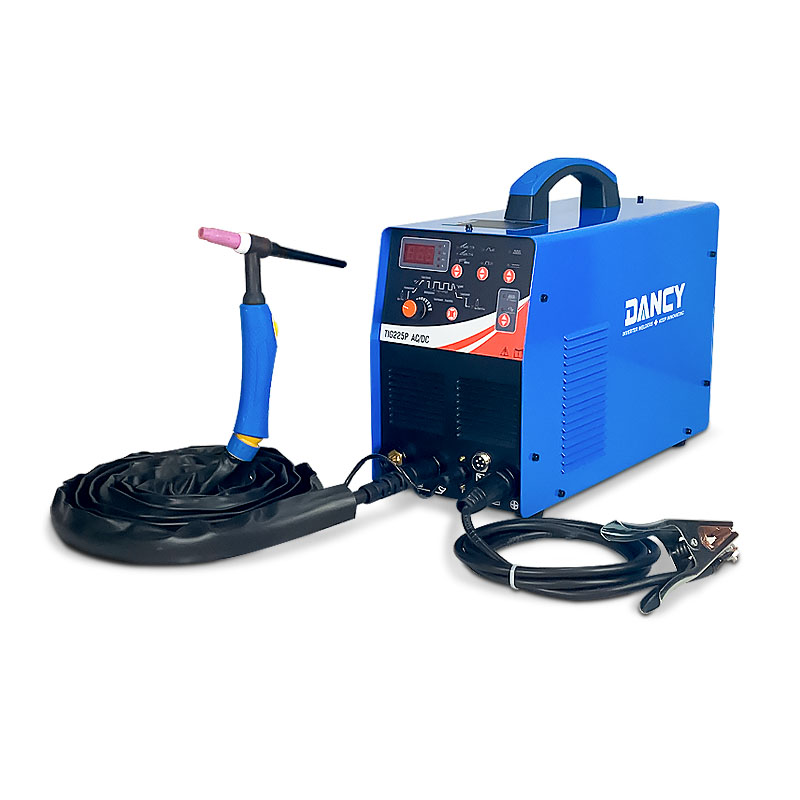

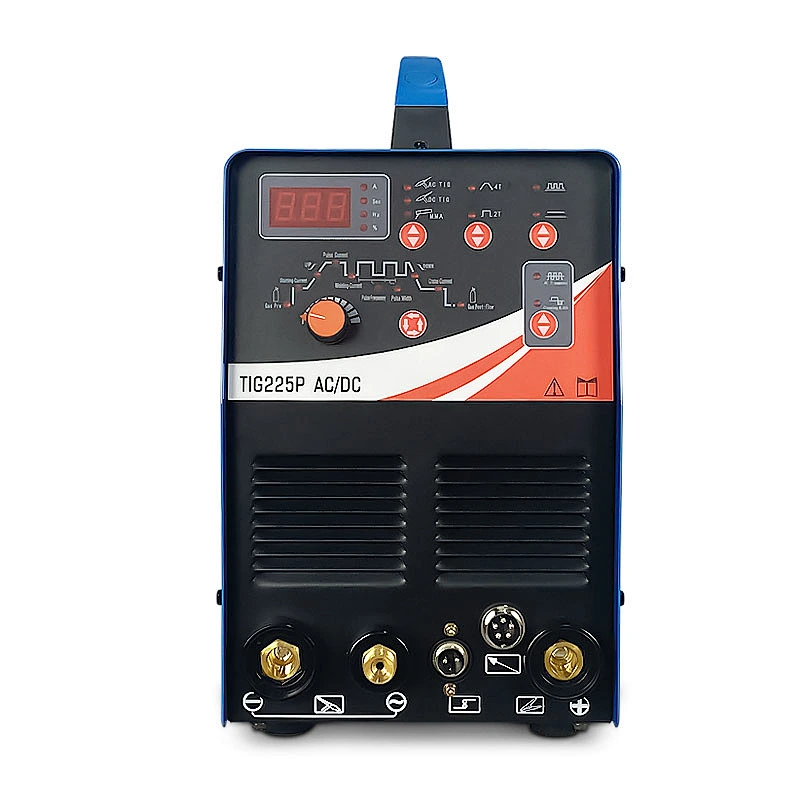

Tig ac dc TIG225P pulse welder 220V aluminium inverter welding machine easy and smart control fast supply from stock

Tig ac dc TIG225P pulse welder 220V aluminium inverter welding machine easy and smart control fast supply from stock

Model NO.: TIG225P(Code.202188)
Delivery: FOB/EXW/FCA
Minimum order quantity: 1 piece
Supply Ability: 2000 piece / Week
Country of Origin: China
Stock Time: 5-15 Days

225AMPS TIG/STICK WELDER WITH PULSE FUNCTION WORKS GREAT WITH ALUMINUM, STAINLESS STEEL AND THINNER METALS.
Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish.
Adopt inverter IGBT module technology.
Digital Control PRECISE WELDING-- HF start hand torch control and precise foot pedal welding heat control with the digital control welding parameters setting.
Automatic Compensation For Voltage Fluctuation, Over-voltage protection, Under Voltage Protection, Over Current Protection, Over Load Protection.

Quantity:

Video Description

Specification

TIG225P TECHNICAL SPECIFICATION
Input voltage	Single-phase AC220V	Pulse width ratio	0.2-0.8
Rated output current	225A	Down slope time	0.1-5.0S
Rated output voltage	20V	Crater arc current	10-225A
Rated input power	7.0KW	Post flow time	5s-25s
No-load voltage	56V	Clean width	25%-75%
Current range	10-225A	AC frequency	50-150HZ
Start arc current	10-225A	Duty cycle	200A@40%
Up-Slope time	0.1-5S	Efficiency	83%
Pulse current	10-225A	Protection	IP21S
Welding Current	10-225A	Machine size	450X200X350MM
Pulse frequency	0.5-100HZ	Machine wight	17.0KGS

Product Description

TIG AC DC PULSE WELIDNG MACHINE TIG225P ,excellent for aluminum welding

1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA / Suitable For Aluminum and Stainless Steel Welding /
Suitable for 6010 Electrode / IGBT Inverter
2. With big advantage of easy operation design / one press and hold for 3 seconds enter to aluminum welding
presetting,very convenience for fast operation.

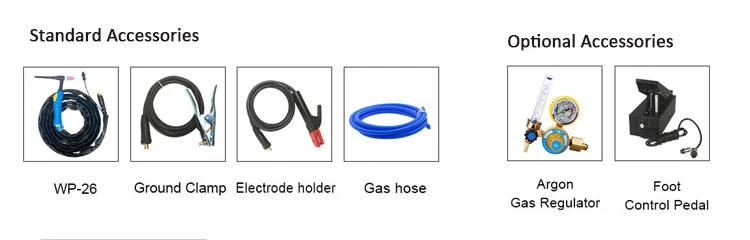

3. Remote Control for Trigger / Foot-pedal optional.
4. Compact size only 45X35X20CM,net weight only 16.5KGS,very easy to remove.
5.Great performance for aluminum welding.Please check the video

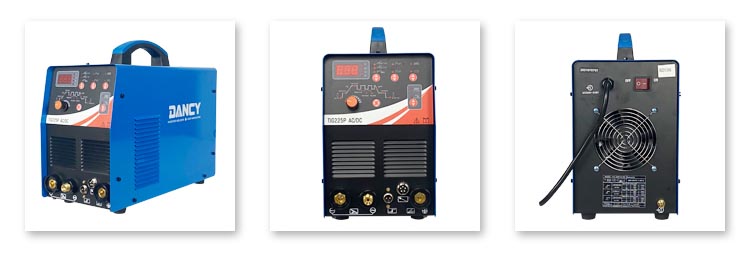

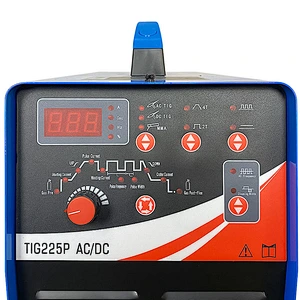

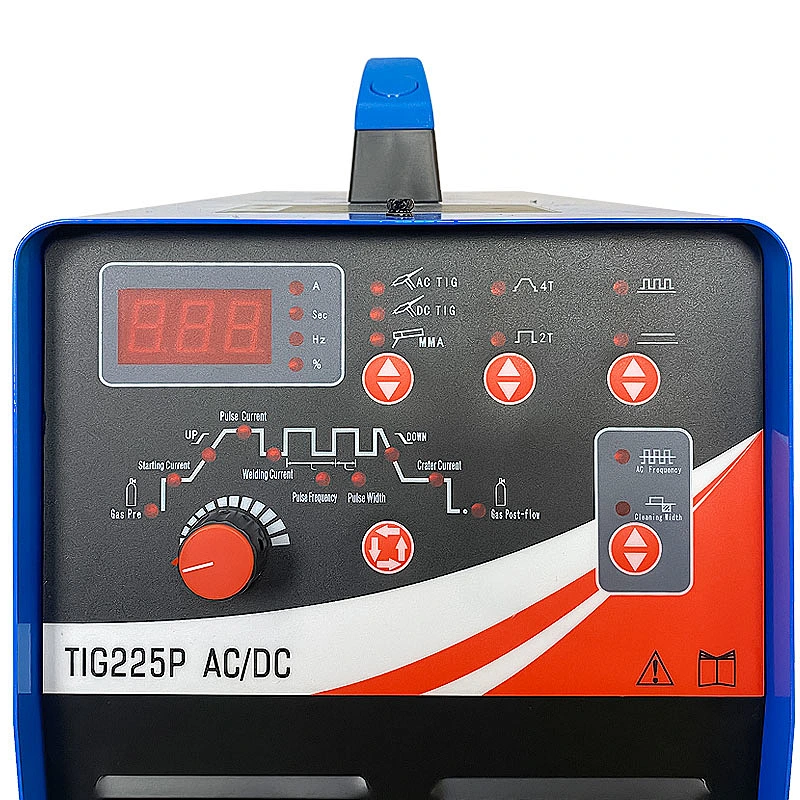

Details Images

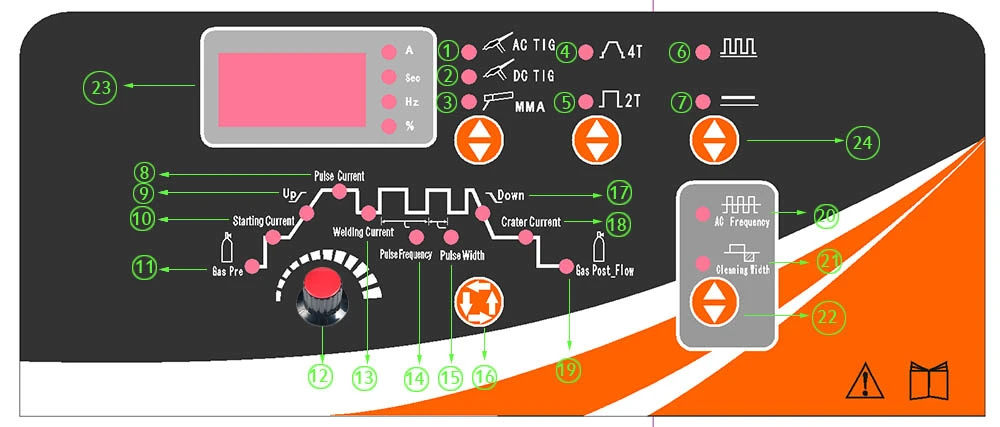

1.AC TIG mode	9.Current up	17.Current down
2.DC TIG mode	10.Starting current	18.Crator current
3.MMA mode	11.Gas Pre flow	19.Gas post flow
4. 4T conttrol	12.BIG Adjust knob	20.AC frequency
5.2T control	13.Welding current	21.Cleaning width
6.Pulse welding	14.Pulse frequency	22.Adjust knob
7.Without pulse	15.Pulse width	23. Digital display
8.Pulse current	16.Adjust knob	24.Adjust knob

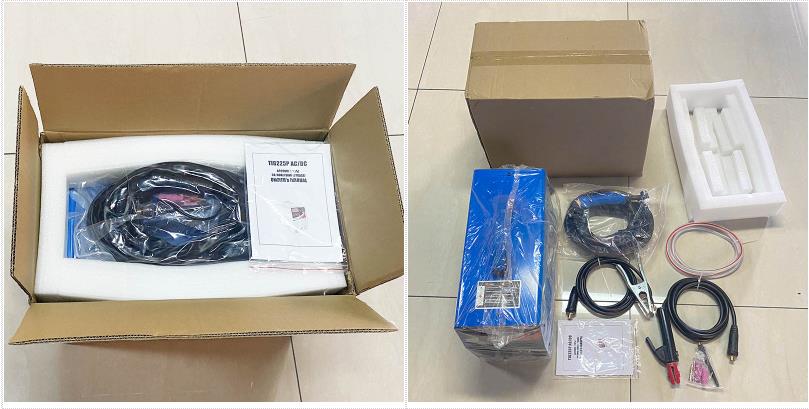

Packing & Delivery

Selling Units: Single item
Selling package size: 51X30X40 cm
Selling gross weight: 17.000 kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certification：CE
Usage：TIG DC,TIG AC ,PULSE and MMA welding
Dimensions： 45X20X35CM
Power(W)：7000
Rated Current：225 A
Input Voltage：220 V, One phase
Model Number：TIG225P

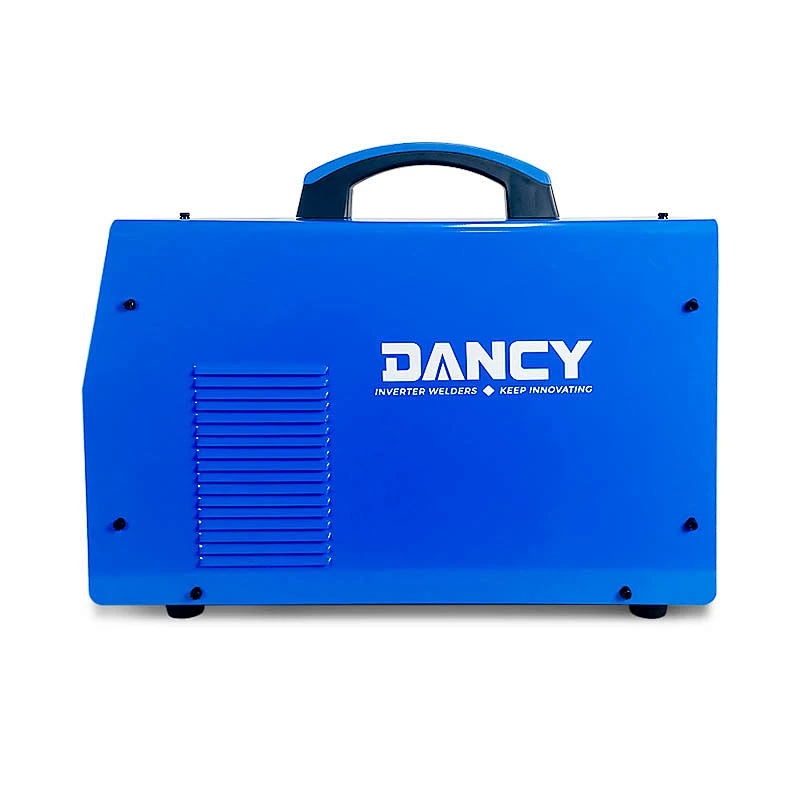

Brand Name：DANCY
Place of Origin：ZheJiang, China
Condition：New

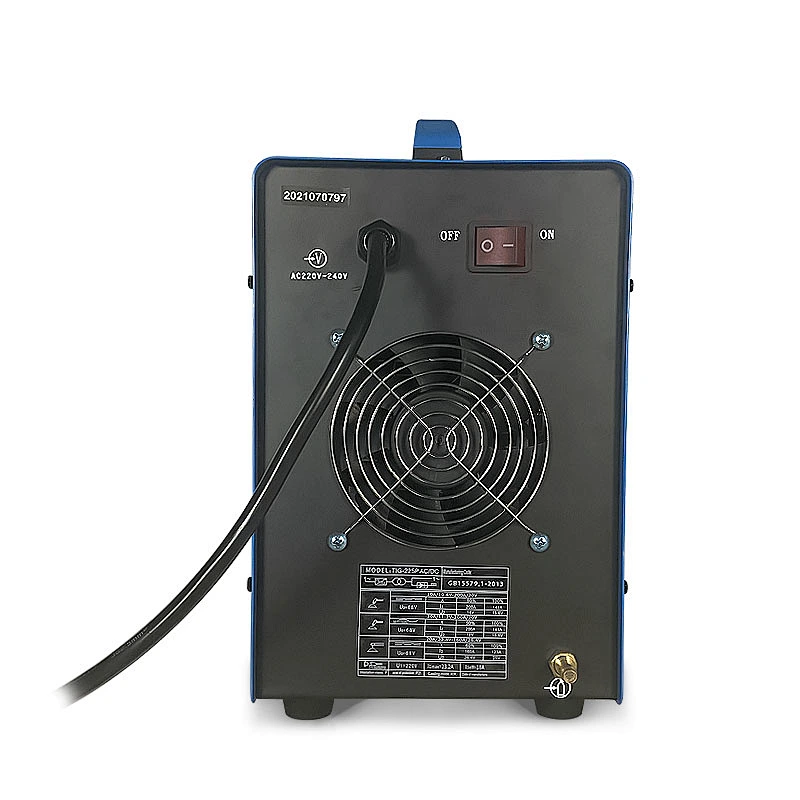

This machine is 220V inout,

It is great for AC/DC TIG, AC/DC Pulsed TIG, MMA.
Adopt IGBT inverter technology。
Suitable for aluminium and stainless stell welding/ Suitable for 6010 elecrtode

With big advantage of easy operation design / one press and hold for 3 seconds enter to aluminum welding presetting,very convenience for fast operation.
Remote Control for Trigger / Foot-pedal optional.
Great performance for aluminum welding.
