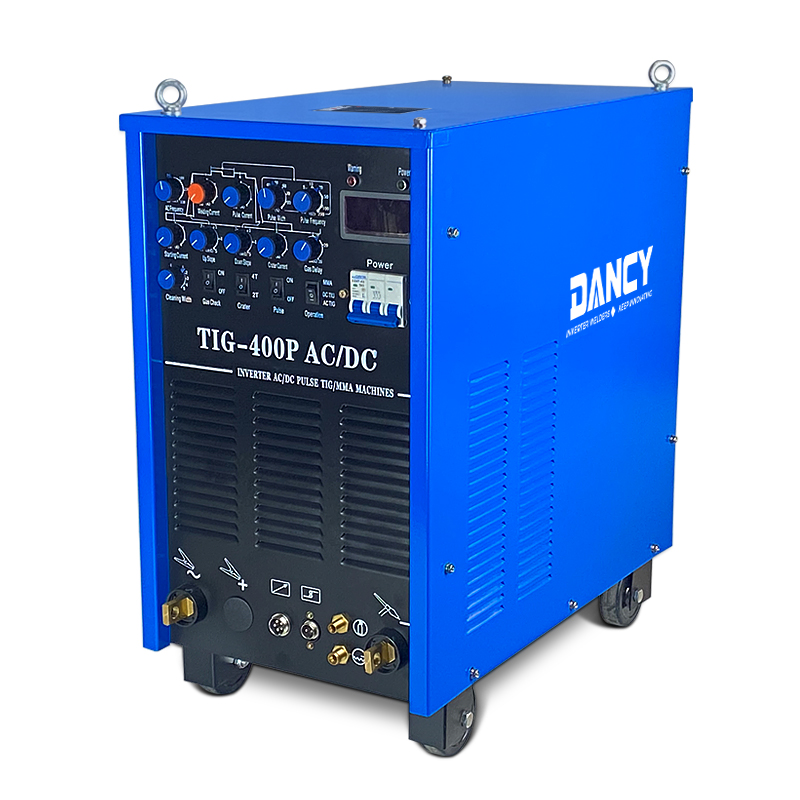

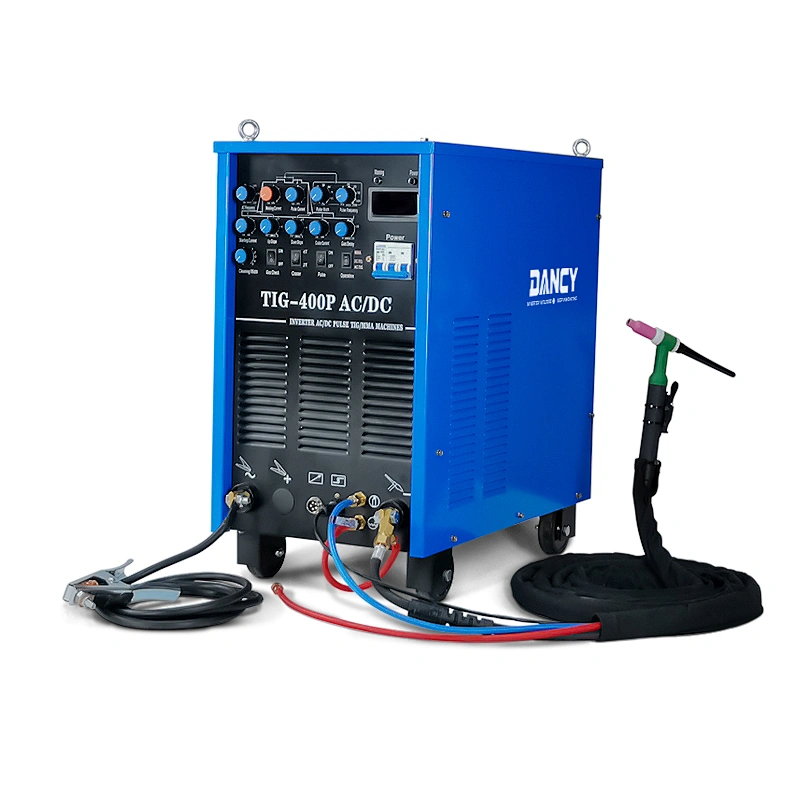

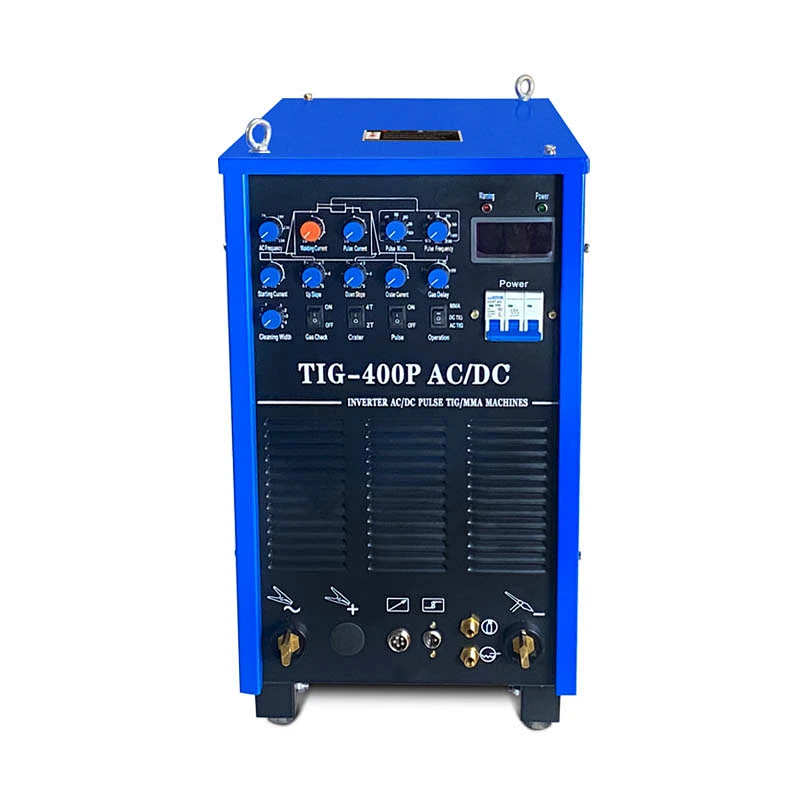

Ac dc pulse tig welder with foot pdeal control TIG400P inverter tig mma welding machine 380V,3PHASE

Ac dc pulse tig welder with foot pdeal control TIG400P inverter tig mma welding machine 380V,3PHASE

Model NO.: TIG400P(Code.202191)
Delivery: FOB/EXW/FCA
Minimum order quantity: 1 piece
Supply Ability: 2000 piece / Day
Country of Origin: China
Stock Time: 5-15 Days

PULSE FUNCTION - With tig pulse function, welding current will constantly changes from a high (peak) amperage down to a low (basic or background) current and back again automatically. This allows for welding thinner metals and high heat conductive metals without burning through. On thicker metals you can achieve tighter narrower more penetrating welds.
This welder comes with arc force, anti stick function. Easy to strike an arc, little spatter, stable current, and good performance.

Quantity:

Video Description

Specification

TIG400P TECHNICAL SPECIFICATION
Input voltage	3 phase ,AC380V	Pulse width ratio	0.2-0.8
Rated output current	400A	Down slope time	0.1-5.0S
Rated output voltage	22.0V	Crater arc current	10-400A
Rated input power	13.5KVA	Gas delay	5s-25s
No-load voltage	65V	Clean width	25%-75%
Display Current range	10-400A	AC frequency	50-150HZ
Start arc current	10-400A	Duty cycle	370A@40%@40°C
Up-Slope time	0.1-5S	Efficiency	83%
Pulse current	10-400A	Protection	IP21S
Welding Current	10-400A	Machine size	56X30X45CM
Pulse frequency	0.5-50HZ	Machine Gross Weight	41.0KGS

Product Description

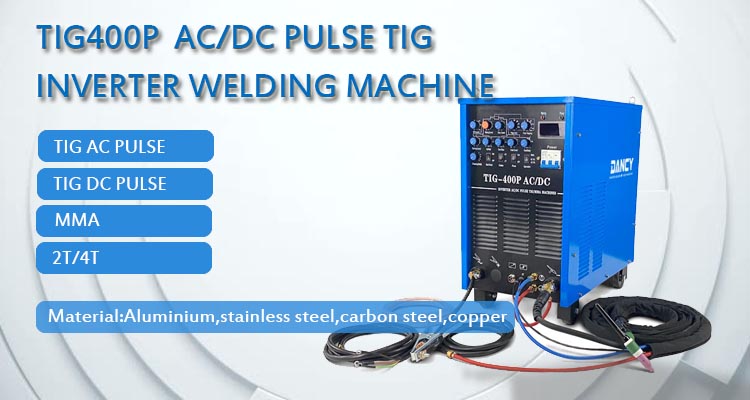

AC DC PULSE TIG WELDER MACHINE TIG400P,FAST SUPPLY FROM STOCK

1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA.
Suitable For Aluminum and Stainless Steel tig Welding
Suitable for 6010 7018 Electrode manual welding.
2.Updated inverter IGBT module technology.
3. With big advantage of easy operation design of aluminum welding.very easy operation
4. Remote Control for Trigger / Foot-pedal optional.
5. machine fitted with wheel,easy to move.
6.Great performance for aluminum welding.Please check the video
7.Foot pedal is at option.

Details Images

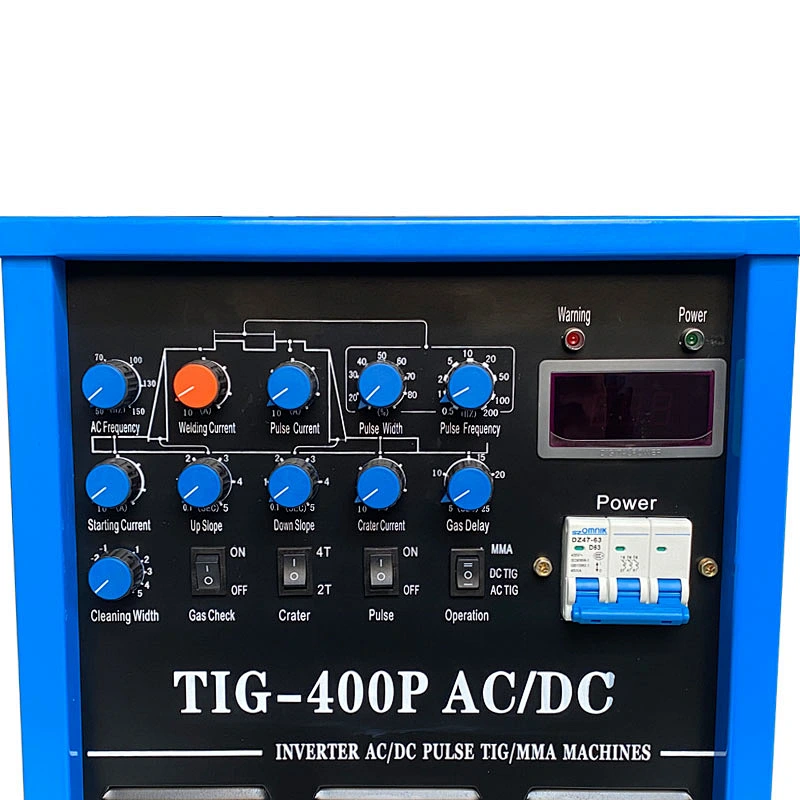

1.AC frequency	2.Welding Current	3.Pulse Current	4.Pulse width	5.Pulse frequency
6.Starting current	7.Up slope	8.Down slope	9.Crater Current	10.Gas delay
11.Cleaning width	12.Gas check	13. 2T/4T	14.Pulse switch	15.AC DC TIG/MMA
16.Warning indicator	17.Power indicator	18.Display	19. Power switch

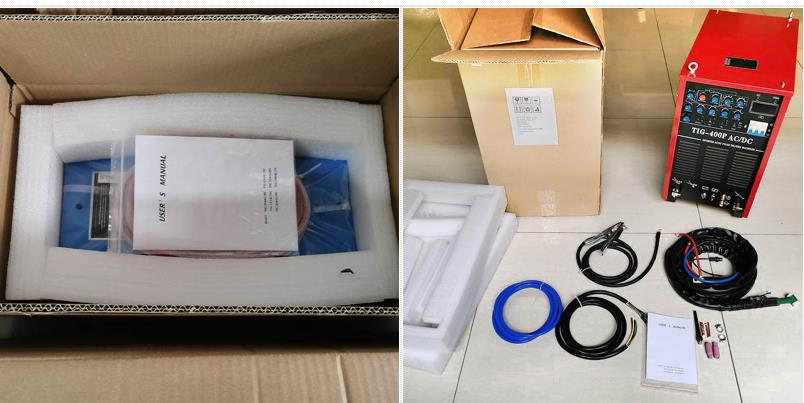

Packing & Delivery

Selling Units: Single item
Selling package size: 69X42X69 cm
Selling gross weight: 41.000 kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certification：CE
Usage： TIG DC,TIG AC ,PULSE and MMA welding

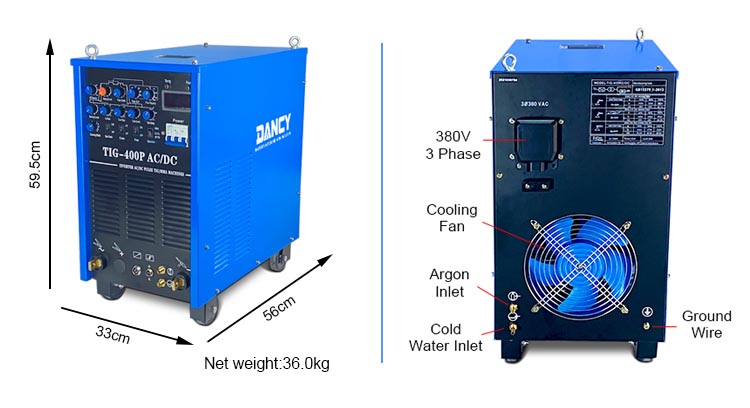

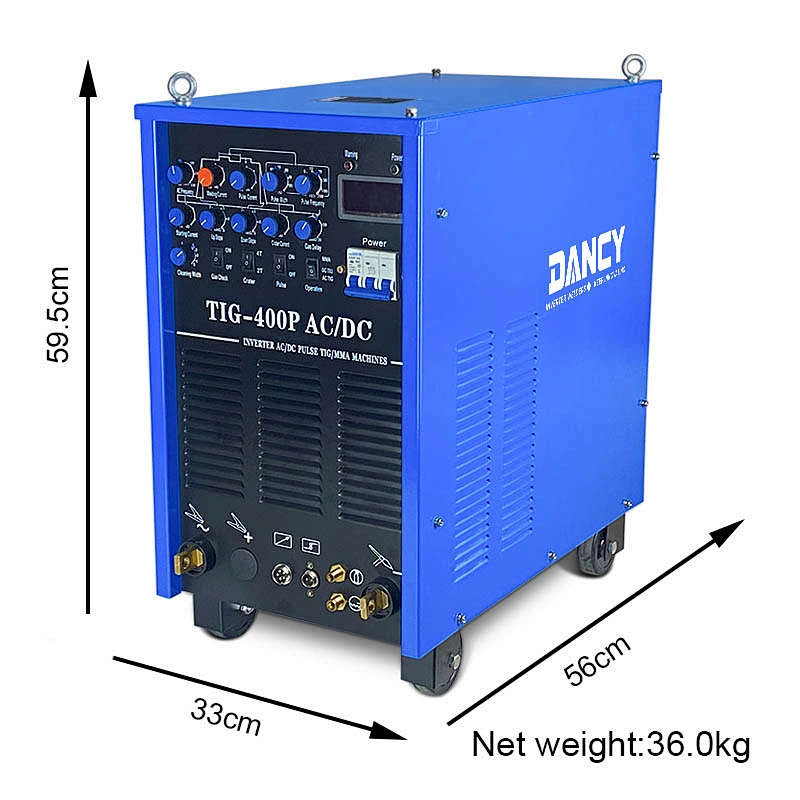

Dimensions： 56X30X45cm
Power(W)：13500
Rated Current：400A
Input Voltage：380V, Three phase
Model Number：TIG400P
Brand Name：DANCY
Place of Origin：ZheJiang, China
Condition：New

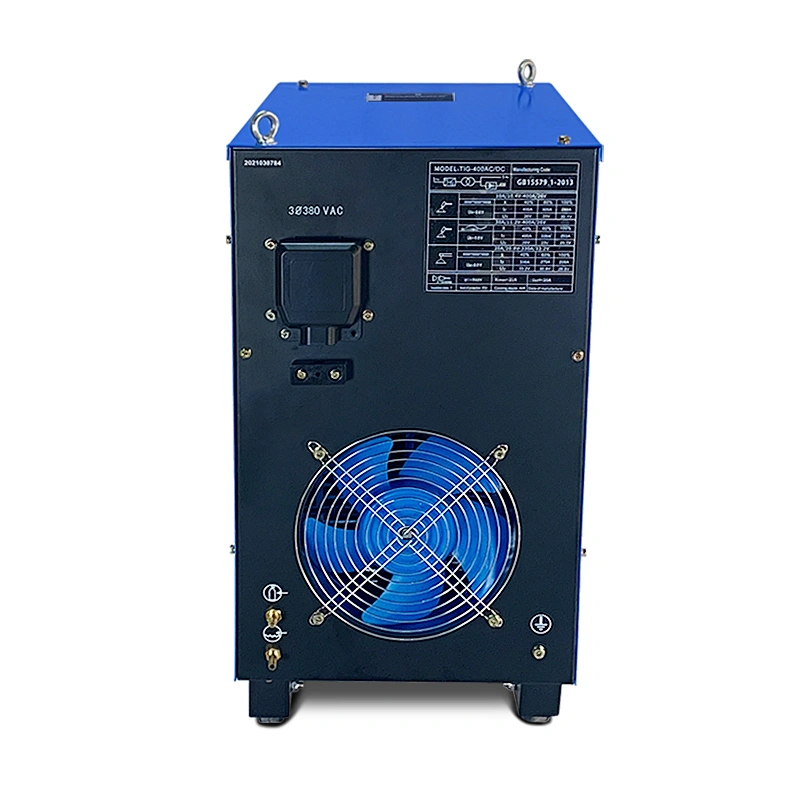

This machine input power is 380V 3 phase.
It is great for AC/DC TIG, AC/DC Pulsed TIG, MMA.
Suitable For Aluminum and Stainless Steel tig Welding
Suitable for 6010 7018 Electrode manual welding.

Updated inverter IGBT module technology.
With big advantage of easy operation design of aluminum welding.very easy operation
Great performance for aluminum welding.Please check the video
