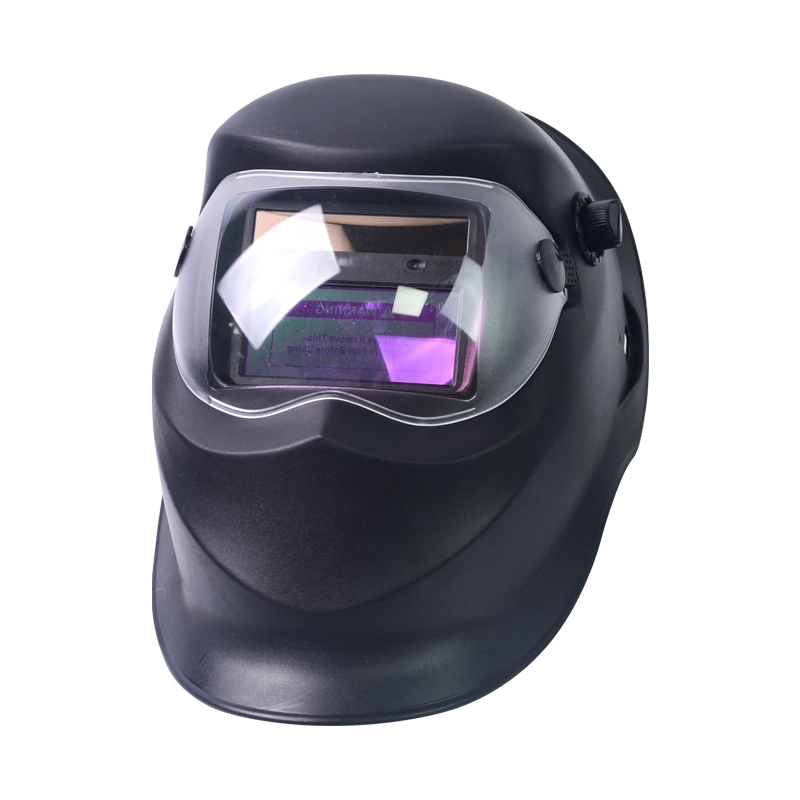

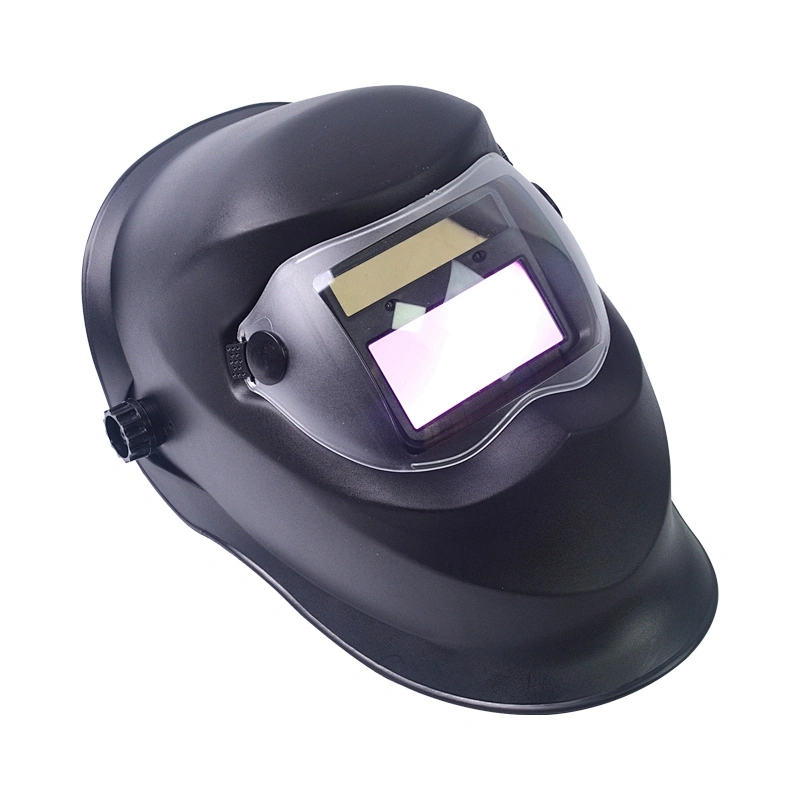

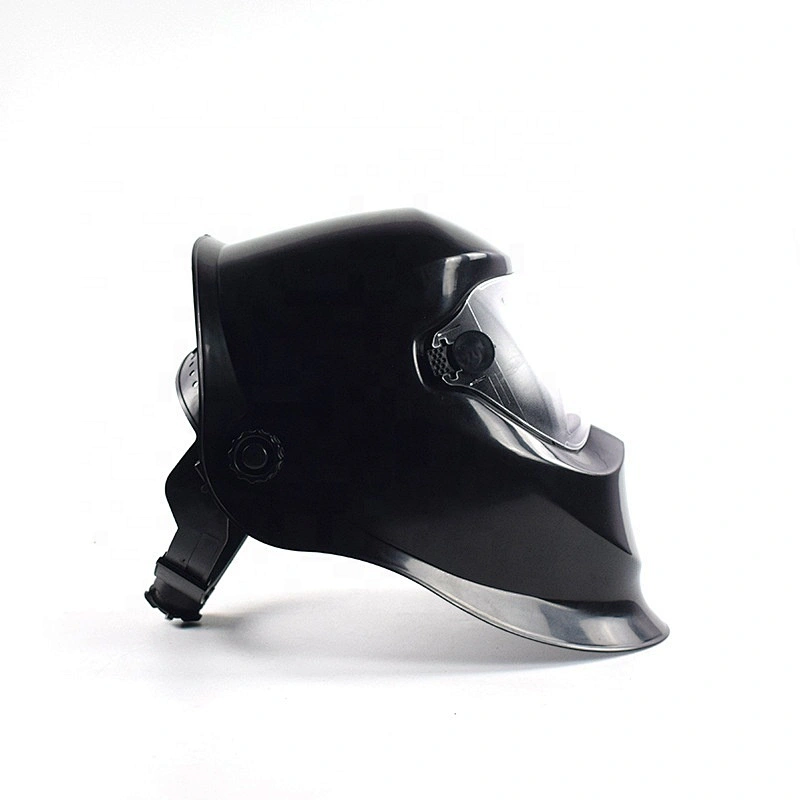

Commercial automatic darkening welding helmet for simple and conveneint welding use

Video Description

---

Specification

---

Name	welding mask
model	E-1
weight	500g
size	23.5*29*24.5cm
view size	9*3.2cm
material	PP
color	black

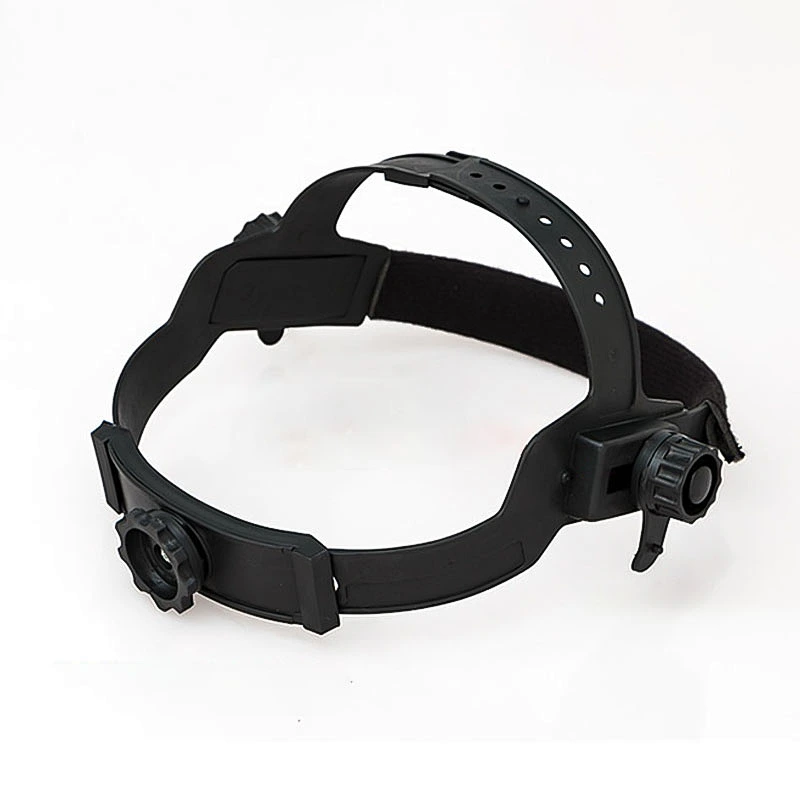

headgear	Adjustable size, suitable for any head shape
use	Welding work, protect eyes and face

Product Description

---

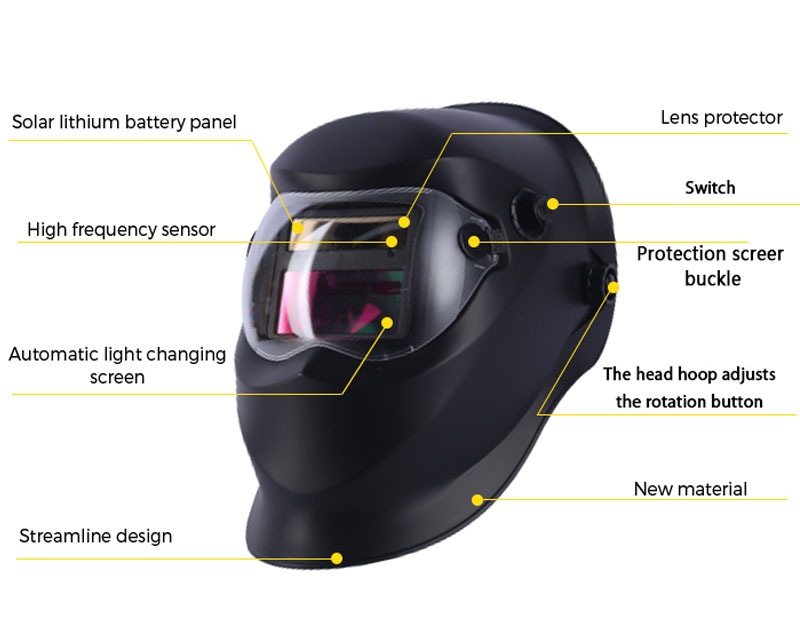

Welding protective face shield welder mask welding helmets

1.PP material  is strong enough to impact resistant.
2.Anti-UV and IR lenses adopted can protect user's eyes soundly
3.Adjustable design to fit everyone's requirements.
4.OEM and ODM
5.Top quality and continuous wear.
6.Color can change according your demand.
7.Welding helmets provides excellent electrical insulation
8.Adapt for  simple welding use.
9.Flip up front welding helmet design, easy to change the glass.

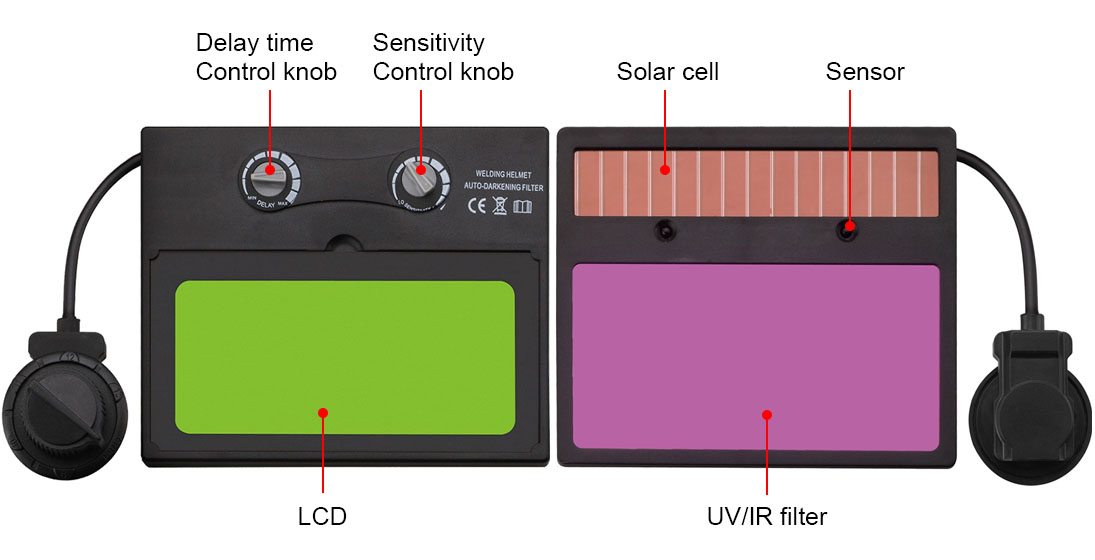

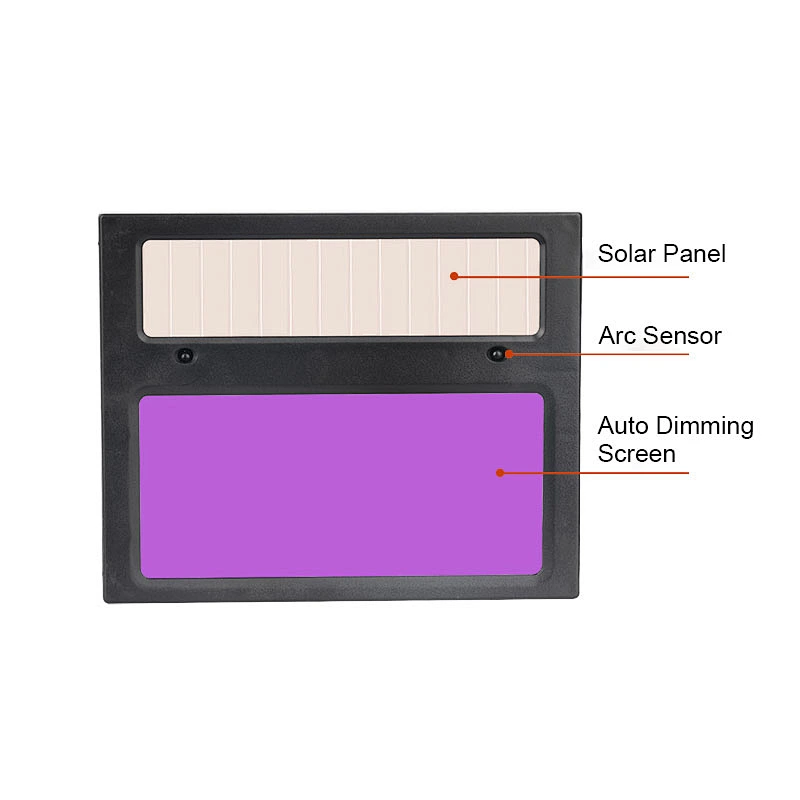

Auto-Darken-Filter

---

Parameters	ADF-609
Optical Class	1/2/1/2
Viewing Area	92x42mm
Cartridge Size	110x90x9mm
Arc Sensor	2
Light State	DIN 4
Dark State	Variable shade, 9 ~13
Shade Control	External,Variable
Power On/Off	Fully Automatic
Sensitivity Control	Low-High, by infinitely dial knob
UV/IR Protection	DIN 16
Power Supply	Solar cell. Re-chargeable Battery no battery change required
Switching Time	1/15000S,from Light to Dark
Dark to Light	0.1-1.0S by infinitely dial knob
Low Amperage TIG	≥10amps(DC),≥10amps(AC)
Grinding Function	YES
Low Volume Alarm	NO
ADF self-check	NO
Operating Tep	--5℃~+55℃
Storing Tep	-20℃~+70℃
Warranty	1 Year
Weight	490g
Packing Size	33x23x23cm

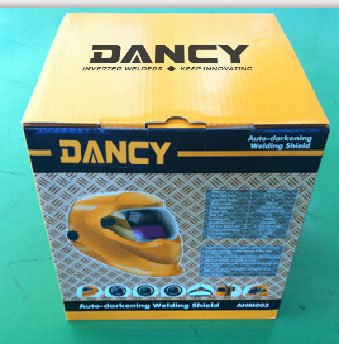

Packing & Delivery

---

4pcs welding helmet in one carton
GW/NW: 5kgs/2kgs
Measure: 54*50*32cm

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
