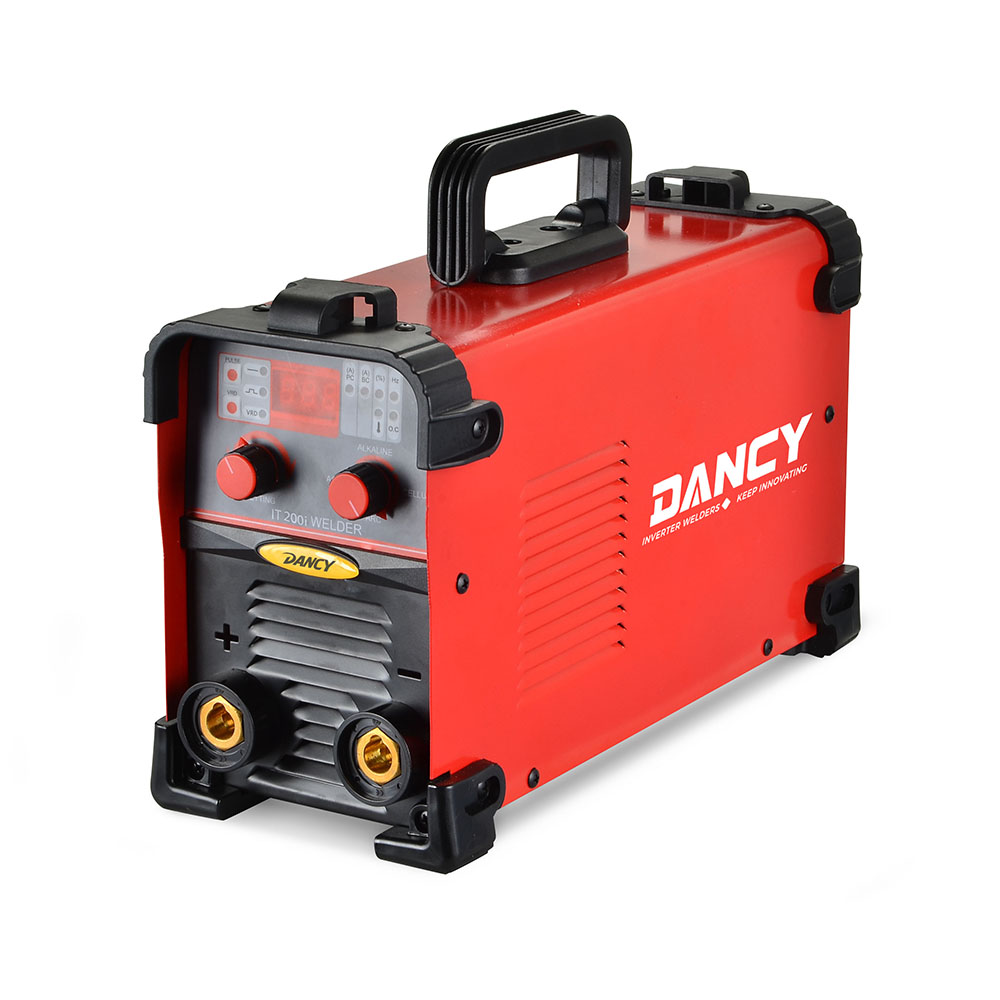

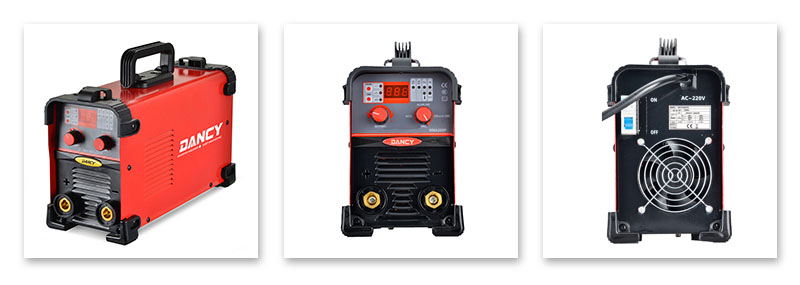

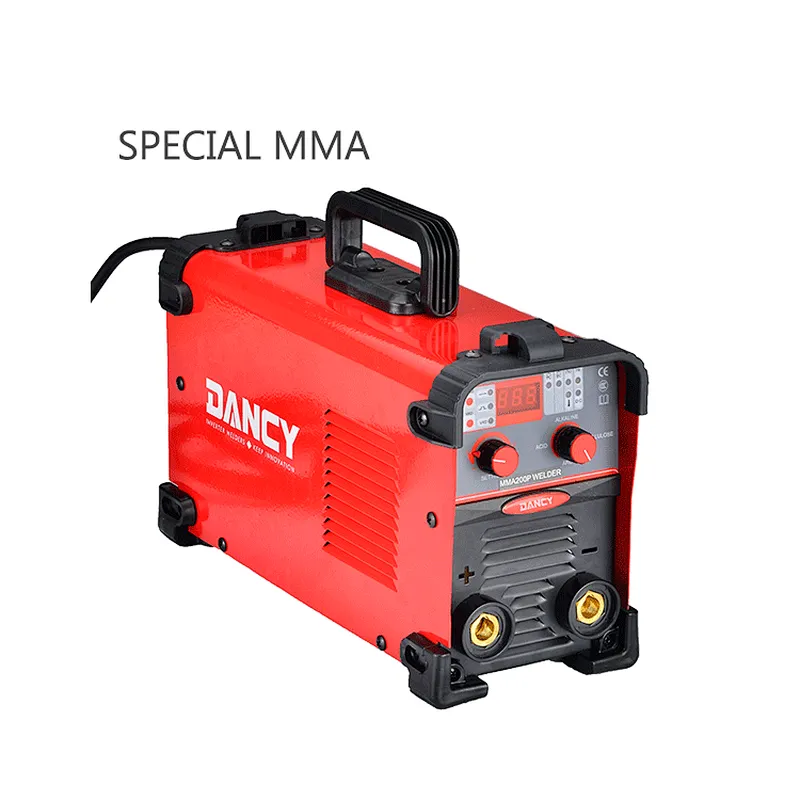

MMA Welder 200Amp DC Arc inverter welding machine MMA200 110/220V Dual Voltage

Specification

---

MODEL	MMA200P
Voltage	220V/110V
Power consumption max.	6.5KVA
No-load Voltage	75V+5V
MMA welding current	20-200A
Rated input current	200A
Power factor	0.8
Duty-cycle	60%
Insulation class	IP21S
Protection class	F
Weight	6KG

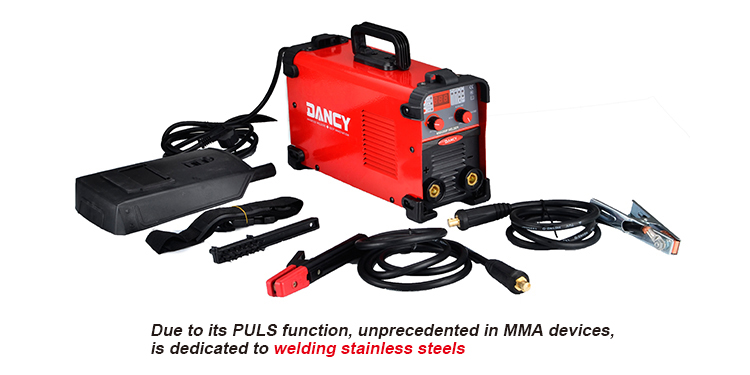

Big advantage	The MMA200P Puls device, due to its PULS function, unprecedented in MMA devices, is dedicated to welding stainless steels. The appearance and quality of the connection that can be obtained is similar to a weld made with the TIG method

Product Description

---

Weld alkaline, acidic, cellulose, rutile electrode pulse IGBT MMA200P arc welder

•1) Pulsed arc
•2) When welding steel,specially stainless steel,you can get the appearance and quality of the joint similar to a TIG weld.
•3) Dedicated to welding with all types of welding electrodes, regardless of the type of coating (alkaline, acidic, cellulose, rutile, mixed)
•4) VRD Safety deivce (Voltage Reduction Device)

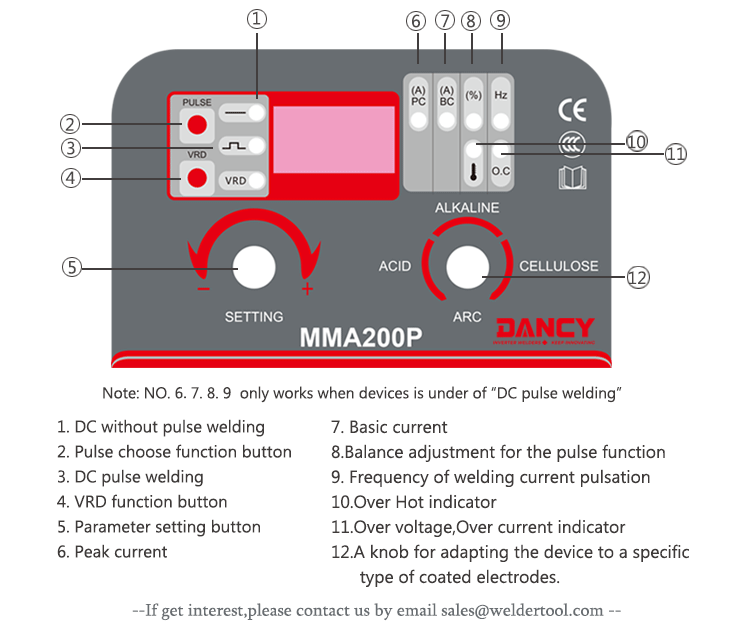

•5) Simple interface for easy operation,show all date directly with display
•6) Over current,over voltage,over hot protection
•7) Synergic Control - Set parameters with easy operation.
•8) Excellent arc stability in all welding positions and for a wide range of electrode types up to 5 mm electrodes, with large voltage
      reserves and automatic arc force control
•9) Compatiable generator, wide voltage 155-270V

Packing & Delivery

---

Selling Units:                           Single item
Selling package size:              60*51*30 cm
Selling gross weight:               16.500kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
