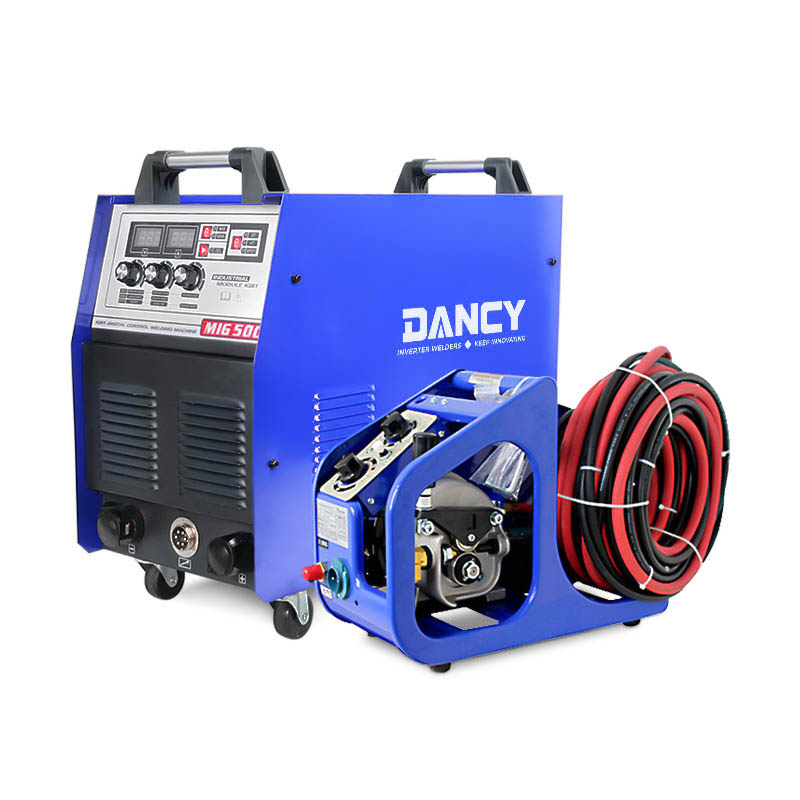

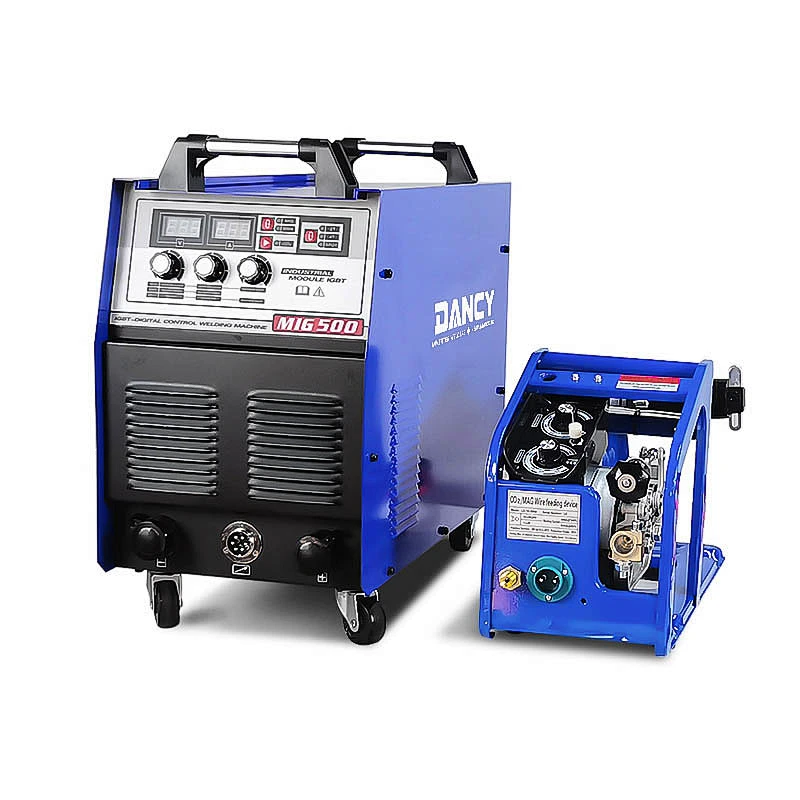

MIG500 380V industrial 4-roll geared wire feeder inverter IGBT module tech good for carbon/aluminum welding

MIG500 380V industrial 4-roll geared wire feeder inverter IGBT module tech good for carbon/aluminum welding

Model NO.: MIG500(Code.202161)
Delivery: FOB/EXW/FCA
Minimum order quantity: 5 pieces
Supply Ability: 2000 pieces / Day
Country of Origin: China
Stock Time: 3-15 Days

MIG MAG 500amp Inverter IGBT welding machine with MIG and MMA function, big power good for industrial aluminum welding

Quantity:

Video Description

Specification

MIG500	Technical Data
Material / Metal Processed	Carbon Steel and aluminium
Rated Input Voltage	380V±15%,50/60Hz
Wire Melting Type	Spray transfer
Max. Load Power Capacity	25.0KVA
Rated Output Current (MIG)	20-500A
Rated Output Voltage (MIG)	50V
Rated Duty Cycle @40°C (MIG)	40%@500A, 100%@350A
Wire Feeding Speed	24m/min
Condition	New
Dimensions for machine	532746cm(main engine) 5020.530(wire feeder)
Net Weight (KG) for machine	32.50KGS(main engine) 19.5KGS(wire feeder)
Warranty	1 Year
After Warranty Service	Free spare parts, Video technical support
Key Selling Points	Good for carbon steel and aluminum welding
Application	MIG and MAG,MMA
Gas Flow	Co2/Mixed Gas
Wire diameter	0.8mm,1.0mm,1.2mm
Technology	Inverter IGBT Module Technology

Product Description

MIG/MAG/CO2 Welding Inverter MIG 500 Welding Machine IGBT MIG Welding Machine

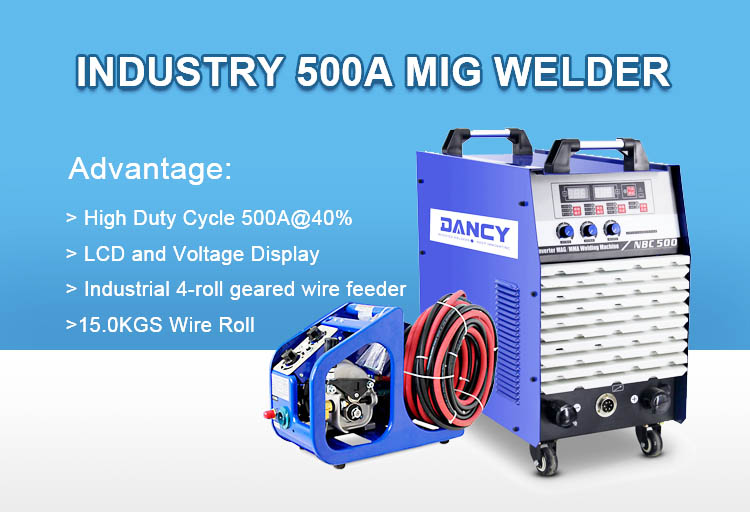

1. High duty cycle of 40% at 500 amps, 100% at 300 amps
2. Industrial robust chassis,Industrial 4-roll geared wire feed mechanism

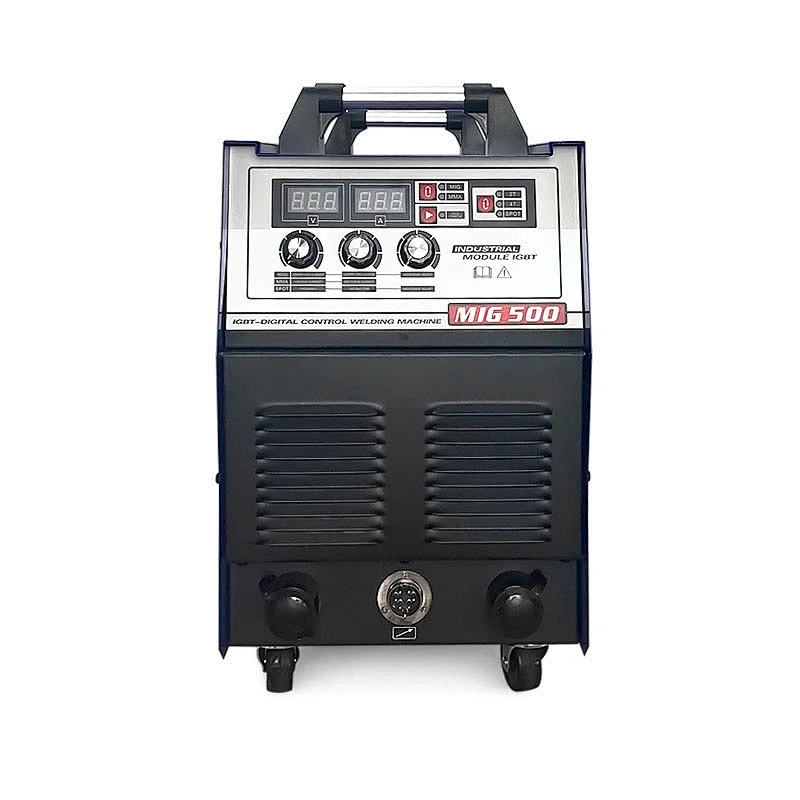

3. Digital Display amp and voltage display
4. Ideal for welding steels & aluminium (with alloy roller kit)
5. 15KG reel capacity

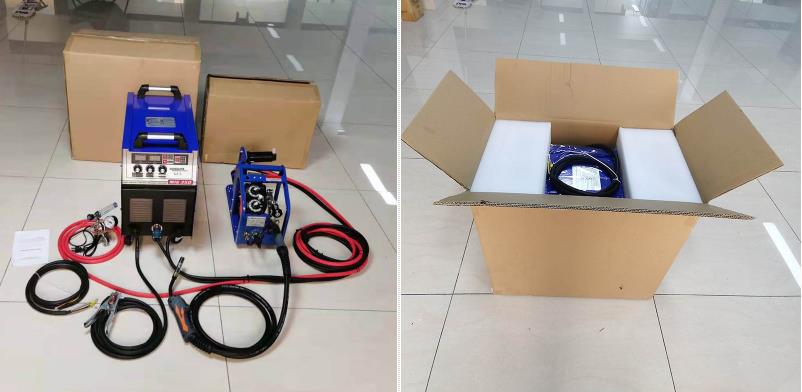

Packing & Delivery

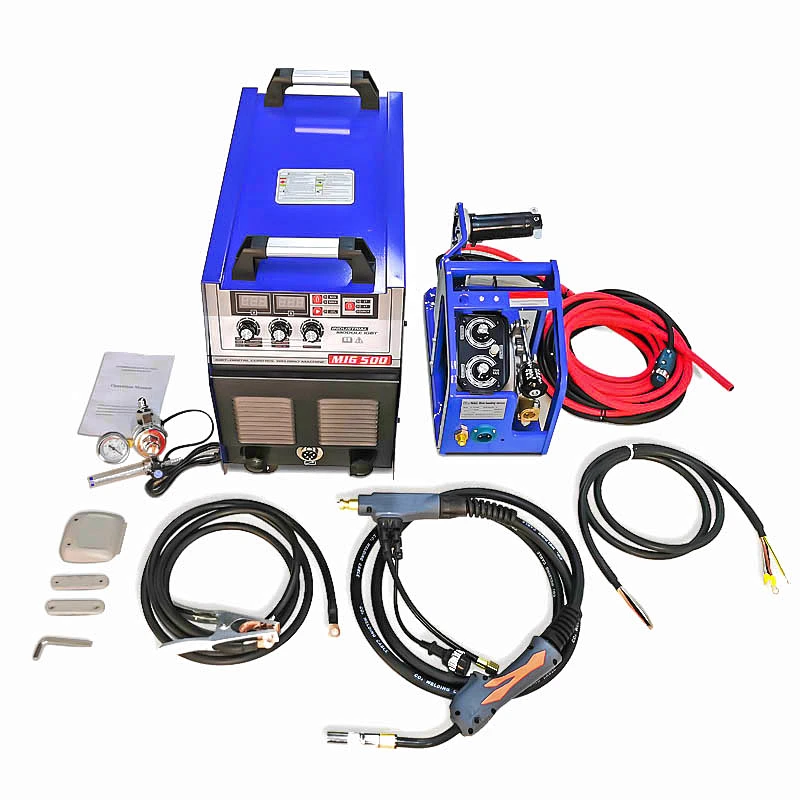

Selling Units: Single item
Selling package size: 63.3*36.8*57.8cm(main engine)
65*28*44cm(wire feeder)
Selling gross weight: 37.000KGS(main engine)
20.500KGS(wire feeder)

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Warranty：1 year
Certification：CE
Power(W)：25.0KVA
Voltage：380V±15%
Usage：MIG MAG and MMA welding
Weight：32.50KGS(main engine) 19.5KGS(wire feeder)

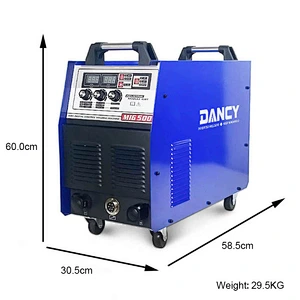

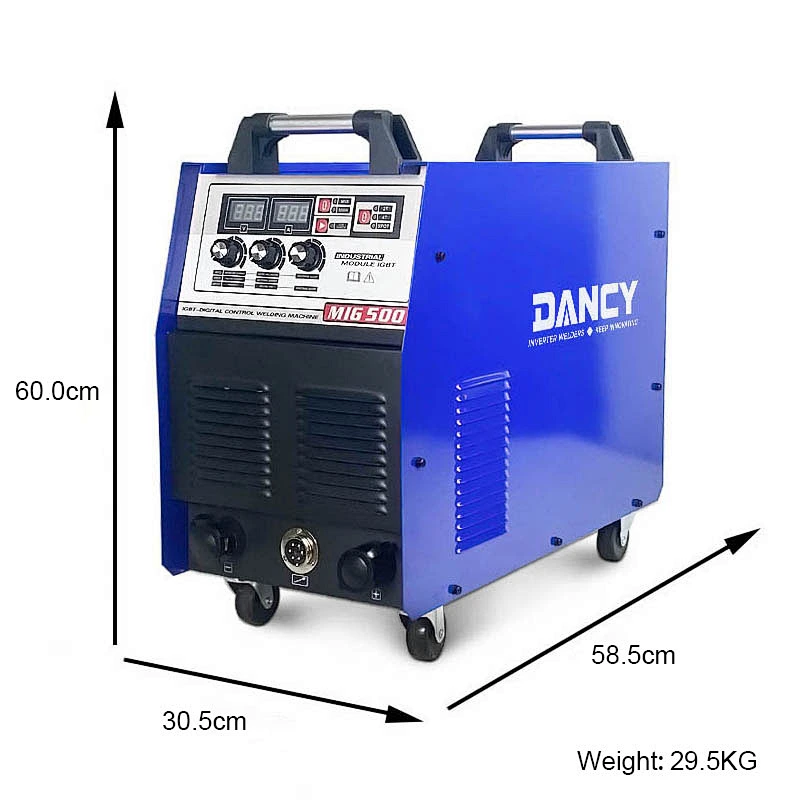

Dimensions：53*27*46cm(main engine) 50*20.5*30(wire feeder)
Wire Feeding Speed：24m/min
Model Number：MIG500
Brand Name：DANCY
Place of Origin：Zhejiang, China
Condition：New

This MIG MAG MMA 500 inverter IGBT industrial welder, with MIG and MMA function. Its input voltage can be produced to 380V. If you area serious fabricator and are needing more MIG welding power while keeping things simple, without a lot of in depth training and extra knowledge, the Power i-MIG 500 deserves a closer look. And this new digital IGBT inverter based MIG/Stick welding unit is designed with simplicity and reliability in mind. If you push it to the maximum rating, the unit can handle a full 500 amps with a respectable 40% duty cycle, also it can handle 350amp with 100% duty cycle.
