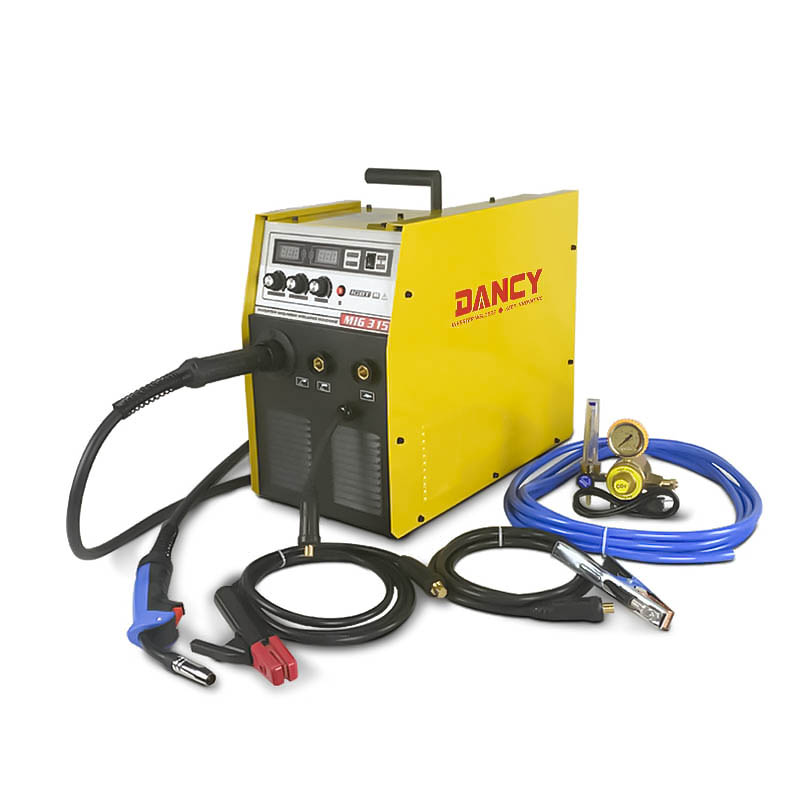

MIG315 MIG/MAG/MMA multi process with 15KGS wire spool big power 315A good for aluminum welding

MIG315 MIG/MAG/MMA multi process with 15KGS wire spool big power 315A good for aluminum welding

Model NO.: MIG315(Code.202159)
Delivery: FOB/EXW/FCA
Minimum order quantity: 5 pieces
Supply Ability: 2000 pieces / Day
Country of Origin: China
Stock Time: 3-15 Days

MIG MAG 315amp Inverter IGBT welding machine with MIG and MMA function, 15KGS wire capacity, big power good for industrial aluminum welding

Quantity:

Video Description

Specification

Model	MIG315
Input	380V±15%,50/60Hz
Process	MIG MAG MMA
WIRE	Solid wire with gas support ; flux cored wire without gas support
Power consumption max	13.0KVA
MMA welding current	20-315A
MIG welding current	20-315A
Rated input current	19.7A
wire diameter	0.8/1.0/1.2mm
Duty cycle	40% @ 315A, 100% @230A
Wire speed range	24m/min
Wire Spool Capacity	15.0kgs
Product size	512644.5cm
Net Weight	22.5kgs

Product Description

MIG315 MIG/MAG/MMA multi process with 15KGS wire spool big power 315A good for aluminum welding

1. Reliable quality, MIG/MAG/MMA multi process
2. Easy operation
3. Introduce for aluminium and carbon steel.
4. Over Hot,Over Load,Over Voltage protection
5. Co2 Gas Welding
6. Light weight
7. Advantaged Inverter IGBT technology

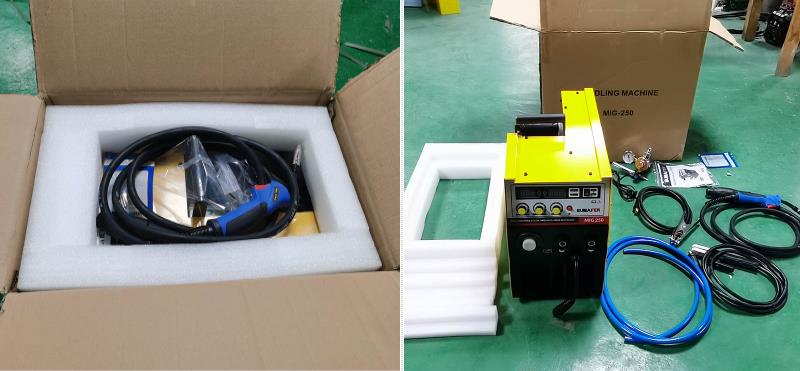

Packing & Delivery

Selling Units: Single item
Selling package size: 61*36*57cm
Selling gross weight: 29.500kgs

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Warranty：1 year
Certification：CE
Power(W)：13.0KVA
Voltage：380V±15%
Usage：MIG MAG and MMA welding
Weight：22.5kgs

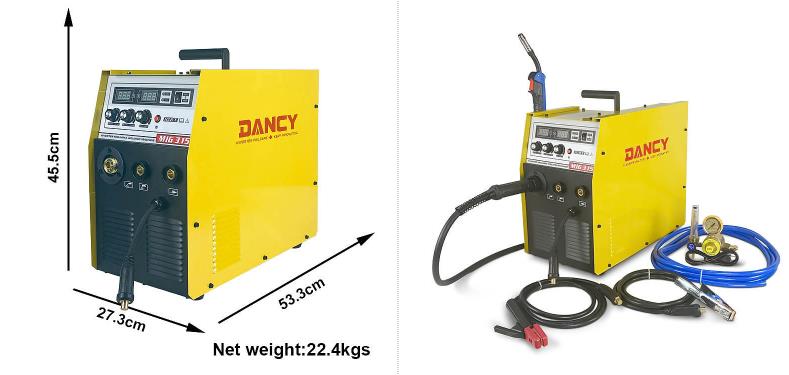

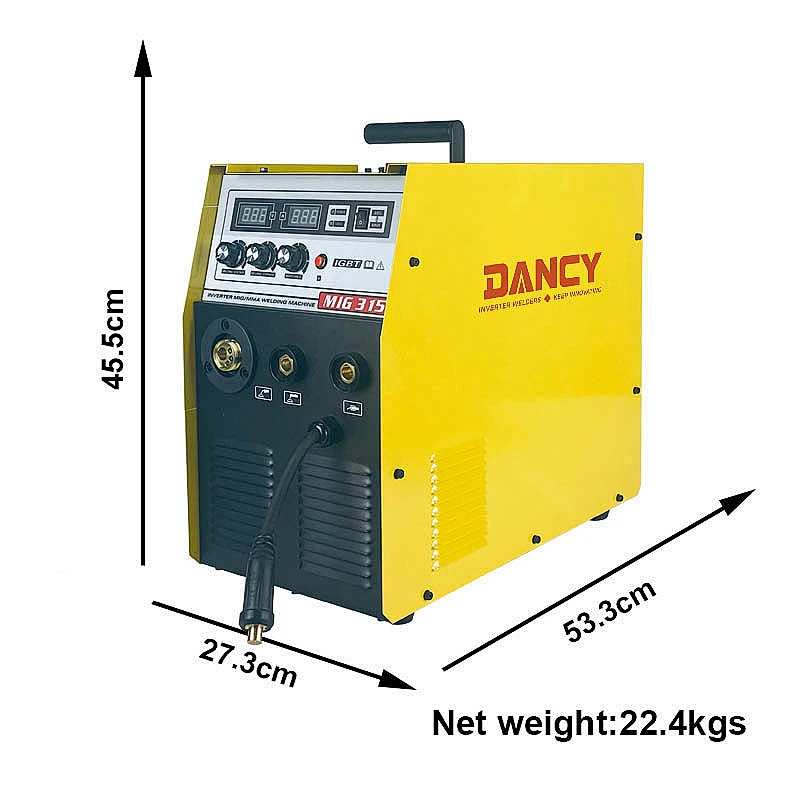

Dimensions：51*26*44.5cm
Wire Feeding Speed：24m/min
Model Number：MIG315
Brand Name：DANCY
Place of Origin：Zhejiang, China
Condition：New

This MIG MAG MMA 315 inverter IGBT industrial welder, with MIG and MMA function and 15 KGS wire capacity. Its input voltage can be produced to 380V. If you area serious fabricator and are needing more MIG welding power while keeping things simple, without a lot of in depth training and extra knowledge, the Power i-MIG 315 deserves a closer look. And this new digital IGBT inverter based MIG/Stick welding unit is designed with simplicity and reliability in mind. If you push it to the maximum rating, the unit can handle a full 315 amps with a respectable 40% duty cycle, also it can handle 230amp with 100% duty cycle.
