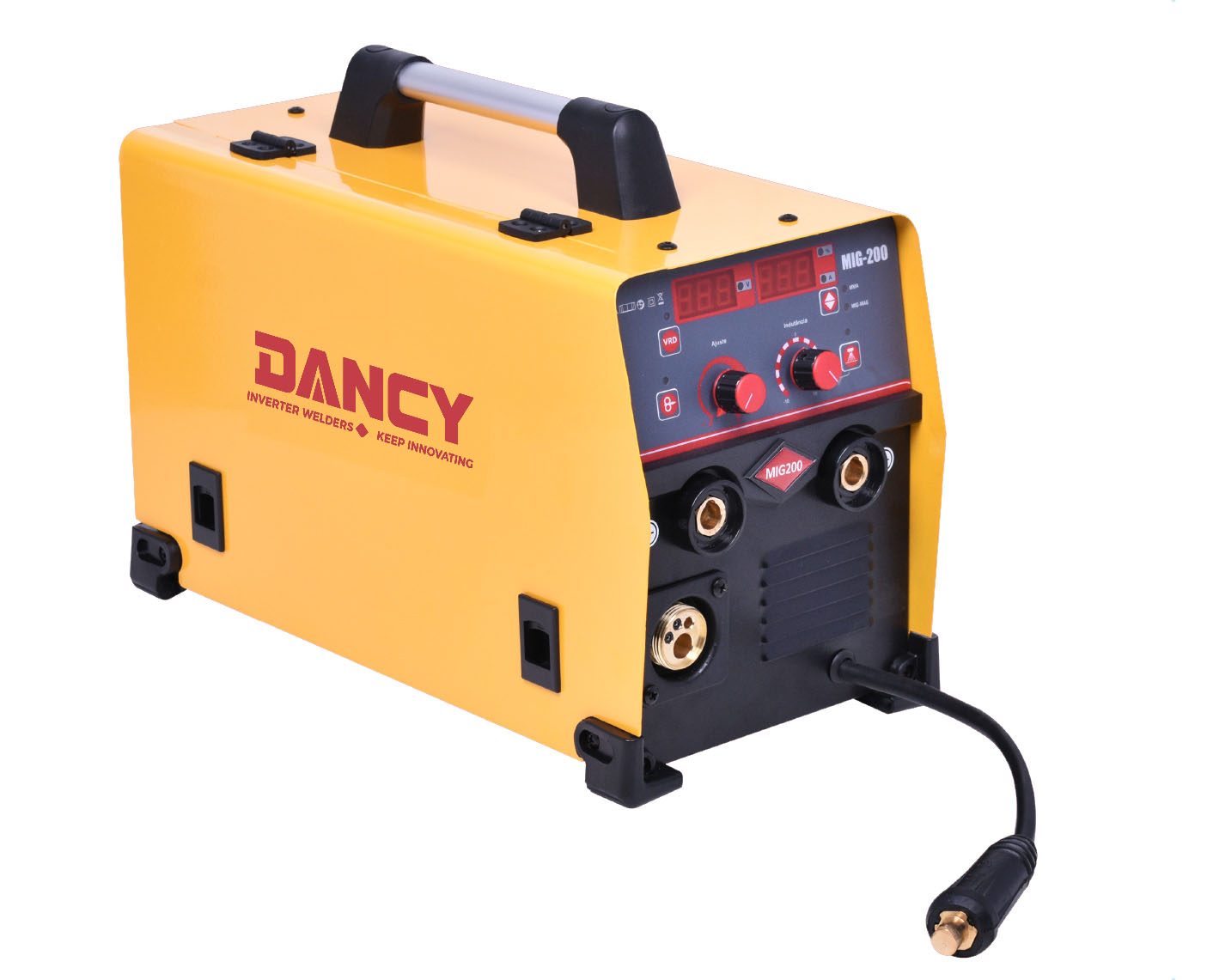

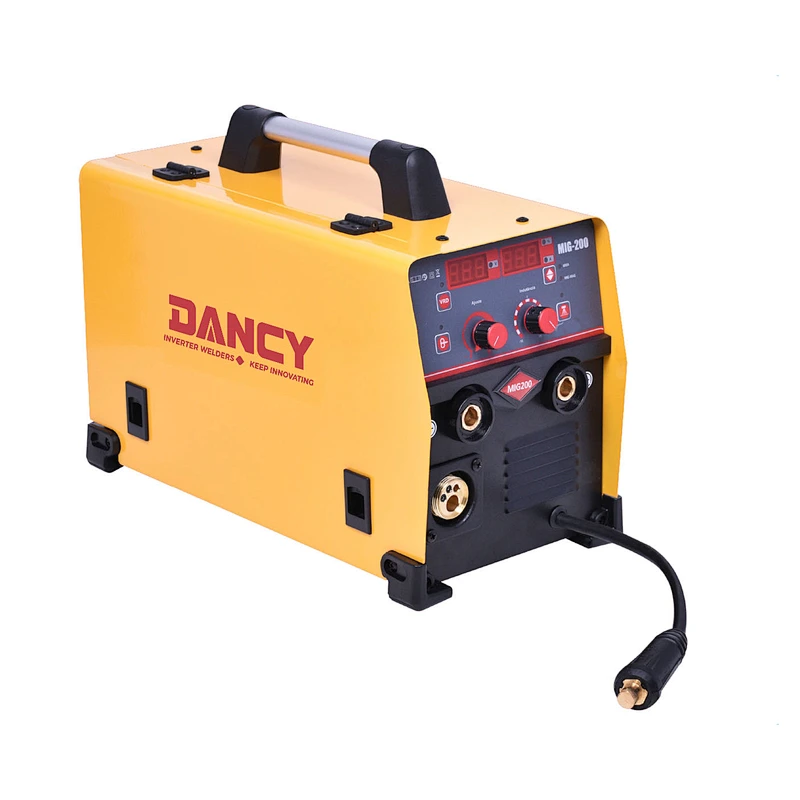

MAG MIG 200A inverter IGBT portable gas and gasless mig welding machine with 5 kgs wire capacity

MAG MIG 200A inverter IGBT portable gas and gasless mig welding machine with 5 kgs wire capacity

Model NO.: MIG200(Code.202154)
Delivery: FOB/EXW/FCA
Minimum order quantity: 5 pieces
Supply Ability: 2000 pieces / Day
Country of Origin: China
Stock Time: 3-15 Days

Input voltage: 220V Rated output current: 200A MIG 180A MMA
Both gas and gasless welding, and combines MIG MAG MMA in one device.
Good on carbon steel welding

Quantity:

Video Description

Specification

Model	MIG200 (MIG220)
Input	220V±15%
Process	MIG.MAG.MMA
WIRE	Solid wire with gas support ; flux cored wire without gas support
Power consumption max	6.5KVA
No load voltage	75V±5V
MMA welding current	20-180A
MIG welding current	20-200A
Rated input current	29.5A
Duty cycle	40% @ 200A 100% @160A
Wire speed range	15m/min

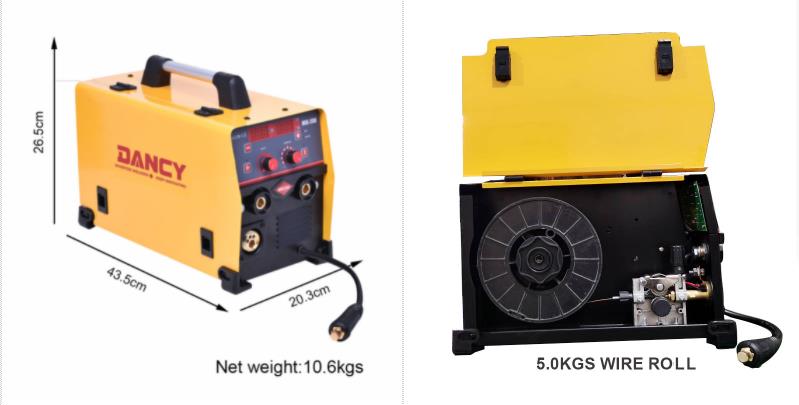

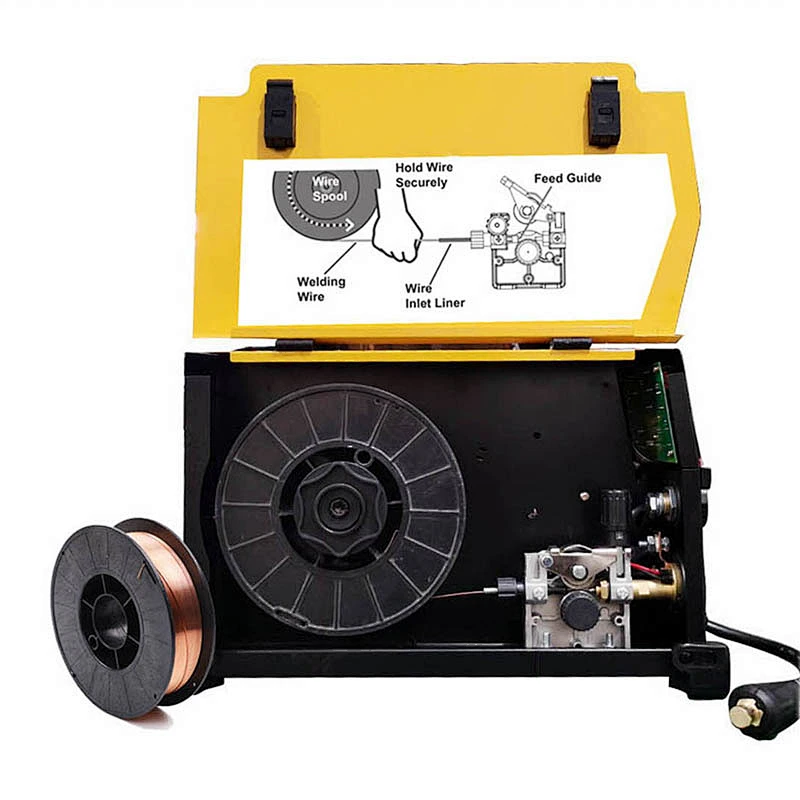

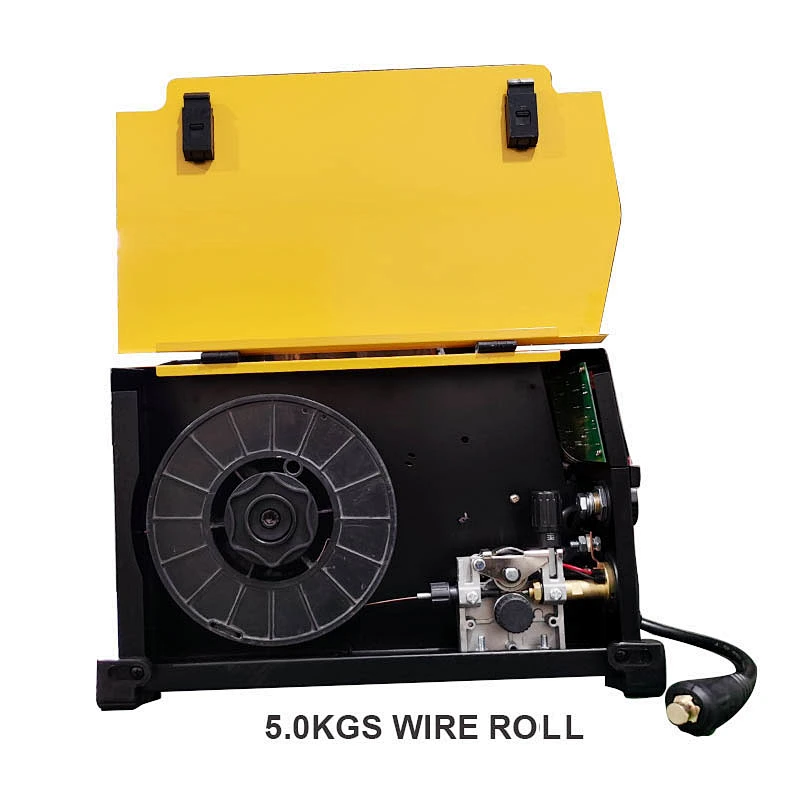

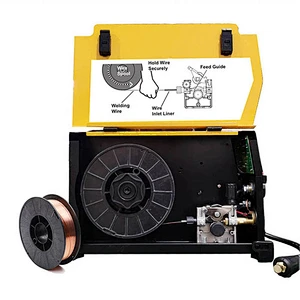

Wire Spool Capacity	5.0kgs
Product demension	482930cm
Net Weight	15.0kgs

Product Description

MAG MIG 200A inverter IGBT portable gas and gasless mig welding machine with 5 kgs wire capacity

This model MIG160-MIG200, it is ideal choice MIG MAG welder for entry-level men,very easy to use even without any welding
experience.It is small size,compact,Super mobility of weight 11kg can let you do welding everywhere. It get mutual process in
economical cost, it bring you MMA process so it could be also used for electrodes. Apply inverter IGBT technology, our mig
welder offering fast arc response and precise arc ignition, it is most widely used for common welding needs.k.

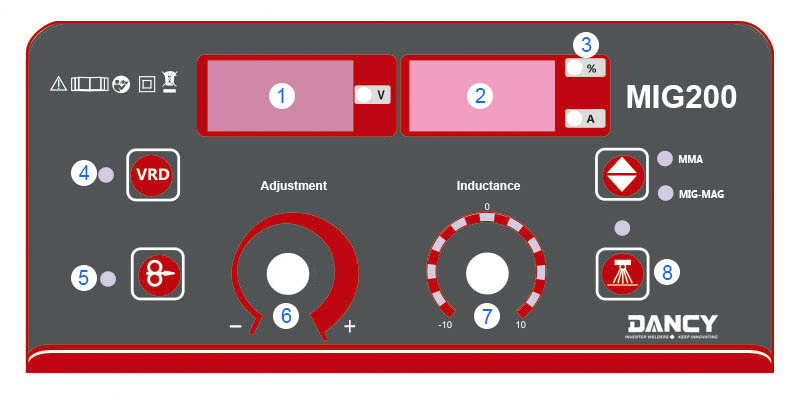

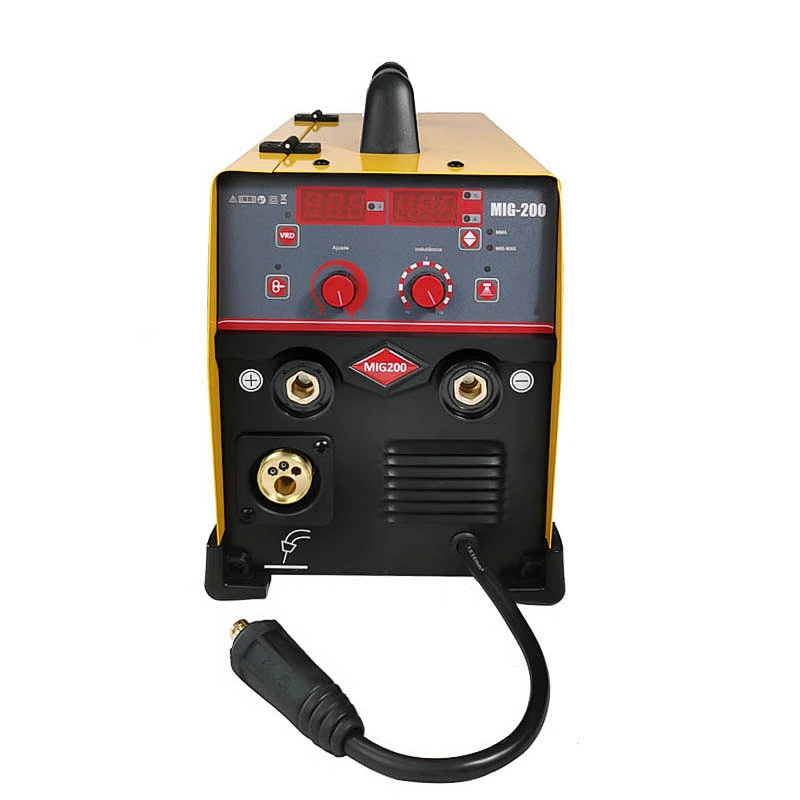

Details Images

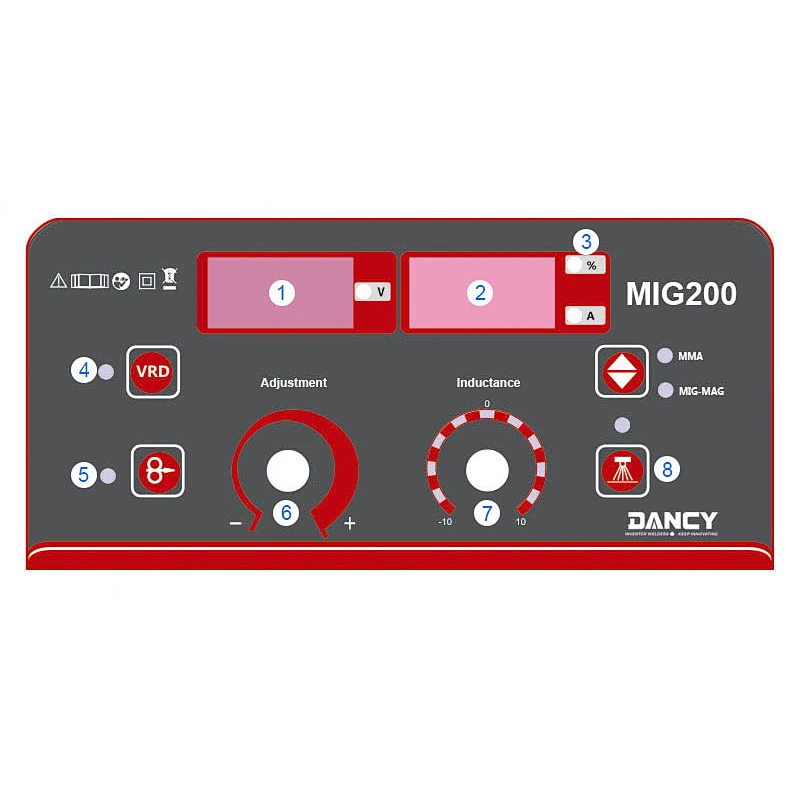

1	Digital Display for MIG output voltage
2	Digital Display for MIG and MMA current output
3	Percent for inductanct (7) and fine adjustment (8)
4	Device for reduce voltage when unload
5	Fast wire
6	Knob for Unified regulation of voltage and wire speed into one setting.Continue to press it and turn the knob,the current will be adjusted ±10%
7	Knob for Inductance adjustment,it is help to less spatter and improve welding quality,also the machine can fit more different model of mig wire
8	Output voltage small adjustment.The voltage can be adjusted ±20% when the wanted voltage it does not match the welding wire speed,It helpful to get a perfect welding experience

Packing & Delivery

Selling Units: Single item
Selling package size: 52*34*35 cm
Selling gross weight: 17.000kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Warranty：1 year
Certification：CE
Power(W)：6.5KVA
Voltage：230V±15%
Usage：MIG MAG and MMA welding
Weight：16.5KGS
Dimensions：48*29*30cm
Wire Feeding Speed：15m/min
Model Number：MIG200
Brand Name：DANCY
Place of Origin：Zhejiang, China
Condition：New

1. Advanced IGBT Inverter Technology: The welding machine rectifies AC input current to direct current, and then uses powerful IGBT system invert direct current to high frequency Ac current for reducing voltage. It helps to improve the efficiency and reliability of welding art.
2. Energy Efficient Design: Compared to traditional welders, this welder with flux-cored wire reduces the reliance on electrical components. This mig gas and gasless welder with high efficiency is easy to strike an arc with little spatter and stable current. It is specially designed for welding carbon steel.

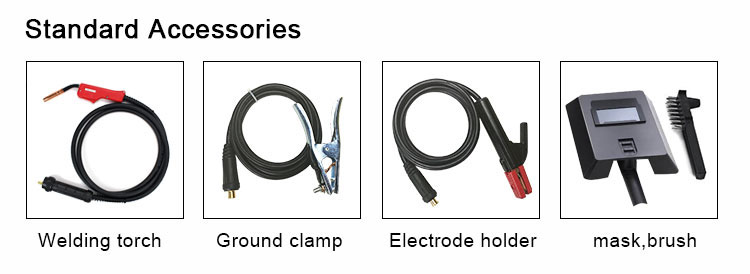

3. Wide Application & Sweet Accessories: Lightweight welding machine with a portable handle makes it easy for transportation and storage. Besides, including a MIG torch, a brush, an earth clamp, a welding helmet can meet all needs of home repair work.
