Specification
MODEL | MMA 280 (output 180A) |
POWER VOLTAGE(V) | SINGLE-PHASE AC 220V+ 15% |
FREQUENCY(HZ) | 50/60 |
RATED INPUT CURRENT(A) | 23.2 |
NO-LOAD VOLTAGE(V) | 70 |
OUTPUT CURRENT(A) | 20-180 |
RATED OUTPUT VOLTAGE(V) | 28 |
FORCE RANGE | 0-10 |
DUTY CYCLE(%) | 60 |
NO-LOAD LOSS(W) | 40 |
EFFICIENCY(%) | 85 |
POWER FACTOR | 0.93 |
INSULATION GRADE | F |
HOUSING GRADE/PROTECTION GRADE | IP21 |
WEIGHT(KG) | 6.0 |
CASE SIZE(MM) | 390×150×232 |
Product Description

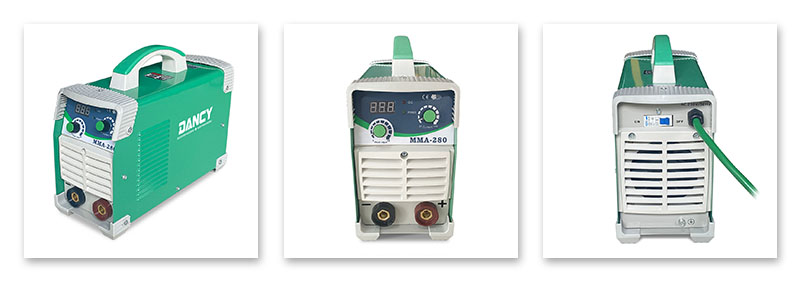

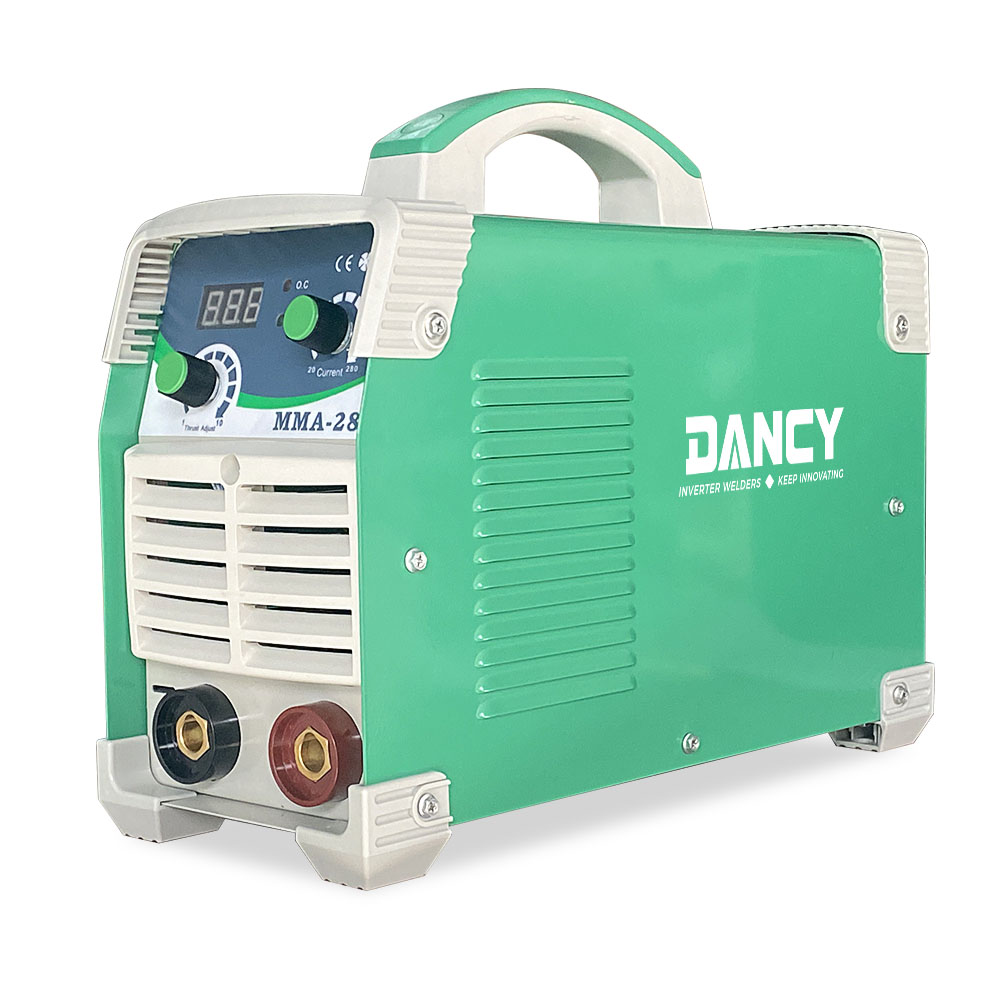

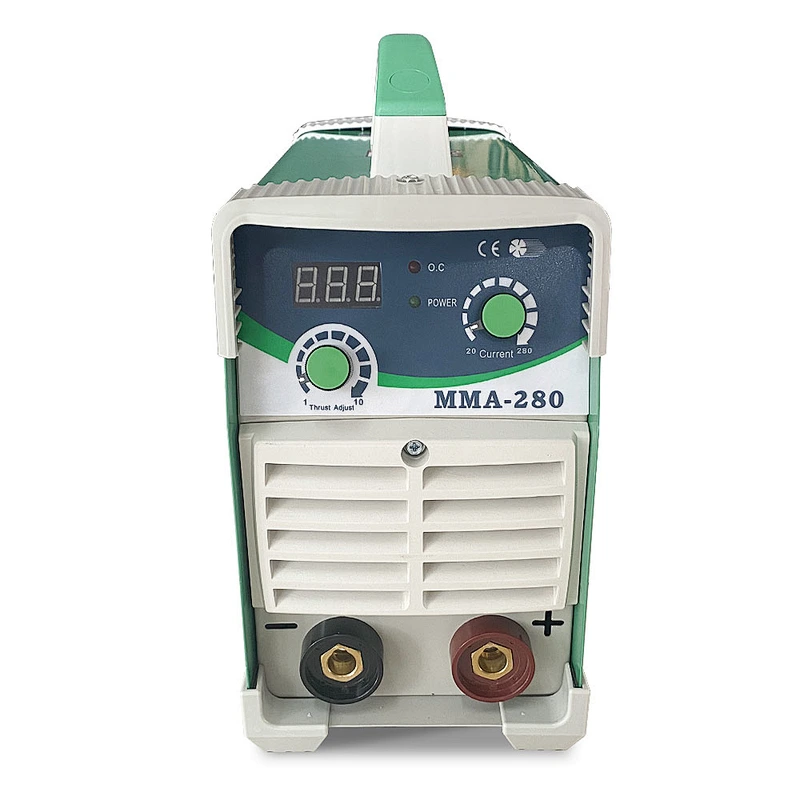

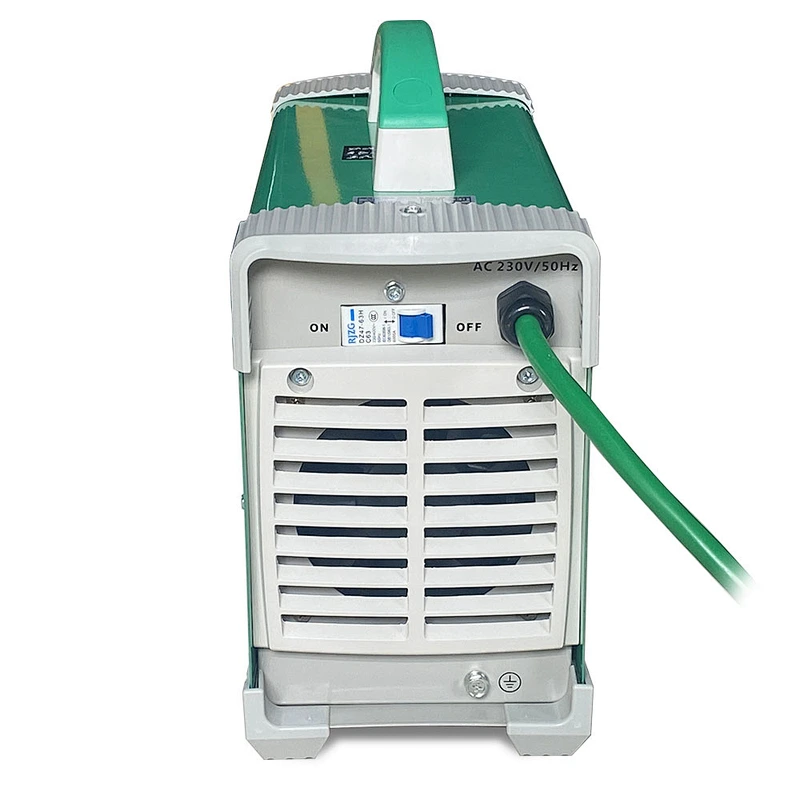

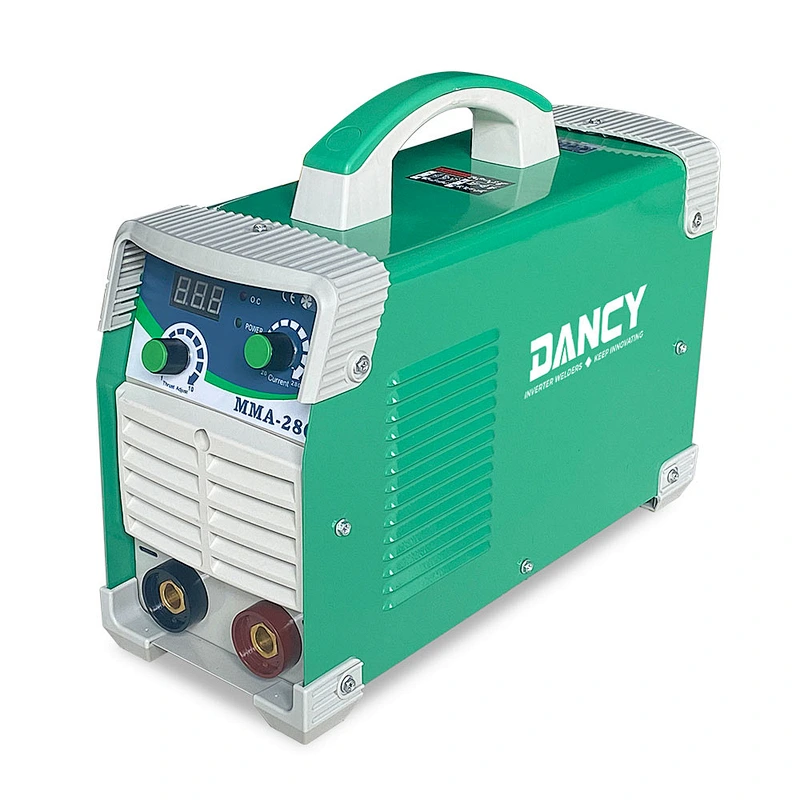

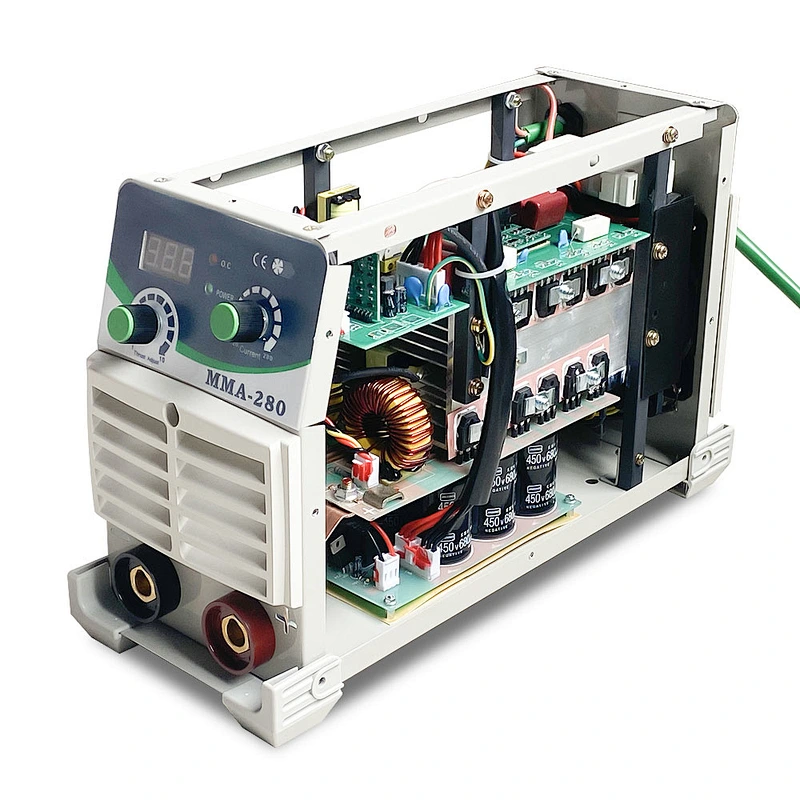

Inverter MMA 180A arc welder MOSFET welding machine very stable arc output
DANCY inverter arc welder 180A MOSFET technology stick welder equipment,it is designed with arc force ,anti stick,hot start which helps easily arc strick and stable output
Features:
1. Anti stick,easy for operation.
2.Stable welding crurent output
3.Arc force ,easy to get good welding result.
4.Hot Start,easy to get arc strick
5.Digital Control
6.Easy and convenience operation even for new-level welder men
7.Available power capacity:180A

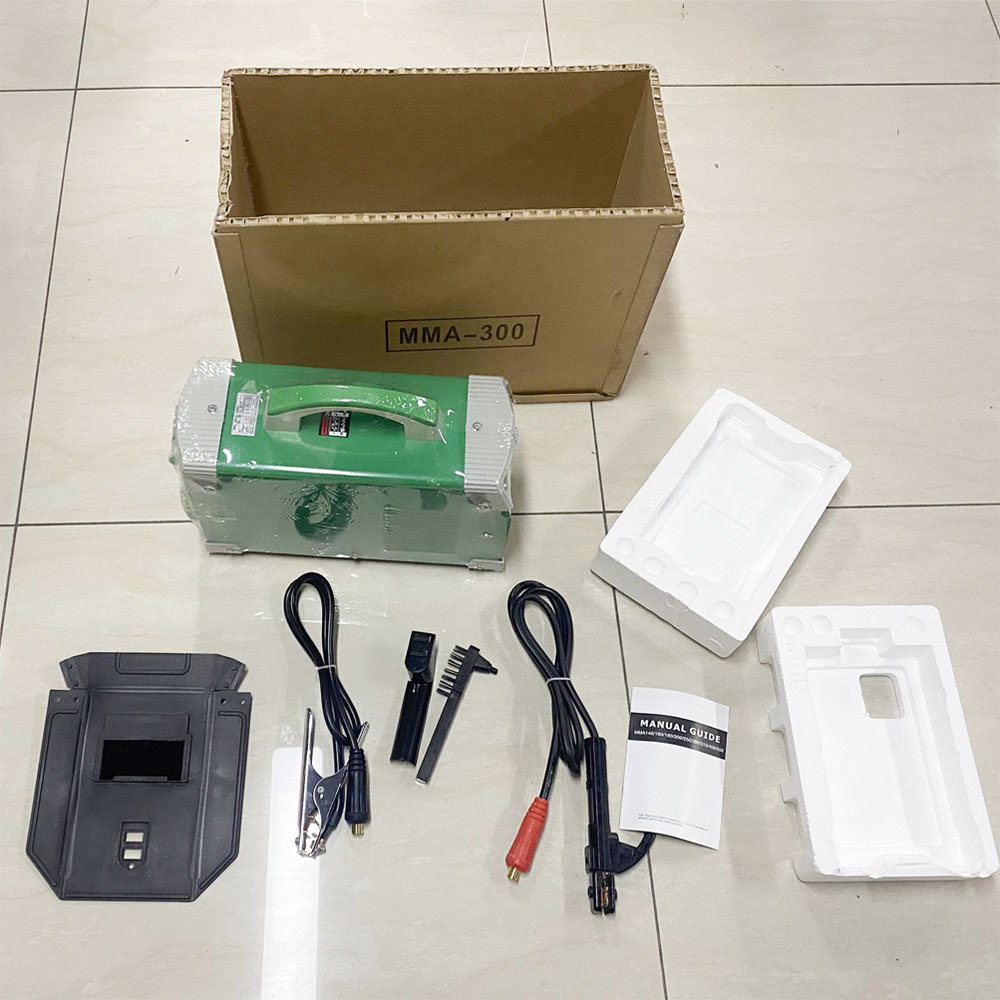

Packing & Delivery
Selling Units: Single item
Selling package size: 54x25x40.5cm
Selling gross weight: 10.00kg
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
