Model NO.
CUT120(Code.202187-1)
Delivery
FOB/FCA/FOB
Minimum order quantity
2 pieces
Supply Ability
2000 pieces / Day
Country of Origin
CHINA
Stock Time
5-35 Days
It adopts IGBT inverter technology, features with current control, high quality and stable performance.
Multi-protection in One Cutter: With the protection of the electric circuit against over currents, over voltages and low voltages, the cutting welder works in a more safer and professional way.
Quantity:

Welding equipment supplier


Video Description


Specification

LGK120Specification
Applicable IndustriesBuilding Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty ServiceVideo technical support, Online support, Spare parts
Free spare parts, Online support, Video technical support
Key Selling PointsEast to operate
Power (kW)17.0KW
Weight (KG)32KG
Input Voltage380V±15%,50/60Hz
Rated Current120A
Unload voltage300V
Rated input current120A
Rated output voltage128V
Dimensions58.5x30.5x60.0cm
ApplicationMetal Cutting
Max cut thickness0.3-40mm
Quality cut thickness35mm
Output current range20A-120A
Gas SupplyPure Air
Air pressure0.4-0.6MPa
Rated duty cycle120A@50 %@40°C
Plasma cutter seriesCUT40,CUT60,CUT80,CUT100,CUT120


Product Description

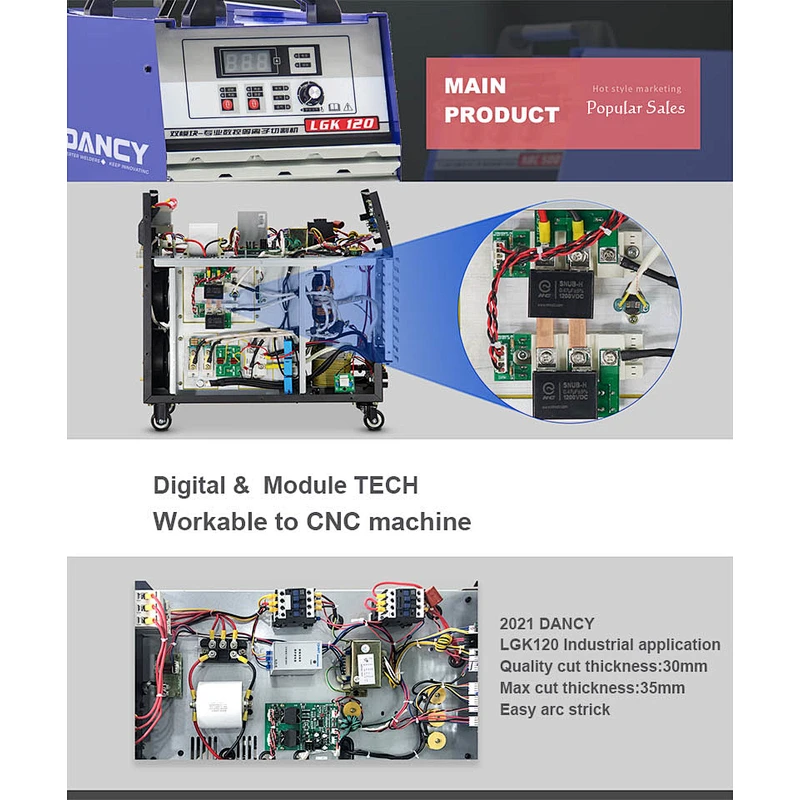

CNC Plasma cutting machiner LGK120 max cut thickness 35mm industry application

• Latest IGBT Inverter Technology
• CNC Connection
• Safe Euro torch connection
• Industrial application
• Tolerant to variable power supply
• Suitable to cut all conductive materials
• Light weight and compact
• Strong metal housing
• Generator use with pure sine wave generator only

cut120

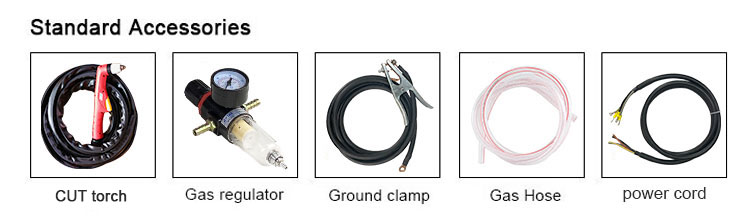

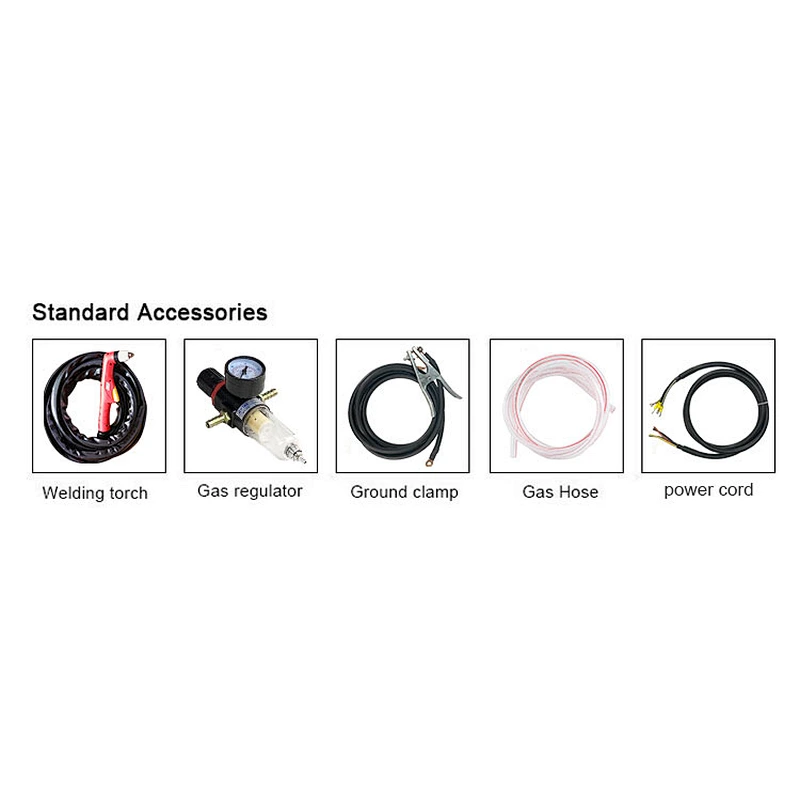

lgk120 accessories

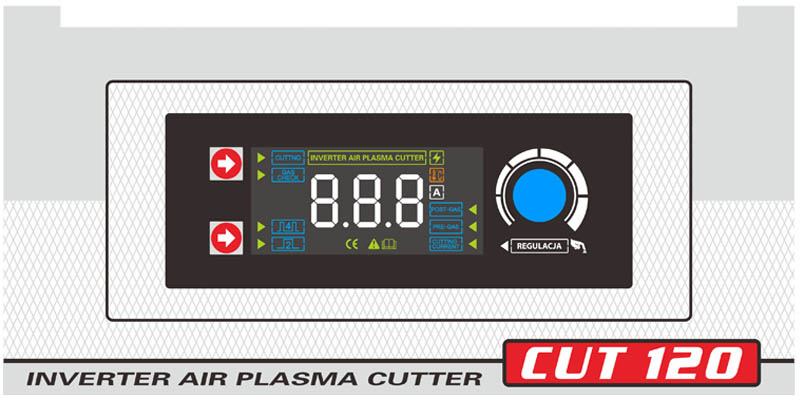

plasma cutters display
cutters

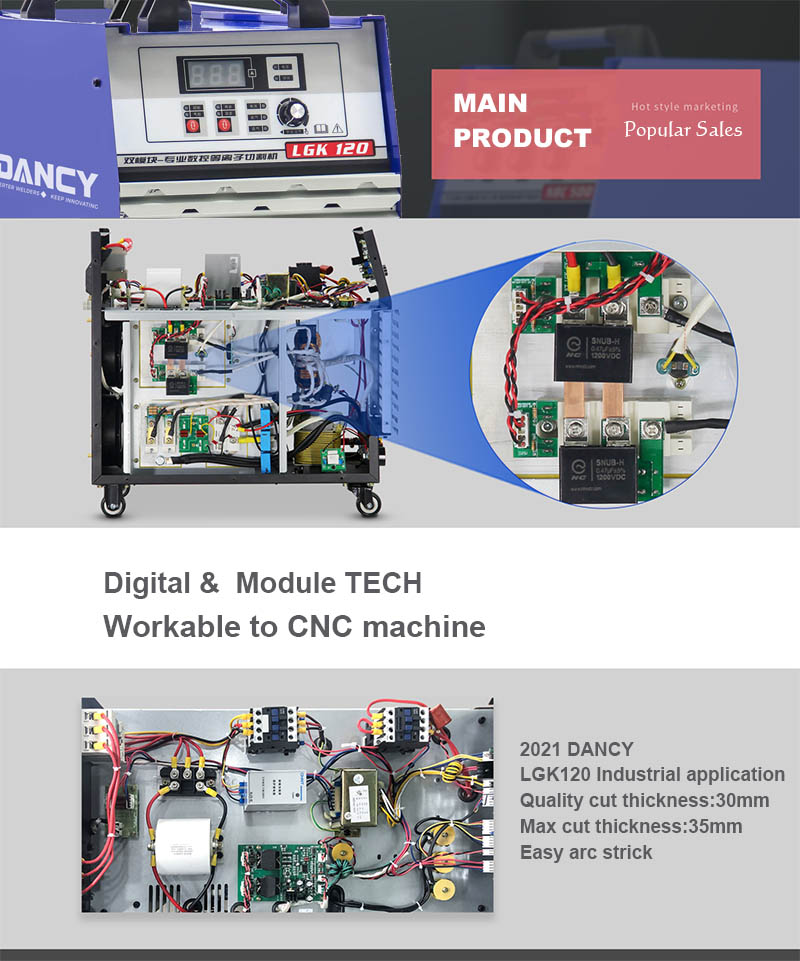

cnc cutting machine


Packing & Delivery

Selling Units:                          Single item
Selling package size:             59X33X63 cm
Selling gross weight:              35.000  kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
  • Certification：CE
  • Usage：Metal Cutting
  • Dimensions：58.5x30.5x60.0cm
  • Power(W)：20000
  • Rated Current：120A
  • Input Voltage：380V
  • Model Number：CUT120
  • Brand Name：DANCY
  • Place of Origin：ZHE
  • Condition：New

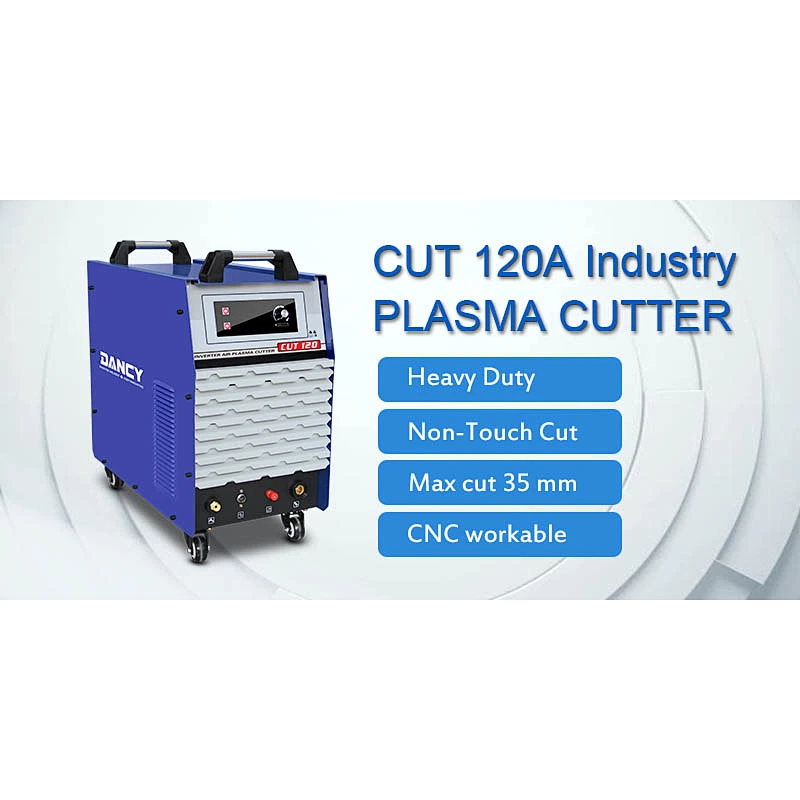

- The Cut 120 exhibits maximum cutting ability with a full 120 amps of power,non-touch cutting!
- It cut any material for on demand manufacturing of custom parts.
-High duty cycle 120A@40%
-Capable of clean cutting 30mm and severing 35mm
-Easy to move with wheels
