Specification
CT-312 |
Rated Input Voltage(V) | 230V±15%,50/60Hz |
Rated Input Power | 4.3KVA |
35°C Duty Cycle(%) | 60 |
Insulation Class | F |
Protection Class | IP21S |
Net weight | 9.0kg |
Efficiency(%) | 85% |

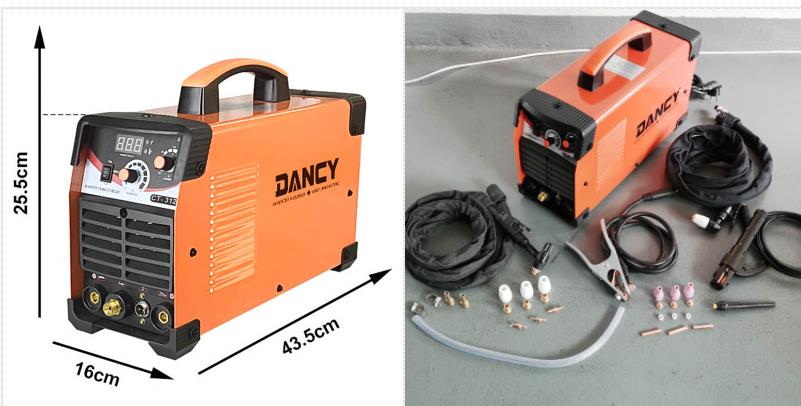

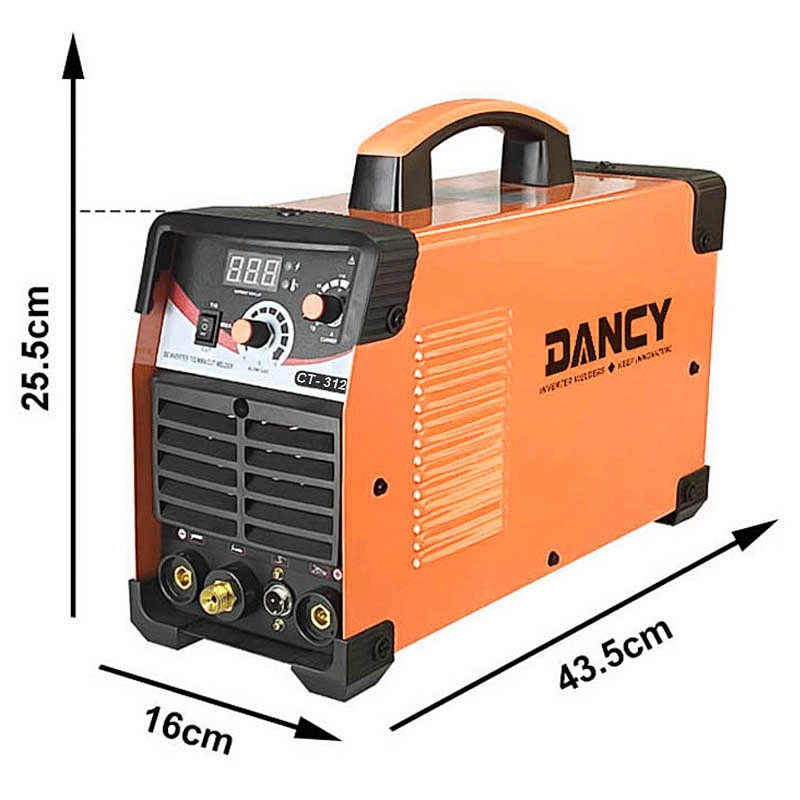

Product dimension(mm) | 44X16X24cm |
Package information(mm) | 54X31X39cm |
Combo Machine | 130A MMA Welder 130A TIG welder 30A Plasma cutter |
Max TIG MMA Severance thickness | 0.5-3.0mm |
Max cut Thicknness | 3.0-8.0mm |
Product Description

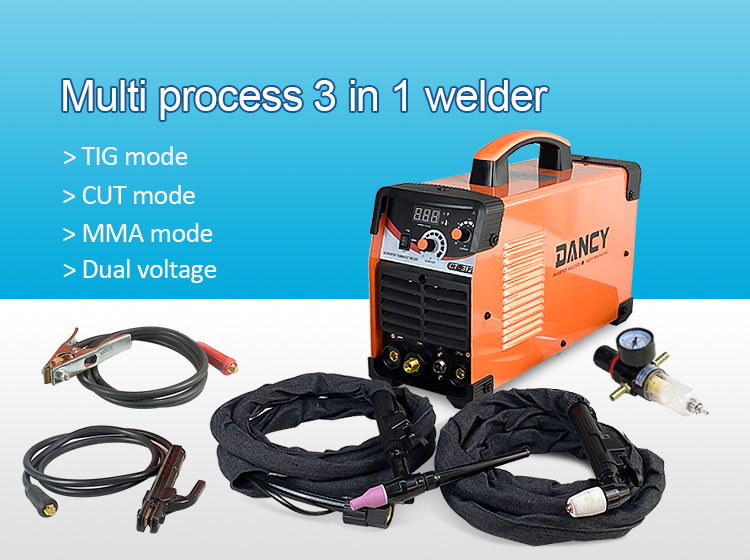

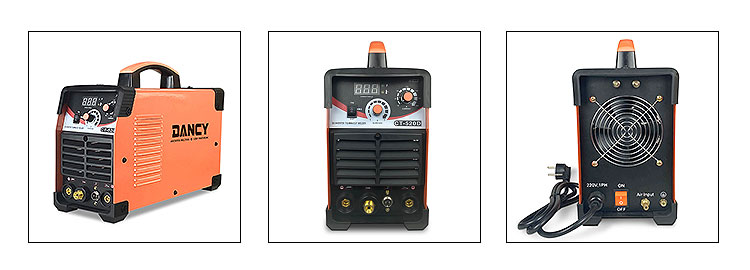

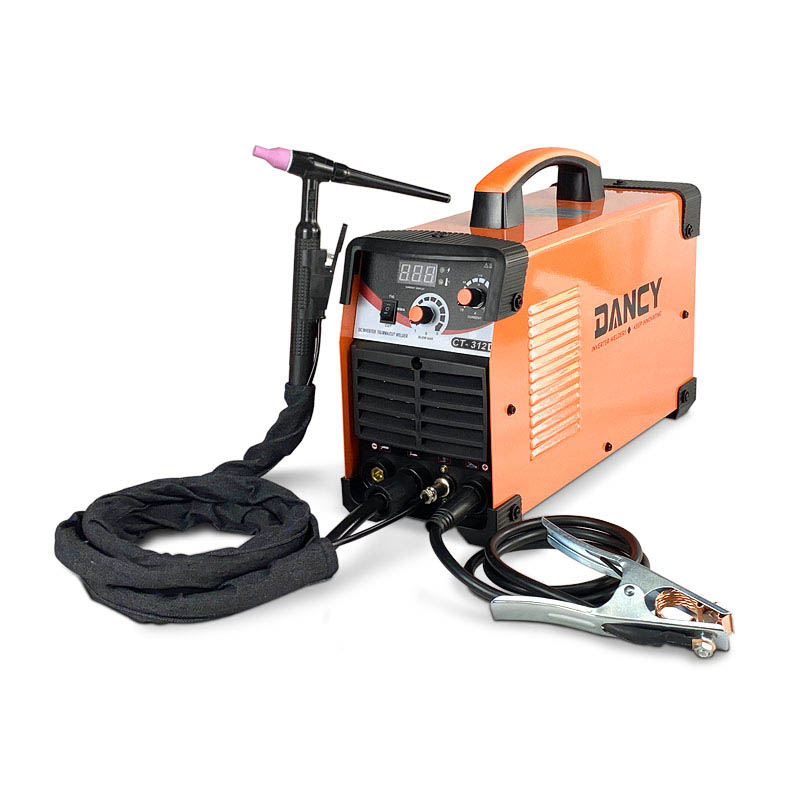

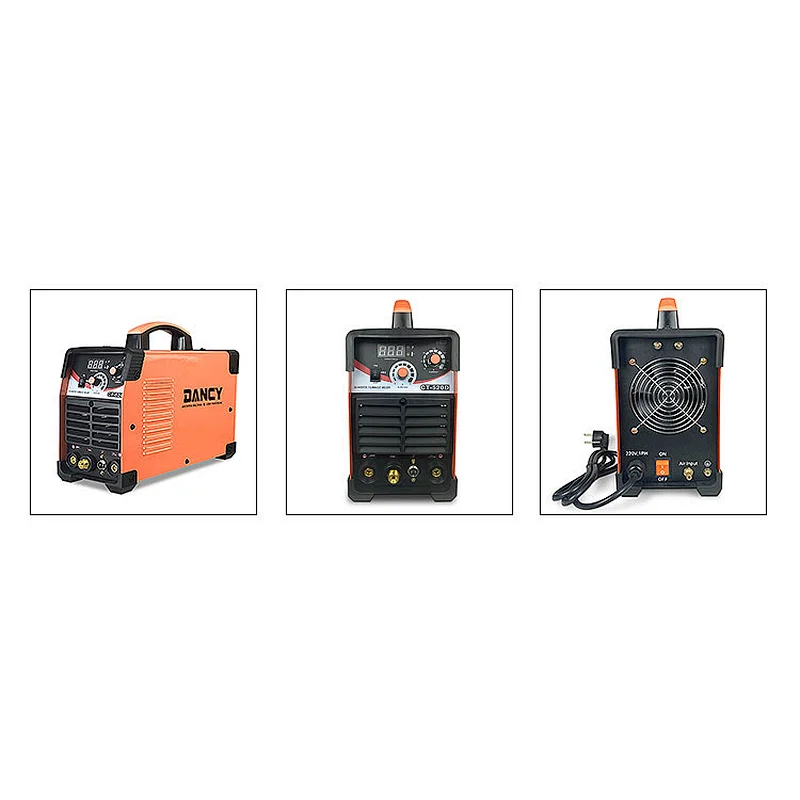

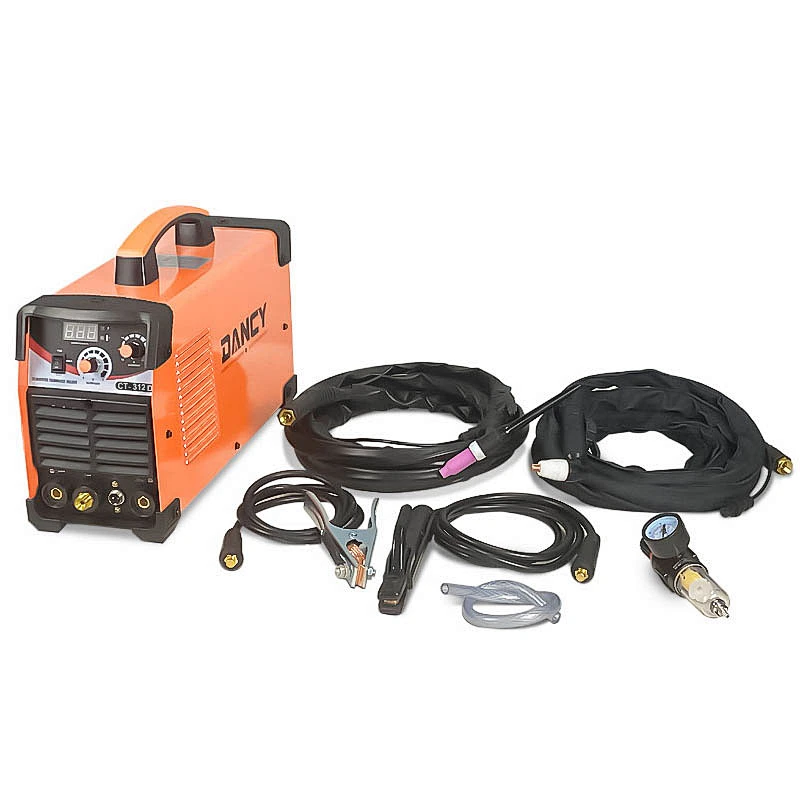

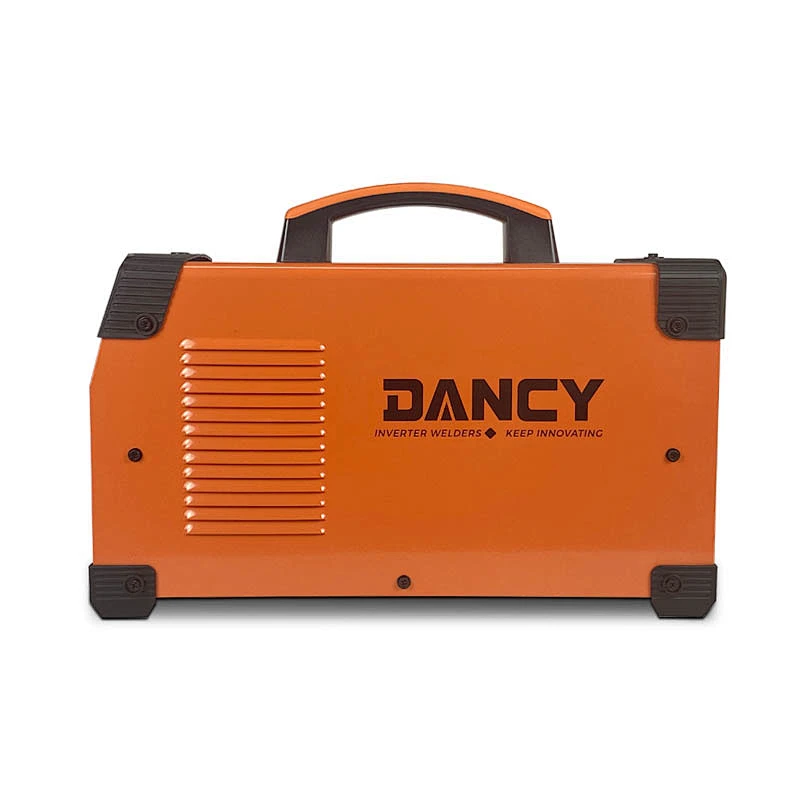

MMA/TIG/CUT Soldar Inverter Mosfet 220V CT312 multifunctional Welder and Plasma Cut Machine
PRODUCT FEATURES
1) Input : dual voltage 220V /110V
2) Automatic dual voltage
3) 30 Amp Digital Inverter Air Plasma Cutter
4) 130Amp Digital Inverter DC TIG Welder
5) 130 Amp Digital Inverter DC ARC (MMA) Welder
6) Integrated Digital Display (NEW FEATURE)
8) Inverter Mosfet technology
9) Air Cooling System
10) Suggested Max MMA TIG Severance Thickness: 3.0MM
11) Suggsted Max Cut Thickness: 8.0MM
Packing & Delivery
Selling Units: Single item
Selling package size: 54X31X39cm
Selling gross weight: 13.500kg
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
- Certification：CE
- Usage：tig welding and manual electrode welding on stainless steel and carbon steel, air plasma cutting on all kinds of metal
- Dimensions：44*16*24cm
- Power(W)：4.3KW
- Rated Current：TIG130A MMA130A Plsam cutter30A
- Input Voltage：220V,220V/110V dual ,One phase
- Model Number：CT-312
- Brand Name：DANCY
- Place of Origin：Zhejiang, China
- Condition：New
This machine is 220V or 220V/110V input,it is according to custoemers' electric power system.
And this multifunction CT312 TIG / MMA / Plasma Cutter Combination Welder, capable of welding up to carbon/stainless steel and aluminum. It can work well with solid wire, it also has the function of TIG torch and STICK can weld carbon and stainless steel perfectly.
TIG welding max thickness 3.0mm
MMA welding max electrode rod size 3.0mm
Plasma Cut : max thickness 8.00mm.
